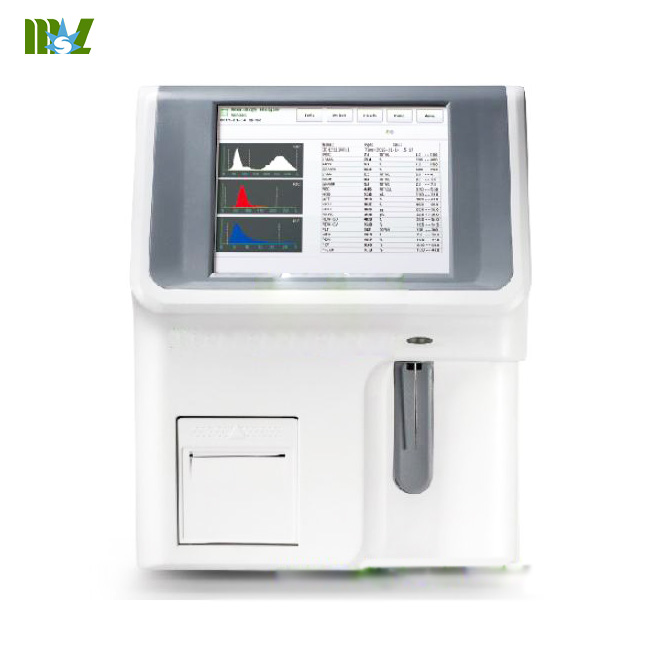

3-Part hematology analyzer MSLAB13

Specifications

Test principle Electrical resistence for counting and Cyanide free method for HGB

Clot clear High voltage burn and high pressure flush

Sample volume Whole blood: 10uL, prediluted: 20uL

Aperture diameter WBC:100 um, RBC, PLT: 70um

Chambers Two chamber

Throughput 60 samples/hour

Language English,Spanish,French and Chinese

Reference range type Newborn、children、male、female and general

Display 10.4 inch color touch screen, show all parameters and histograms

Input and output USB、keyboard、mouse、Parallel Port、RS232 serial port、can be connected to the network by external computer

Working Environment 10℃～35℃; Humidity:≤85% RH

Voltage AC 110V ~ 240V, 50Hz/60 Hz±1Hz,Auto adapt according to the input voltage

Dimension 370mm×435mm×472mm

Net weight 23Kg


Performance

Paramter WBC(109/L) RBC(102/L) HGB(g/L) MCV(FL) PLT(109/L)   Linearity 0.3~～99.9 0.20～8.0 10～250   10～99.9 Precision(CV%) 2.5(7.0～15.0) 2(3.5～6.0) 1.5(110～180) 0.5(80.0～110.0) 5(150～500)

Carry over WBC≤2% HGB≤2% RBC≤1% PLT≤2%


Parameter

WBC HGB MPV

Lymph# HCT PDW

Mid# MCV PCT

Gran# MCH P-LCR

Lymph% MCHC WBC Histogram

Mid% RDW-SD RBC Histogram

Gran% RDW-CV PLT Histogram

RBC PLT
