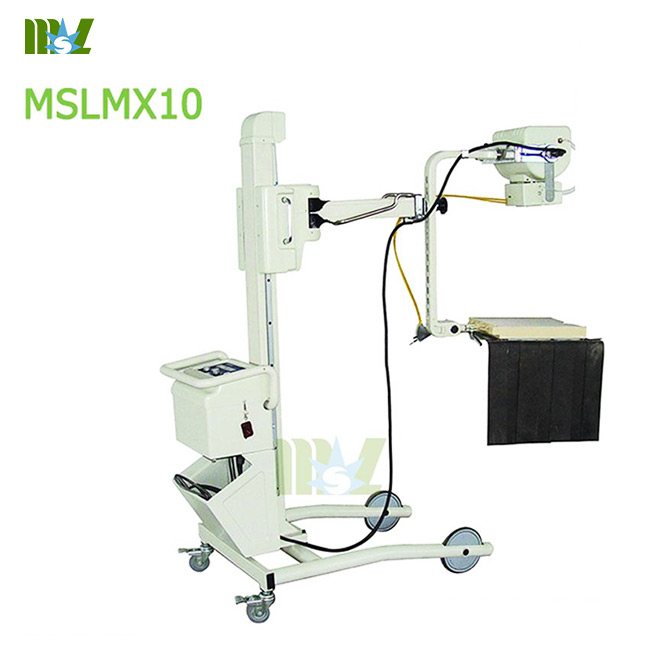

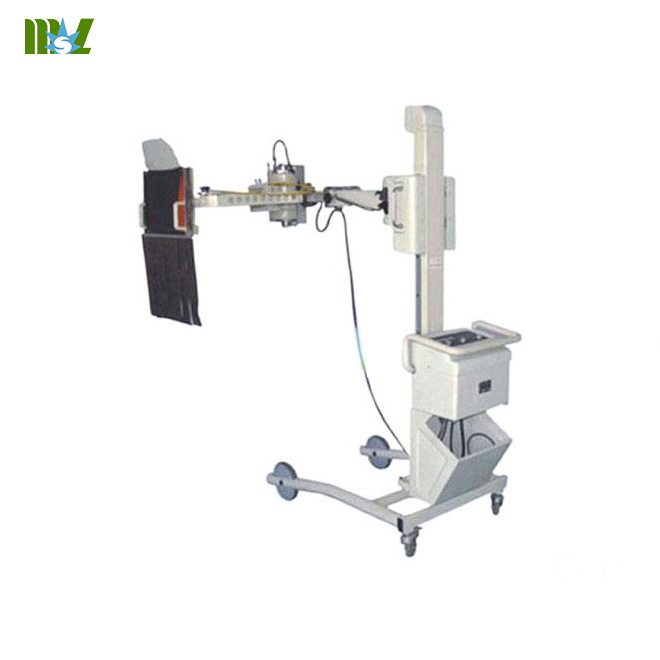

30mA Mobile radiographic x ray unit-MSLMX10

30mA Mobile radiographic x ray unit – MSLMX10

1. conventional X ray Equipment

2. Mobile X Ray Equipment

3. X-ray check for the heads, limb

X-ray tube ( What is an x-ray tube? The construction of x-ray tube ):

1.voltage:90kVp

2.focus:2.3mm*2.3mm

3.length:160mm

radiographic x ray unit MSLMX10 Introduction:

《The introdution of x-ray machine 》- Have you ever heard of the story about the discovery of X-ray? How was X-ray discovered? Could you figure out some uses of X-ray machine?…

1. ATMEL Corporation of the United States used the latest military MEGA16L-class high-performance single-chip as the host to control the core of the main circuit with a zero phase of the silicon-on module; filament loop with automatic voltage regulator modules to control the surge SCR ;

2. With the new liquid crystal display; crystal remote control codes; imported  high-frequency mechanical drive mechanism greatly enhanced intelligence and appearance of the mobile machine.

3. It mainly apply in the emergency rooms, isolation room, wards, operating rooms and so on, it also can be used for conventional X-ray check for the head, limbs, chest easily.

 30mA Mobile radiographic x ray unit MSLMX10 MAIN TECHNICAL PARAMETER

Power Supply voltage 180~240V single-phase

frequence 50Hz

currency Fluoroscopy 3A (continuous)

Radiograph 16A  (momentary)

Power lines internal resistance ≤0.7Ω

Maximum rated capacity 85kVp,30mA

Nominal electric power 3kW

Fluorescent screen size 280mm×350mm

Type of the X-ray tube Model XD1-3/100 stationary anode,  single focus

voltage 90kVp

focus 2.3mm×2.3mm

Filament heating specifications If 4.5A   Uf 7V

length 160mm

Leakage current, grounding resistance, voltage insulation with the standard GB9706 ,1-95

The insulation performance of Transformer oil ,used by the combination head, may not be lower than 2.5mm/25000V

X ray machine packaging picture show
