4D full digital trolly color doppler MSLCU30

4D full digital trolly color doppler MSLCU30 video



MSL 4D full digital trolly color doppler MSLCU30 features:

High gradient band-pass filtering technology

PSHI TM broadband multi-frequency harmonic image

iBeam TM intelligent space imaging technology

Fine tissue optimization imaging technology(FTO,post processing)

iClear intelligent speckle noise restraining technology

Accurate control technology of transmitting(TSF)

iZoom TM undistorted full screen image

Free Xros M

Intelligent built-in workstation system

iRoam TM

iTouch(Preset)

15 inch high resolution medical LED monitor

LED light below the monitor

180 degree rotatable free arm

Compact structure and elegant appearance

180 degree rotatable keyboard

Satellites orbiting type control panel and backlit keyboard design

Built-in floating standard keyboard

Special USB interface design on the left side of control pannel

Tray

Four probe connectors

Based on Window XP system, can upgrade the system according to the customer

Requirement and be compatible with a various of printers

Friendly user’s operation interface

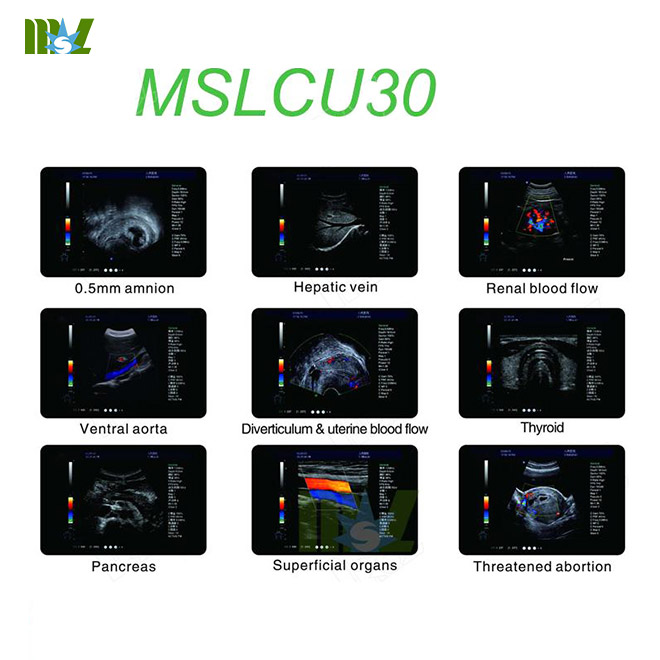

Crystal clear 2D image and sensitive Color Doppler blood flow imaging system

Intelligent one touch optimization and report management

Built-in 500G large capacity hard disc, mass storage

Can be matched with several kinds of probes (such as convex probe, linear probe, transvaginal probe, phased array probe…

Abundant peripheral (Such as USB, DICOM 3.0, VGA…)





4D digital trolly color doppler MSLCU30 Advanced Technology

New Generation Full Gigital Beam Forming Ttechnology

Dynamic Filter,Dynamic Focus in real time

Intelligent Gain Control

Dynamic weighting,Parallel/Serial summation,Multi-beam parallel processing system

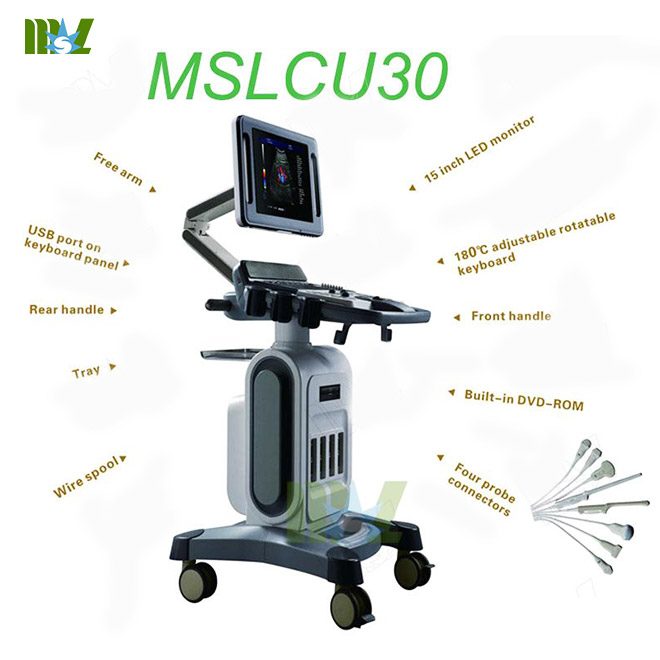

4D color doppler MSLCU30 ergonomic design

4D color doppler MSLCU30 ergonomic design

15 inch high resolution medical LED monitor;

Ergonomic operation interface,180℃ adjustable rotatable keyboard;

Built-in international standard keyboard;

8 segments TGC and encoder realize the accurate adjustment;

USB port on keyboard panel makes it comfortable to use;

Four LED lights at the bottom of LED monitor.

The familiar PC system

free arm with 360 degree rotation and

four probe connectors make the machine operate easily and conveniently.









Best 4D color doppler MSLCU30 Technical specifications:

Displaying mode  B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, duplex, triplex, CFM

Signal processing:  Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields

Image processing:  THI

PSHI TM broadband multi-frequency harmonic image

Speckle-reduction

Power adjustable

Smoothing function

iBeam TM intelligent space image technology

iZoom TM undistorted full screen image

Free Xros M

Engineer control technology with low power consumption

Edge enhancement Image optimizing disposal

One-key optimization

Image conversion

Up/down conversion

Left/right conversion

Intelligent built-in workstation system(Chinese/English)

Doppler Sound output volume adjustable

Wall filter adjustable

Base line adjustable

Sampling frame adjustable

Spectrum sampling volume adjustable

Spectrum sampling volume angle adjustable

PRF adjustable

General measurement B mode-distance, circumference, area, volume, angle, area Red, Diam Red

M mode- distance, time, velocity, heart rate

Abdomen Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen

measurement

OB packages EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.

Gynecological  packages Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth

Urology packages Left/right kidney measurement, Volume, Cortex

Small parts Measurement Left/ right thyroid, volume, Isthnus and calculating report

Cardiac Measurement Package Heart rate, Valve speed, LV, aortic, mitral, ventricular

Skeletal & Muscles Skeletal & Muscles, distance, area, Hip angle

Vascular Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA

Body mark Abdominal , Gynecology, Obstetrics, Small parts

Scanning depth Up to 300mm

Cine loop Automatically & manually, speed control

Image storage format BMP,JPEG,PNG

Image storage size 500G

Input/output ports VGA, USB port, DICOM port(network port)

Standard Configuration Main unit, 15 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, free arm, 4 probe connectors, user’s manual, 500G hard disk, DVD-RW

Option 6.5Mhz transvaginal probe, 19 inch LED monitor , video printer, laser printer, DICOM 3.0, biopsy kit
