4D Wireless Bladder Scanner Wireless Ultrasound Transducer & probe

4D Wireless Probe Bladder Ultrasound Scanner MSLPU37 (supporting apple ios, Android) video

4D wireless bladder scanner MSLPU37 TECHNICAL SPECIFICATION

Scan mode: array probe, 4D scan

Supporting system: Apple iOS, Android

Measuring range: 10ml ~ 2000ml

Scan and process: <2 seconds

Scanned image display frame: 10 frames / seconds

Case Storage: by tablet or mobile phone

Printing: external wireless thermal printer

Battery: Built-in battery, charge one time can work on more than 200 patients

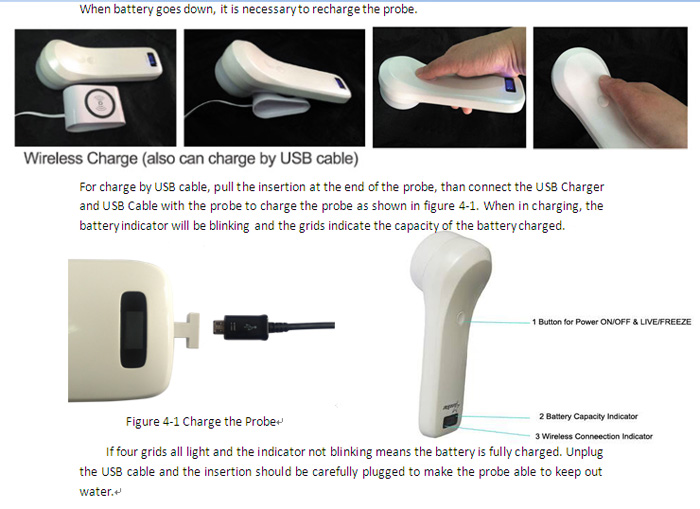

Power: Wireless charge or by USB cable charge

Dimension: 180mm (length) × 60mm (width) × 60mm (thickness)

Weight: 420g

4D wireless bladder scanner MSLPU37 PRODUCT ADVANTAGES

– Only one probe, convenient for carry

– Wireless, convenient for operation

– 4D array scan,  very clear image

– High accurate (5% inaccuracies)

– High speed on scan and process (2s)

– Without distortion of mechanical scanning

– More advanced algorithm, more powerful bladder wall recognition technology(High recognition

  rate for the bladder wall with air), more accurate contour technology, higher accuracy of

  the probe makes scanning results more accurate.

– New algorithm, the measurement results are not subject to the bladder shape and size.

– No need to select Gender, Age group and no need to consider special cases such as the effect of hysterectomy on the measurement results. Good compatibility for different bladders, no ubstantial error when measuring small volume or special shape bladders, easier to operate and use.

– High precision rotary encoder, precise positioning, never need to calibration.

– Waterproof probe

4D wireless bladder scanner MSLPU37 INTENDED USE

It is intended to measure the volume of bladder when it is filled, providing clinical data for judging the opportunity to apply catheterization. It is also intended for evaluation of the residual quality after urination.

4D wireless bladder scanner MSLPU37 Standard Configuration:

It is not suggested to use on a baby or the pregnant.

It cannot be used on wounded skin.

For patients with hypertrophy of the prostate, space occupying disease or scars, there is a risk of producing a result exceeding the given accuracy range.

4D wireless bladder scanner MSLPU37 Optional:

– Tablet, Smart mobile phone

– Bluetooth wireless printer

– Wireless charge pad, Wireless charge  battery bank

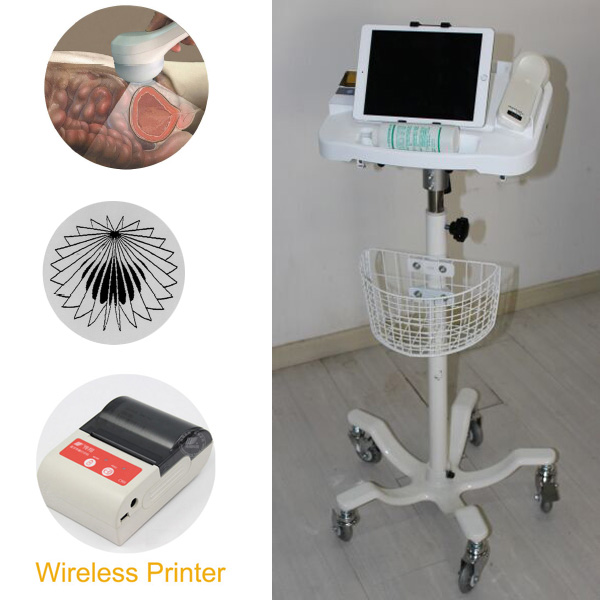

– Trolley and cradle

4D wireless bladder scanner MSLPU37  WORK CONDITIONS

Ambient temperature: 5℃~40℃

Relative Humidity: ≤80%

Air Pressure: 70 kPa – 106 kPa

AC power supply: AC 100-240V;

DC power supply: DC 12V;

Working power: battery-driven

4D wireless bladder scanner MSLPU37  PRODUCT CLASSIFICATION

1. According to Protect against Electric Shock Classification:

Charging: class II

Working: Internal electrical power source.

2. According to Degree of Protection against Electric Shock: B type applied part.

3. According to IPX Classification:

Main unit: IPX0;

Probe head: IPX7;

Probe handle, cable and probe connector: IPX1

4D wireless bladder scanner MSLPU37 Function and Application of bladder scanner:

The bladder scanner is used to non-invasively visualize, monitor and measure urine volume in

the bladder, to determine whether to urinate and the suitable urinary output, and also can used

to prevent inappropriate insertion of the Catheter into the bladder.

It is widely used in urology, rehabilitation, surgical, operation room, and home health care.

Benefits of Bladder Scanning:

 Measures bladder volume and Post Voiding Residual (PVR)

 Prevents unnecessary catheterization and patient discomfort

 Reduces Catheter Associated Urinary Tract Infection (CAUTI)

 Monitors bladder non-invasively to prevent urinary retention

 Monitors post-operative recovery

 Reduces hospital costs (disposables)

 Promotes staff efficiency and requires little training.

Widely used in hospital:

 Surgery, hocus section, ICU, urine section, women and lay section, orthopedics, nerve medicine,

 child section, healing section.

Latent application area:

 Appertain area, Uric incontinence guide, SCI/MS, Mentality healing institution, Resthome.

Family tend:

 SCI/MS, Community medical center, Family and community doctor.
