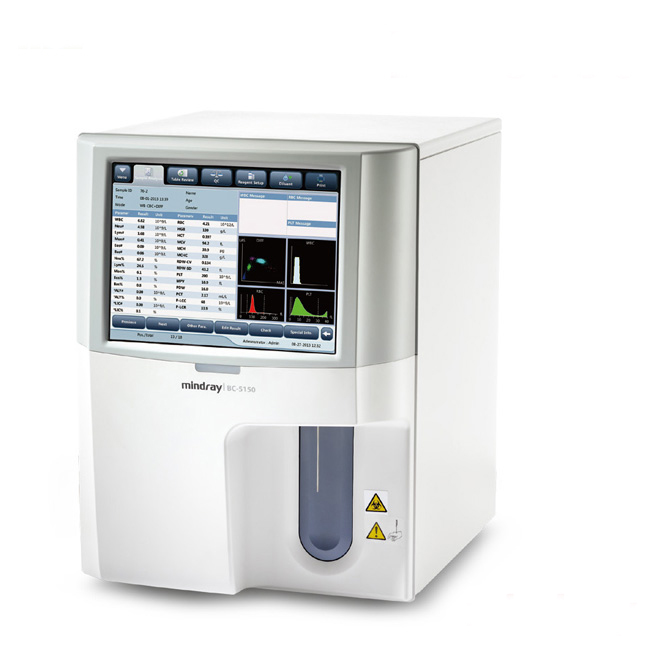

5-part differentiation Mindray BC 5150 price
BC-5150
Auto Hematology Analyzer
Technical Specifications
Principles
Impedance method for RBC and PLT counting
Cyanide free reagent for hemoglobin test
Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical dye
Parameters
25 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#,
Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC,
RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC.
4 research parameters including LIC%, LIC#, ALY%, ALY#
3 histograms for WBC, RBC and PLT
Reagent

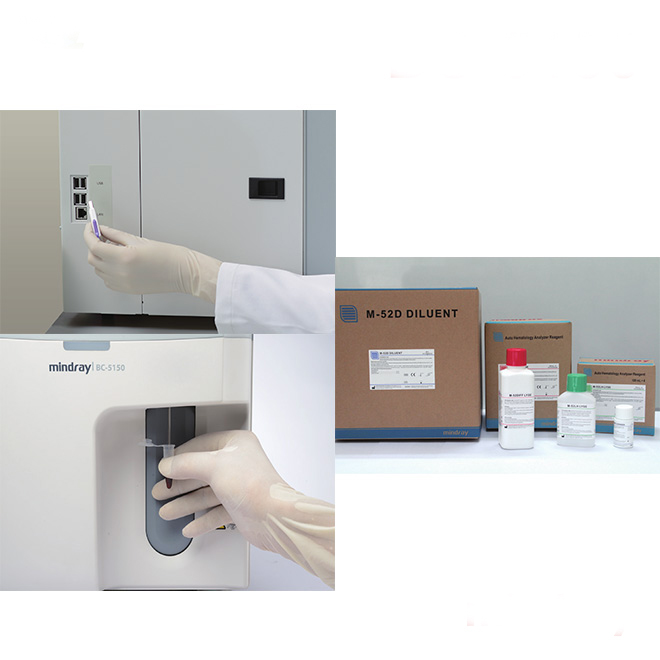

M-52D Diluent, M-52DIFF Lyse, M-52LH Lyse, Probe Cleanser
Performance
Parameter Linearity Range Precision Carryover
WBC 0-500×10 9 /L ≤2% (4-15×10 9 /L) ≤0.5％
RBC 0-8×1012/L ≤1.5% (3.5-6.0×1012/L) ≤0.5％
HGB 0-250g/L ≤1.5% (110-180g/L) ≤0.6％
PLT 0-5000×10 9 /L ≤6.0% (100-149×10 9 /L) ≤1.0％
≤4.0% (150-500×10 9 /L)
Sample Volume
Prediluted mode 20 μL
Whole blood mode 15 μL
Capillary whole blood mode 15 μL
Throughput
60 samples per hour
Display
10.4 inch TFT Touch Screen
5-part differentiation Mindray BC 5150 price
Multi-language
Chinese, English, Spanish, Portuguese, Russian, French,
Bahasa Indonesia
Data Storage Capacity
Up to 40,000 results including numeric and graphical
information
Communication
LAN port supports HL7 protocol
Interface
USB, LAN
Support bi-directional LIS
Printout
External Thermal printer / Laser printer / Inkjet printer, various
Operating Environment
Temperature: 10°C~30°C
Humidity: 20%~85%
Air pressure：70 kPa~106 kPa
Power requirement
100V-240V
50Hz/60Hz
Dimension and Weight
Depth(400 mm) x width(320 mm) x height(410 mm)
Weight :24kg
