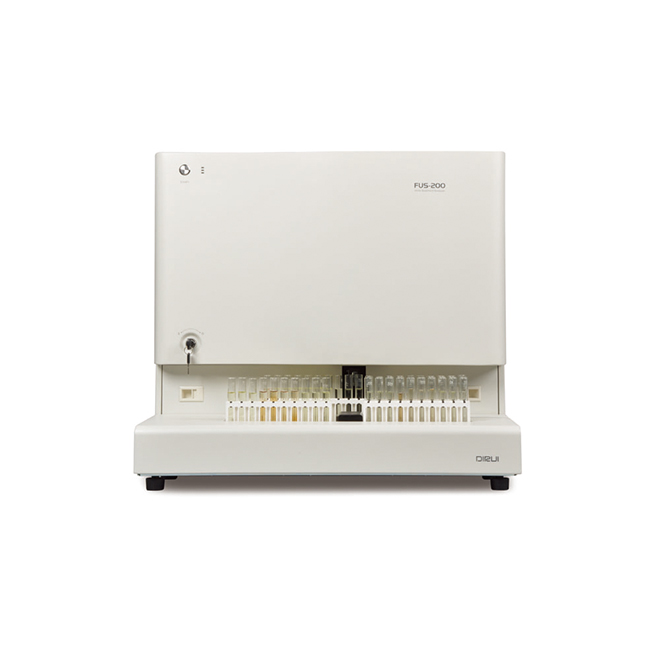

Urine Sediment Analyzer FUS-200 Specification and Technical Parameter:
Item:Red blood cell, white blood cell squamous epithelial cell, non-squamous epithelial cell,transparent casts,unclassified casts, mucus, bacteria, yeast, white blood cell group, sperm,etc.
Throughput:120 samples/h
Test Principle:Flow cytometry;High-speed,High-depth of Field Imaging Technique
Classification:Artificial intelligence identification technique
Image Capture Capacity:650 frames/sample
Auto loader Capacity:50 samples
Sample Volume:Minimum volume: 3ml non-centrifugal urine (Integrated system minimum volume:5ml non-centrifugal urine);aspiration volume:about 1ml
Workstation:Quad-core processor,Windows operating system,Bidirectional to LIS/HIS.
Data Storage:Storage capacity ≥10,000
Connecting:Available for connecting with DIRUIH-800 Automatic Urine Analyzer.Consolidated results printing.
Dimension:700mm×720mm×640mm(FUS-200 with auto loader-expansion kit)
Equipment Parameter:
Parameter:Technical requirement
Maximum Relative Deviation of the Result Accuracy:±8.0%
Repeatability of the Test Items:CV≤10%
Total Specificity (Automatic ldentification):>80%
Total Specificity(Manual Verification):≥95%
Normal Working Condition:
Supply Voltage:AC100V240V,50/60 Hz
Environmental Temperature:10℃-30℃
Relative Humidity:20%-80%
Atmospheric Pressure:860hPa~1060hPa
Features:
1.Throughput:120 T/H
2.Provide useful information—RBC morphological information for the diagnosis and treatment of renal diseases
3.Provide standardized urinalysis testing solution
4.Without centrifugation and stains,contributing to cost-effective
5.User-friendly design,simple operation and convenient maintenance
6.Two-level quality control,consistent with international standard
