Auto Hematology Analyzer Mindray BC 20S price list

Auto Hematology Analyzer Mindray BC-20S Features

· CBC+3-DIFF, 19parameters+3histograms

· Throughput:40 samples per hour

· Intuitive operation systemwith 8.4 inch TFT touch screen

· Open vial sampling

· 200,000 results storage with histograms

· Original QC, calibrators and reagents

BC-20s

Auto Hematology Analyzer

Technical Specifications

Principles

Impedance method for WBC, RBC and PLT counting

Cyanide free reagent for hemoglobin test

Performance

Parameter Linearity Range Precision (CV %) Carryover

WBC(10 9 /L) 0-100 ≤3.5% (4.0-6.9) ≤0.5％

≤2.0% (7.0-15.0)

RBC(10 12 /L) 0-8.00 ≤1.5% (3.5-6.5) ≤0.5％

HGB(g/L) 0-280 ≤1.5% (100-180) ≤0.5％

MCV(fL) ≤1.0% (70-110)

PLT(10 9 /L) 0-1000 ≤5.0% (100-149) ≤1.0％

≤4.0% (150-500)

Parameters

19 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC,

HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT

3 histograms for WBC, RBC and PLT

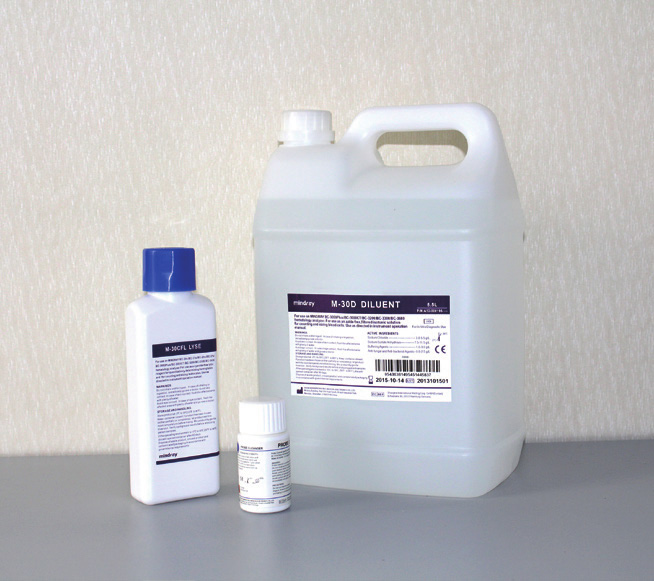

Reagent

M-30D DILUENT

M-30CFL LYSE

PROBE CLEANSER

Sample Volume

Prediluted mode 20μL

Whole blood mode 9 μL

Throughput

40 samples per hour

Display

8.4 inch TFT Touch Screen

Multi-language

Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia

Data Storage Capacity

Up to 200,000 results including numeric and graphical information

Communication

LAN Port supports HL7 protocol

Support bi-directional LIS

Interface

4 USB port (for external printer, software upgrade, barcode reader,

WIFI adapter,keyboard and mouse), LAN port (1)

Printout

Thermal recorder, 50 mm wide paper, various printouts formats

External printer optional

Operating Environment

Temperature: 10°C~40°C

Humidity: 10%~90%

Air pressure: 70kPa～106kPa

Power Requirement

100V-240V

≤300VA

50Hz/60Hz

Dimension and Weight

Dimension: Depth(410 mm) x width(300 mm) x height(400 mm)

Weight: ≤20Kg

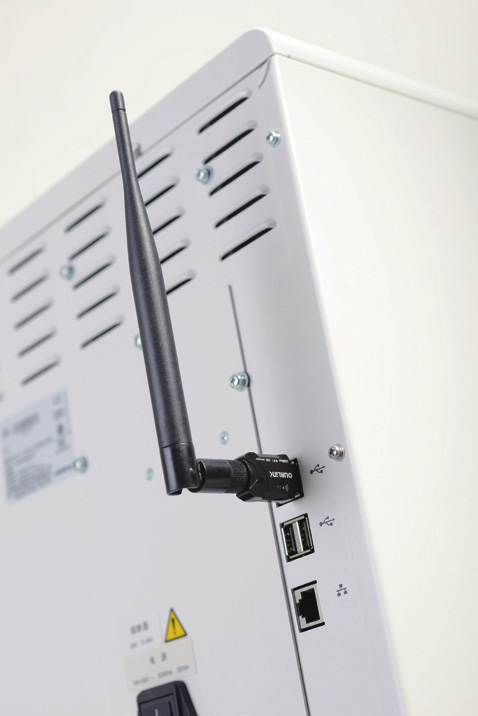

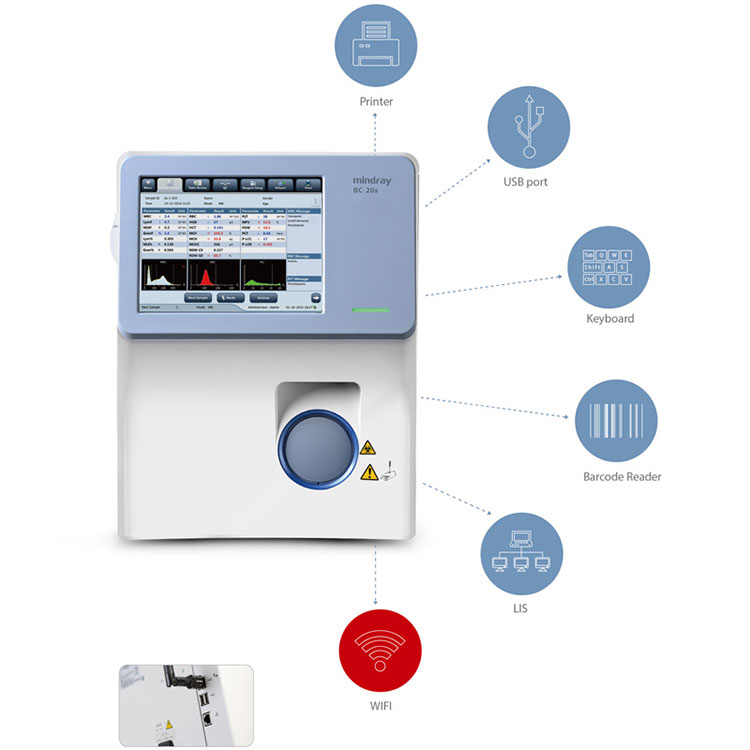

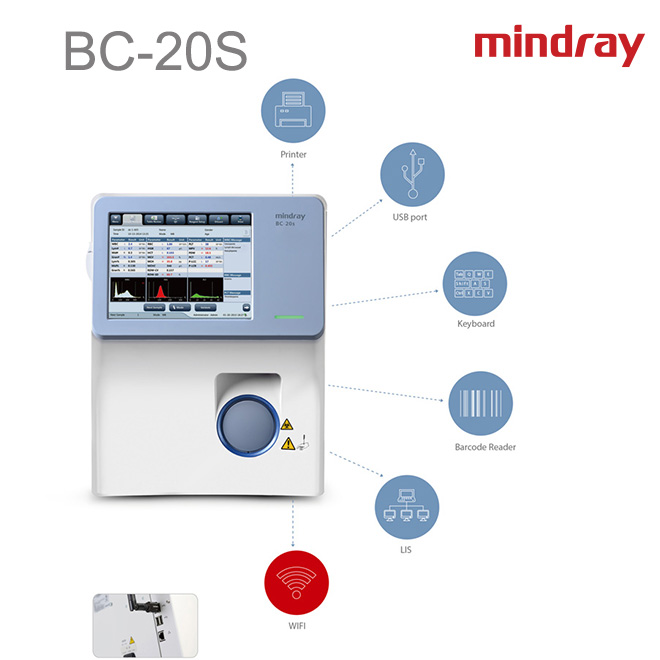

WIFI capability provides you an added

option for data communication together

with bi-directional LIS, USB port and LAN

port, barcode reader, printer and keyboard.

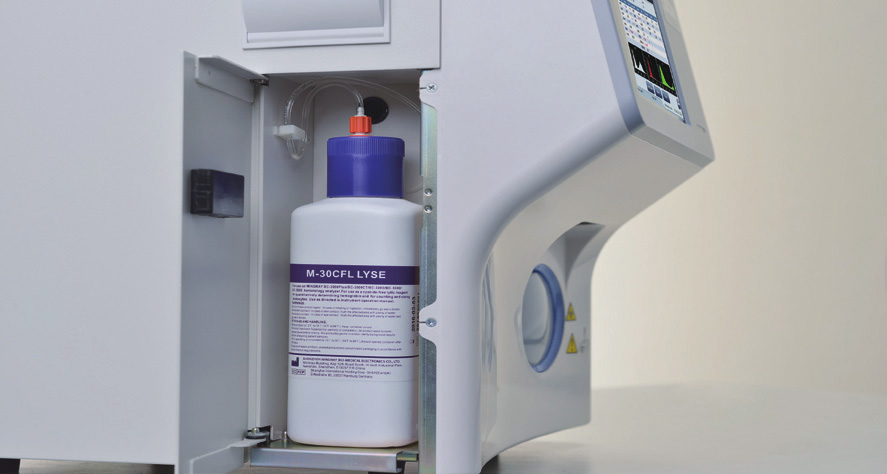

Minimum size with the footprint similar to that of a 17 inch laptop, with space

saving design that allows internal storage of lyse giving small labs more space.

8.4 inch TFT touch screen together with our powerful software enhances user

operations and experience.

New technology that eliminates the need for cleanser and rinse, reducing the

number of reagents needed while at the same time lowering overall reagent con-

sumption.

Flexible packaging of reagents, with normal and small sizes to better cater to the

needs of diferent daily sample volumes.
