Muculoskeletal, Vascular, Urology, Cardiology
Features and Benefits
Innovative Technologies
Dynamic Frequency Scanning
Improves image uniformity and penetration
Real-time Dynamic aperture
For excellent contrast and detail resolution
Multi-beam technology
Provides high frame-rates
Tissue Harmonic Imaging
Reduces noise and clutter
User-friendly Workflow
Intuitive control panel reduces learning curve
Multi-frequency Transducer Technology
Multiple 2-D frequencies increases transducer utility
Supported Applications
Abdomen, Obstetrics, Gynecology, Endovaginal, Small Parts, Muculoskeletal,
Vascular, Urology, Cardiology
Compact, Lightweight Design

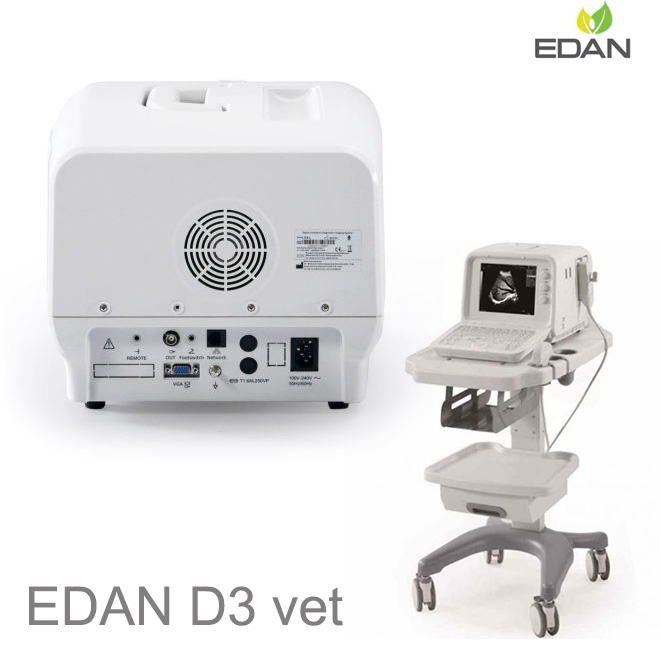

Multiple peripheral port

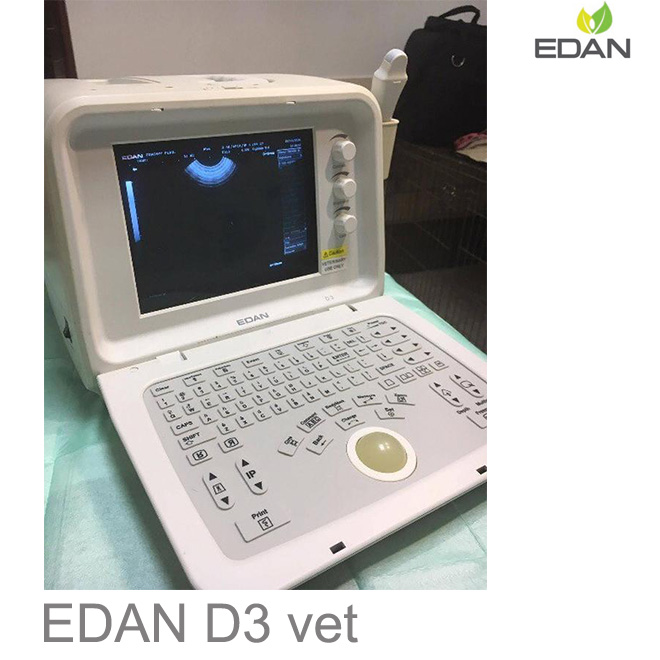

Back-lit keyboard design

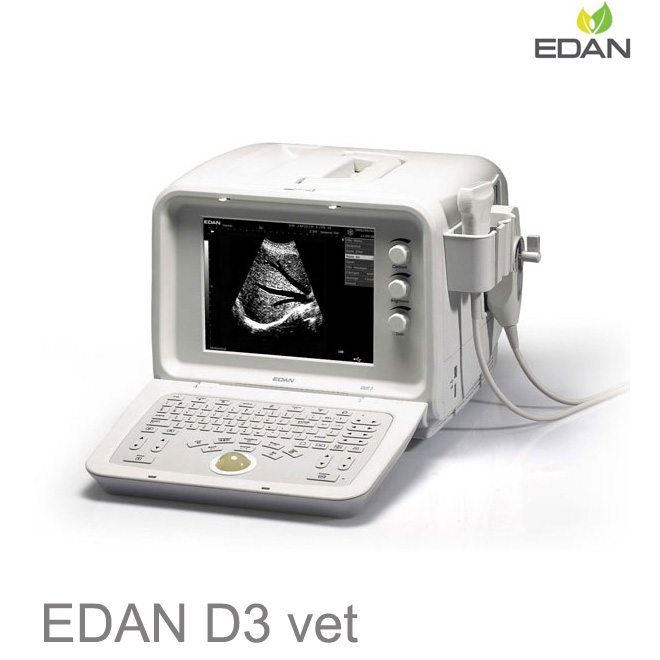

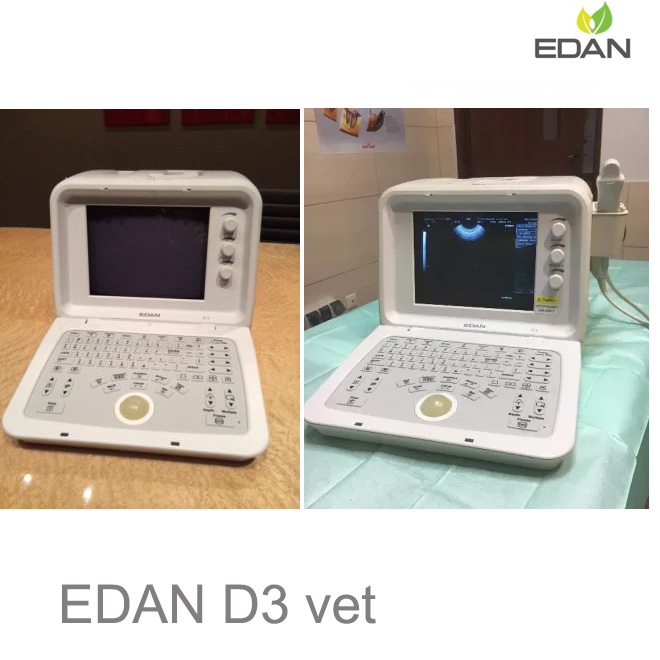

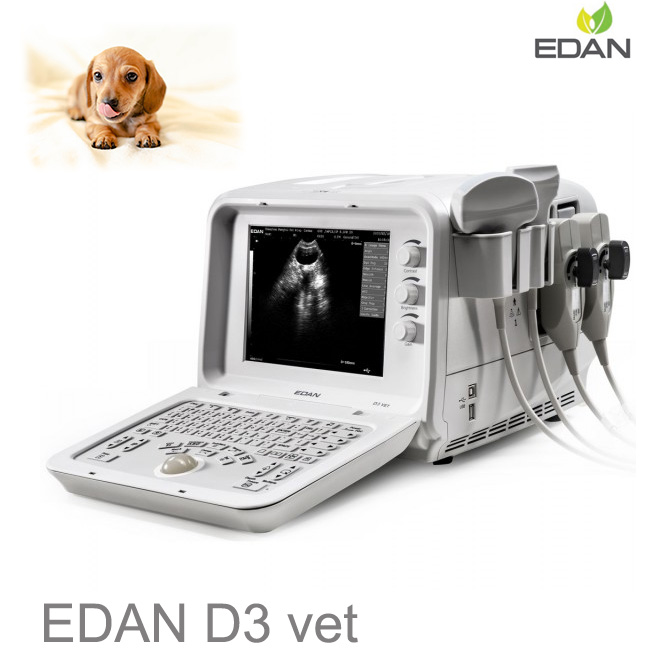

veterinary abdominal ultrasound EDAN D3 VET Features
10″ High resolution non-interlace monitor
One transducer connector as standard
80 elements transducer
204-frame cine loop memory
128-frame built-in image storage
Measurement & calculation software package
Two USB ports
veterinary abdominal ultrasound EDAN D3 VET Specifications
Operating Frequency: 50 Hz/60 Hz
Input Power: 110 VA
Main unit dimensions: 353 mm (W) × 315 mm (L) × 253 mm (H)
Packaging dimensions: 500 mm (W) × 460 mm (L) × 465 mm (H)
Net weight: 11.5 kg
Monitor: 10-inch non-interlaced progressive scanning black and white monitor
Resolution: 800×575 pixels
Display Modes: B, B+B, 4B, B+M, and M
Image Gray Scale: 256 levels
Image Magnification: Real time: 100%, 144%, 196%, 256%, 400%, 576%, 900%,1600%
Frozen (In B mode Only): 100%, 178%, 400%, 1600%
Storage: 56 MB
Depth Shift: B, B+B, 4B, B+M, M-modes in real time, in increments of 10 mm
Frame Correlation: 8 levels to adjust (0~7), (B, B+B, 4B, B+M-modes, ineffective
when freezing)
Image Conversion: Up/Down flip, Left/Right flip, 90°Rotate.
Focus position: 16 levels to adjust
Focus number: Maximum 4
B-mode Measurement: Distance, circumference, area, volume, ratio, % stenosis,
histogram and angle
M-mode Measurement: Distance, time, slope, heart rate (2 cycles)
Body Mark: 130 types
USB port: USB 1.1
