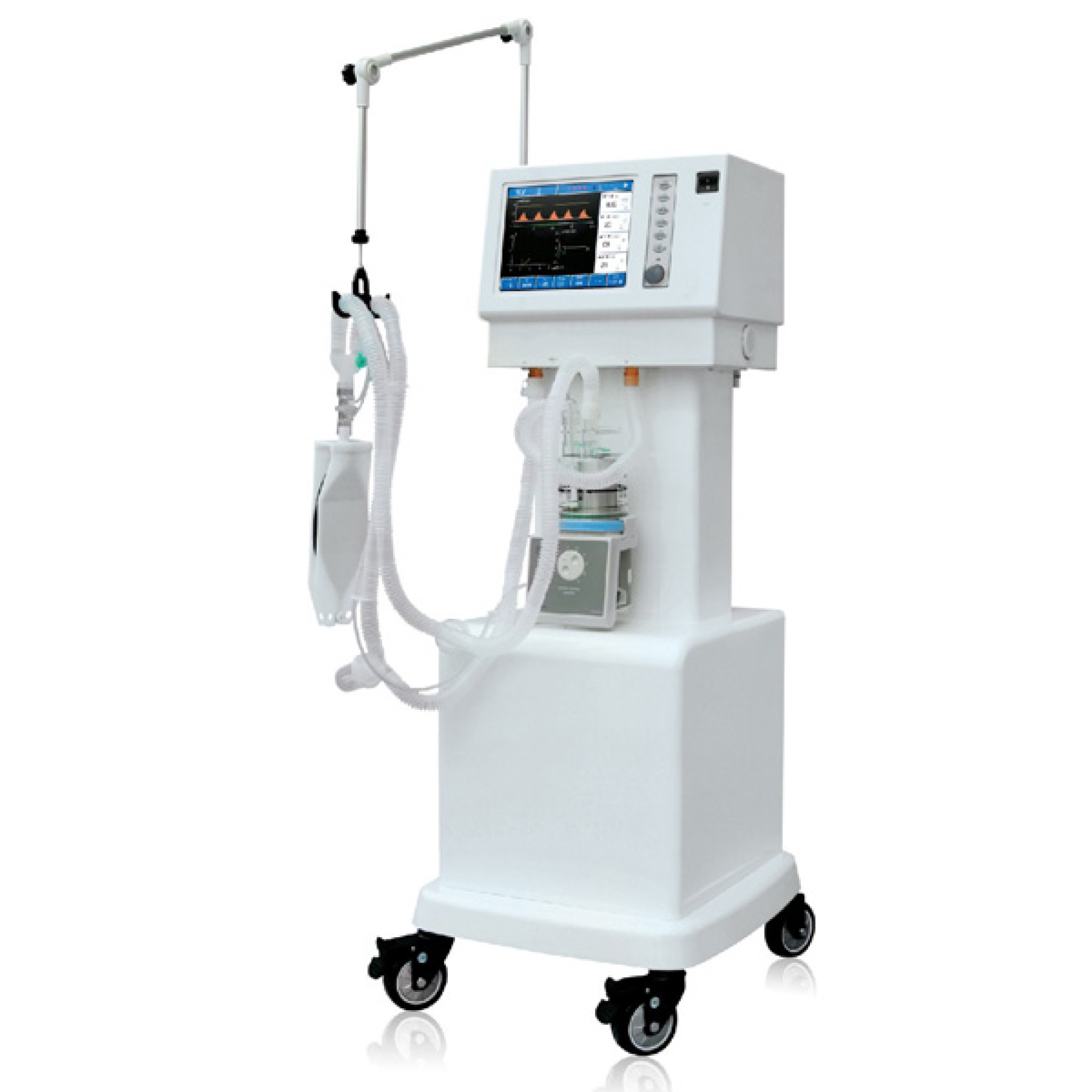

MSLVM02 is a multi-functional Ventilator adopting pneumatic, electronic control and microcomputer technology. Exported components are utilized to guarantee operational stability and reliability. With color screen (TEF) to display various measuring and configuration parameters, the device is very suitable for respiratory treatment, applicable for medical, surgical and gynecological departments, the department of pediatrics, first aid, and ICU departments of hospitals at different levels.

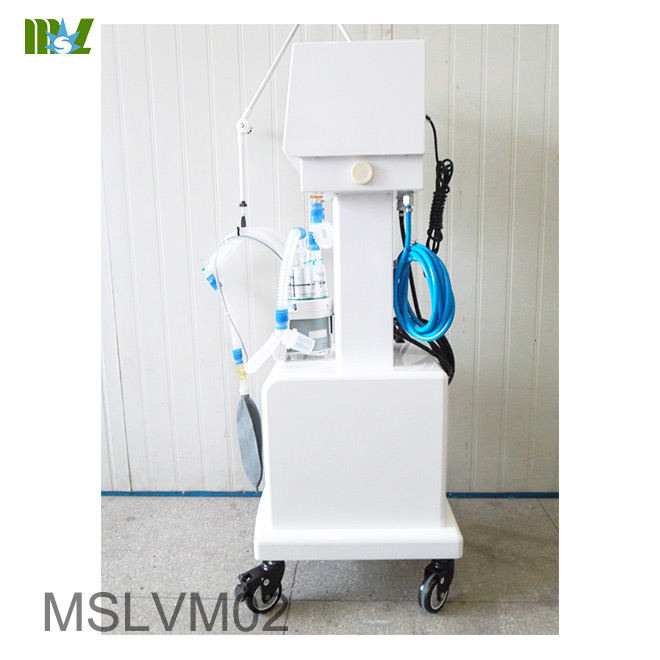

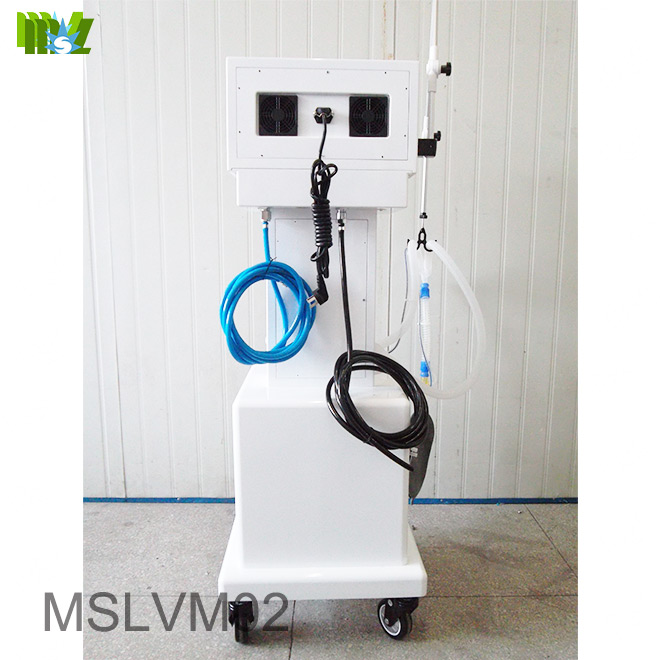

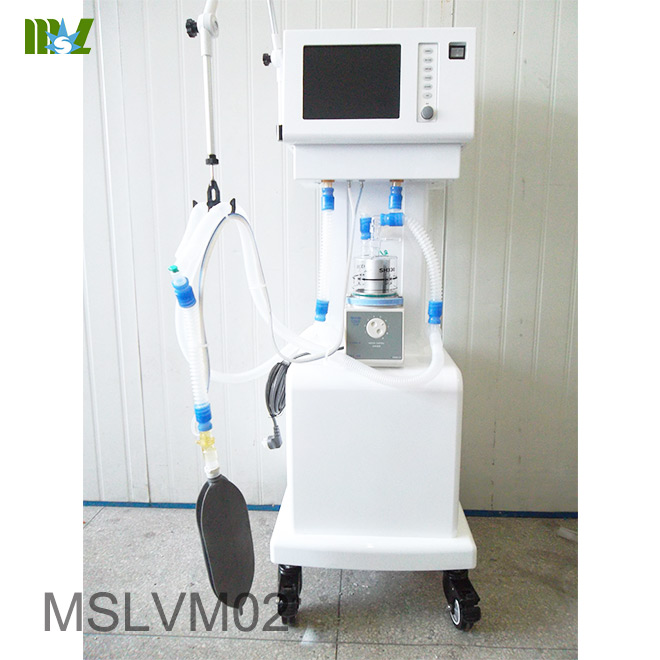

Ventalation systems – MSLVM02

Ventilator machine

Display mode High-definition 10.4” TFT color LCD screen display

Ventilation mode IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH, IMV, VCV, PCV

Ventilation parameters

Tidal volume 20～2000 ml

Rate 1～120 bpm

SIMV rate 2～20 bpm

I:E 4:1～1:8

Pressure trigger sensitivity -1.0-2.0kPa

Flow trigger sensitivity 1-20L/min

PEEP 0～2.0Kpa

Pressure range 3～60cmH2O

Pressure support 3～60cmH2O

SIGH 1.5 times the inspiratory time(60-120 adjustable)

Inspiratory platform 0～50%

Oxygen concentration 21~100%

Pressure limitation 5～60cmH2O

Pressure slope 1～10gear

Flow rate setting 1～10gear

Expiratory trigger pressure -1.0～2.0Kpa

Time control 1～10s

Parameters for ventilation monitoring tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure – time waveform, flow rate – time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform (autonomous inspiratory rate, lung compliance, airway resistance, flow -volume loop, pressure-volume loop)

Monitoring of oxygen concentration 21%～100%

Security Alarm System

Oxygen Concentration alarm (Oxygen Alarm) upper limit setting range 21%～100% low limit setting range   10%～80%

Airway pressure alarm     upper limit setting range  0.3～6.0kPa low limit setting range   0.2～5.0 kPa

Per-minute ventilation volume alarm   upper limit setting range 3.0～30L/min low limit setting range 1.0～10L/min

Respiratory rate   upper limit setting range  50～99bpm low limit setting range   0～50bpm

  Tidal volume     upper limit setting range 10～2000ml low limit setting range  0～1800ml

Sustained high-pressure alarm   it will give alarm when stress have consistently been higher than 2.5 kPa

Suffocation alarm   it will give sound and light alarm if there is no tidal volume input for 15 seconds

Power alarm Gas shortage alarm Intubation off alarm

Power   AC 220V±10%     50Hz±1Hz UPS, Storage battery

Mechanical Arms （Air compressor）  ＊Items within brackets are optional.

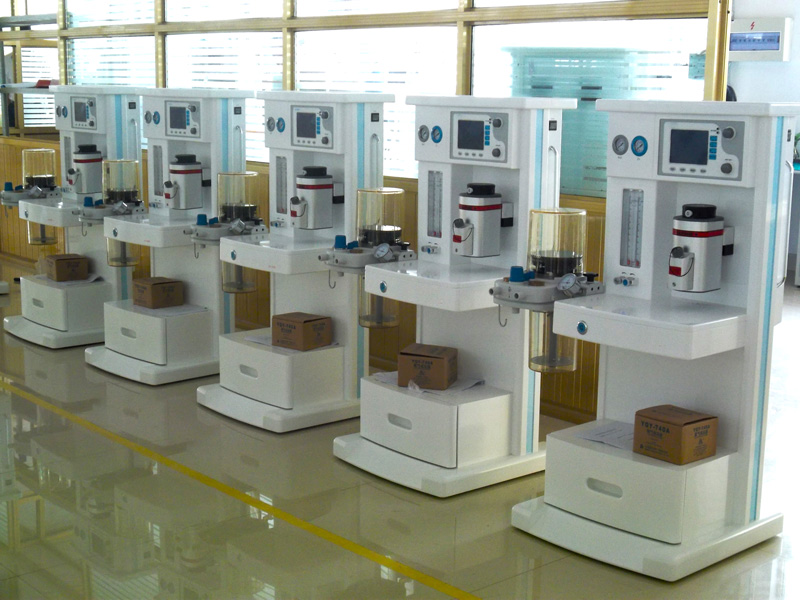

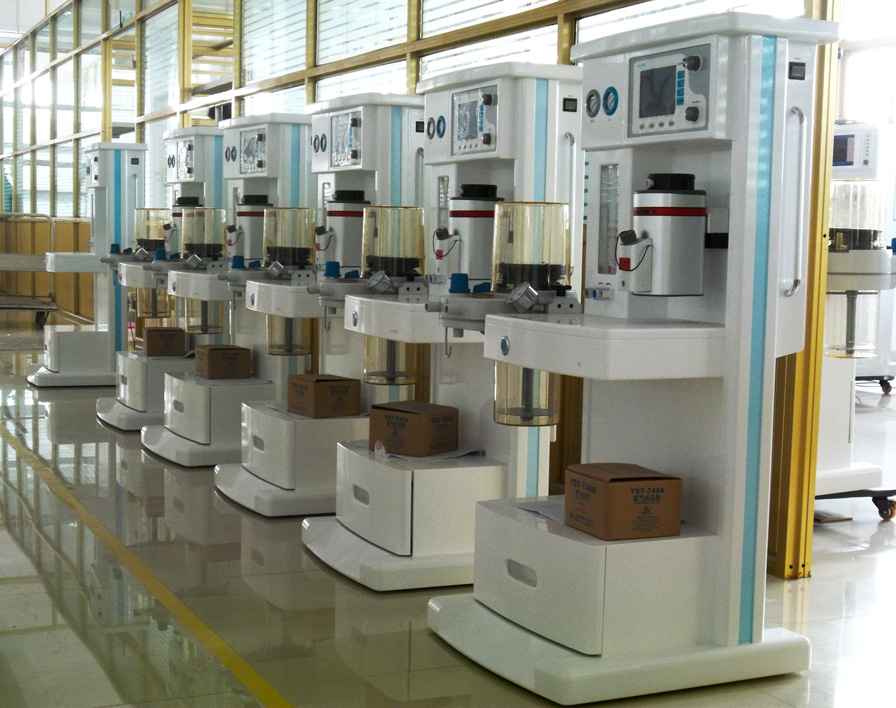

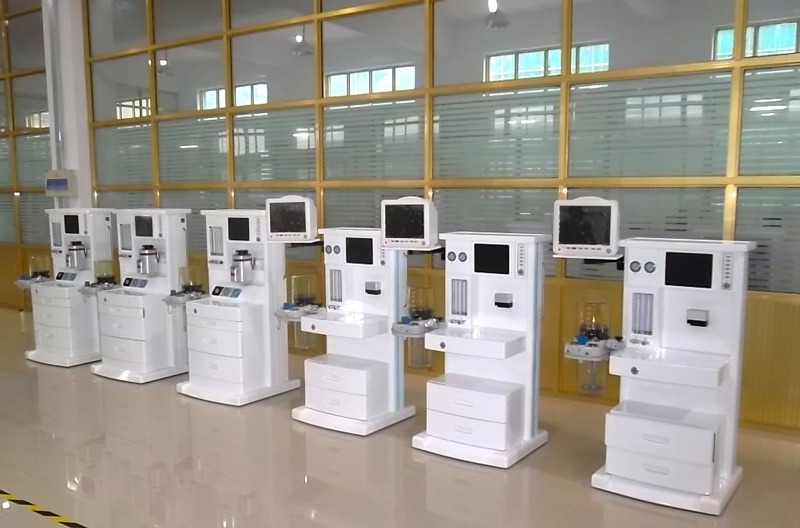

Relate hot sale and cheap portable anesthesia machine
