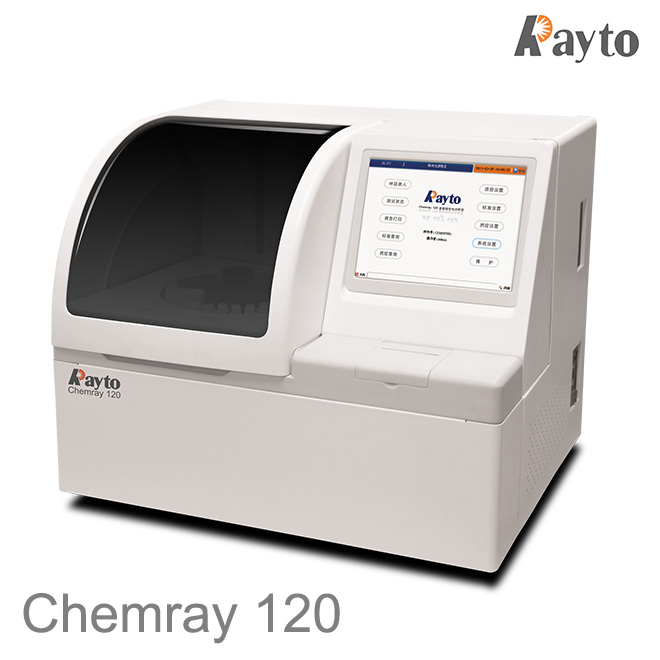

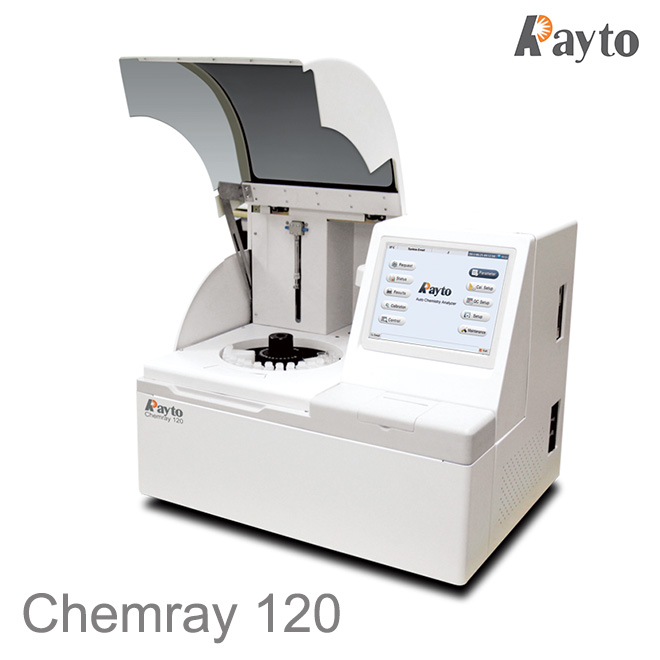

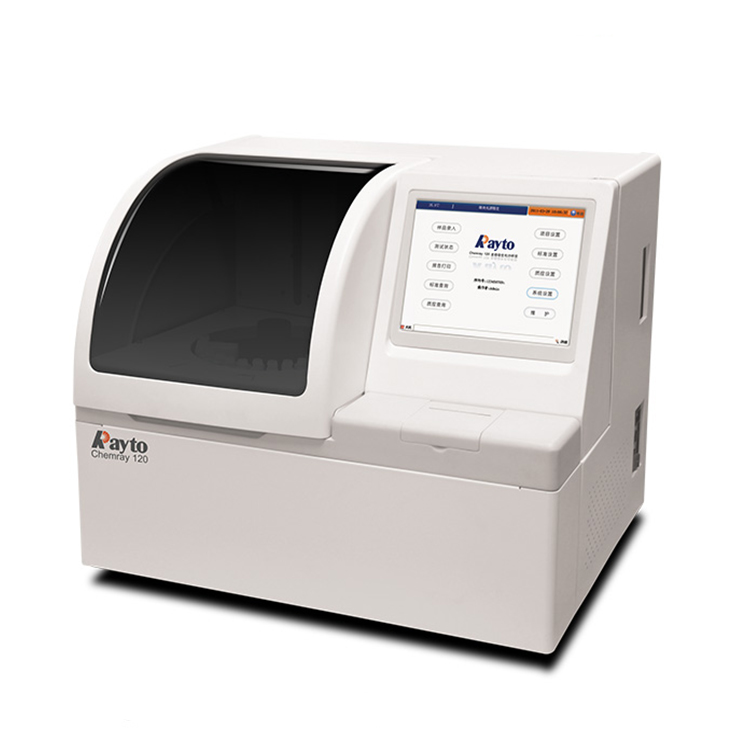

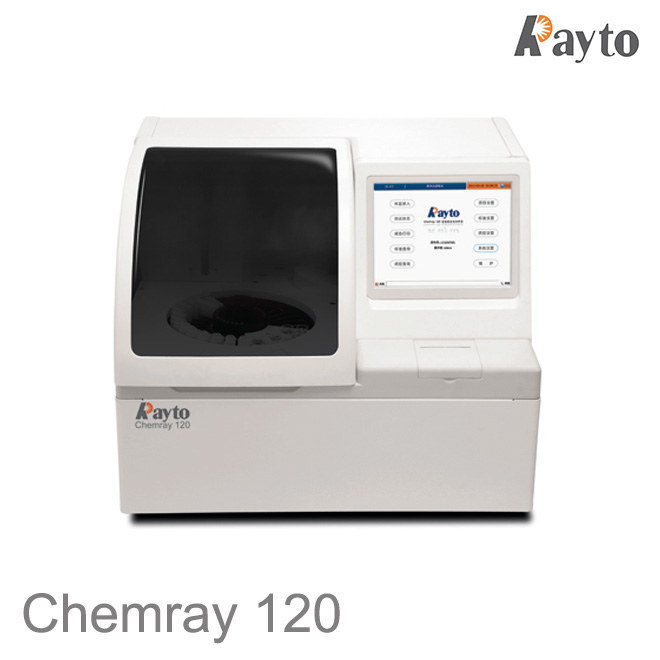

Chemray 120 Automatica Analyzer

Technical Specifications

System Function

.Throughput: up to 100 tests per hour

.Contents of testing: Clinical chemistry, Immunoturbidimetric

.Analytical modes: End-point, Two-point, Kinetic

.Programming: Open system with user defined programs

.Automatic, Random Access

.STAT sample priority

Sample Tray

.Sample position: 9 positions for samples

.Sample volume: 3‘45 pL. 0.1 pL adjustable

.Any position for standard and quality control setting

Reagent Tray

.Reagent position: 26 positions for reagents

.Reagent volume

              R1:180、450 pL. 0.1 pL adjustable

              R2:   3、450 pL. 0.1 pL adjustable

Reaction Tray

.Reaction positions: 90 cuvettes, 10 cuvettes/strip

.Cuvette: Optical length 5mm

.Reaction volume: 180、500u1

.Reaction temperature: 37℃

Probe

.Pre-heating for reagent

.Collision protection, Liquid level detection and Inventory checking

.Automatic inner and outer probe washing after every cycle

Probe

.Pre-heating for reagent

.Collision protection, Liquid level detection and Inventory checking

.Automatic inner and outer probe washing after every cycle

Print out

.Built-in thermal printer,external printer optional

Measuring and Optic System

.Lamp: Halogen lamp

.Absorbance range: 0、3.500Abs

.Wavelengths: 8 wavelengths from 320-850nm

.Resolution: 0.0001 ABS

Working Condition

.Power supply: 100-240 VAc 50/60 Hz

.Temperature: 10·350C

.Humidity: 35、80%

.Water consumption: <3 Uhour

.Dimension LxWxH(mm): 630x480x510

.Net weight: 70 KG
