Double Panel LED Medical Film Viewer MSL2C price | Medsinglong

Features of Double Panel LED Medical Film Viewer MSL2C:

Thickness is 25mm and with Global Adaptive voltage
Ultra high brightness and side-lit light source
Imported Acrylic panel and 4mm thickness LCD light guide plate
PWM Low-Voltage Digital Continuous Dimming System

Specification of Single Panel LED Medical Film Viewer MSL2C:

1.Double Panel
2.External Size(L*W*H mm):828*506*25
3.Visual Area Size(L*W mm):720*425
4.Max.Power:60W
5.LED Speification & Lifespan: TAIWAN super bright SMD LED,144pcs/bank,CCT >8000K,Lifespan >100000h
6.View Panel:PWM Dimming System,range from 1%~100%,    Luminance:0~4500cd/㎡
7.Film Automatic Activation:The Panel will light up automatically when film inserted and off when moved away
8.Brightness Uniformity:≥90%
9.Film Clip Device:SS roller oblique compression type
10.Installation Way:Wall Mounting,Breast Mammography Film
11.Application Scope:General Film,Digital Film,Breast Mammography Film
12.Application Condition:Environment luminanance of viewing room shall be less than 100lux

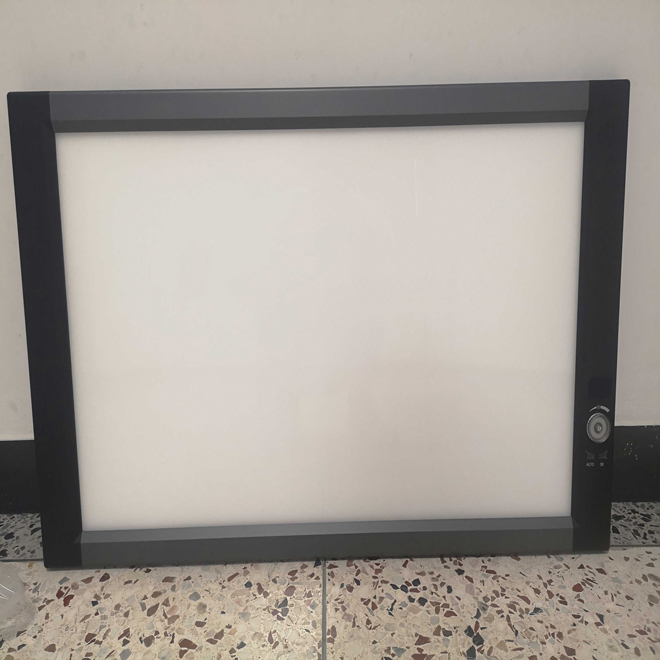

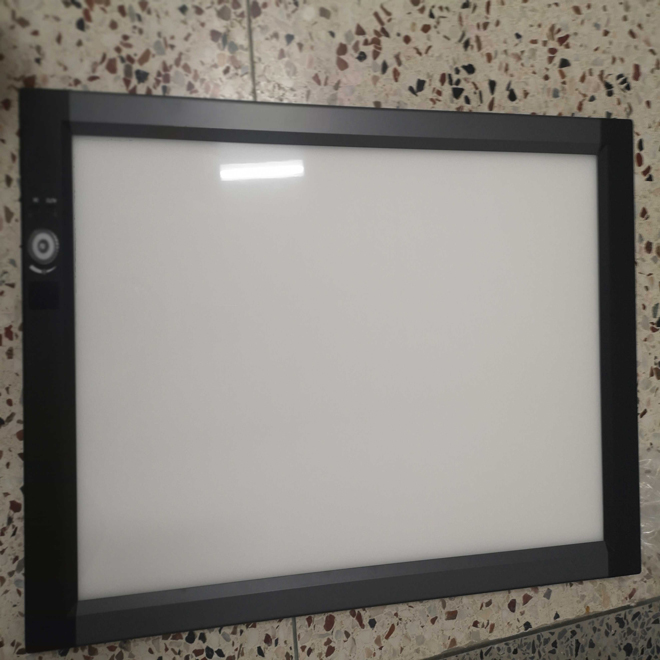

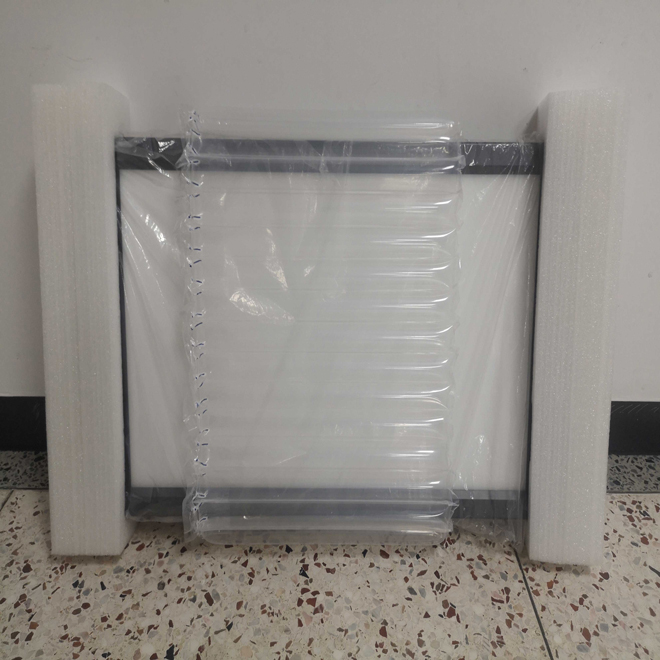

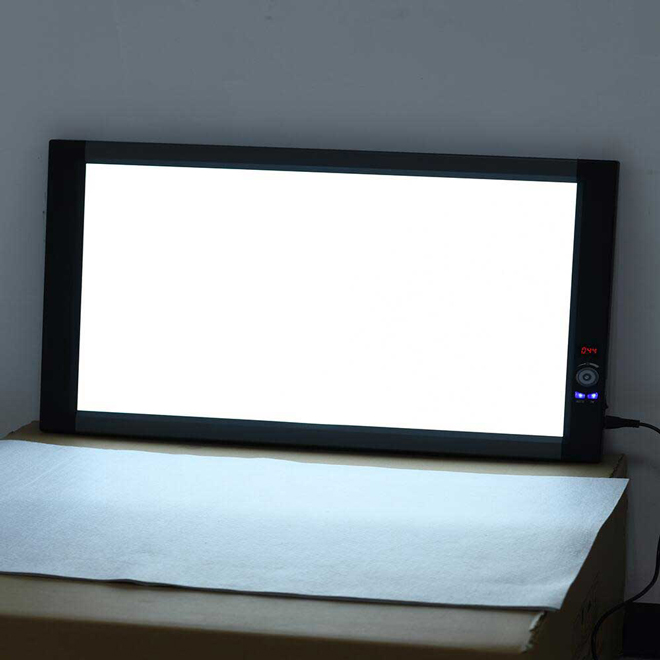

Client Usage Photos of Single Panel LED Medical Film Viewer MSL2C
Please contact us for more details.
