Ecografie endovaginala Chison EBit 60 price

Ecografie endovaginala Chison EBit 60 price

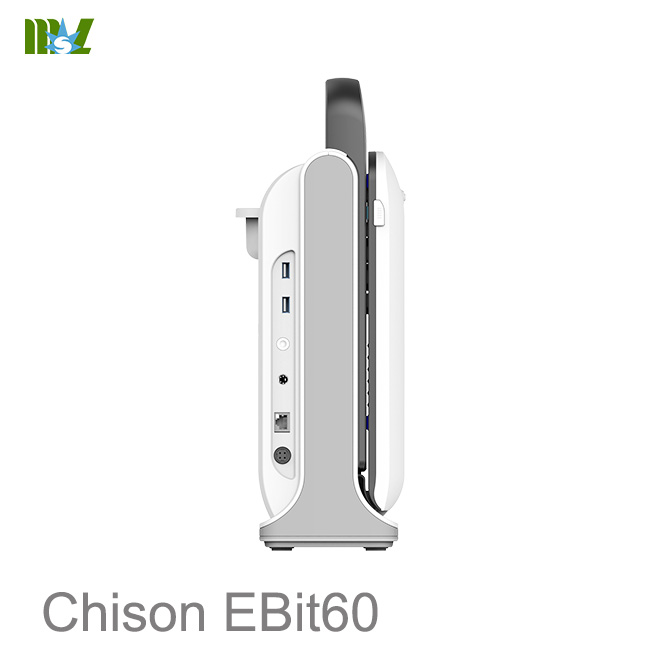

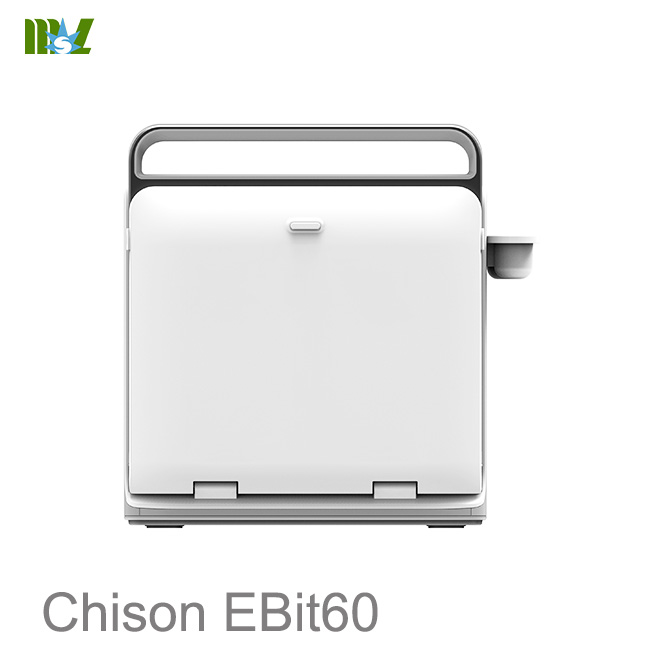

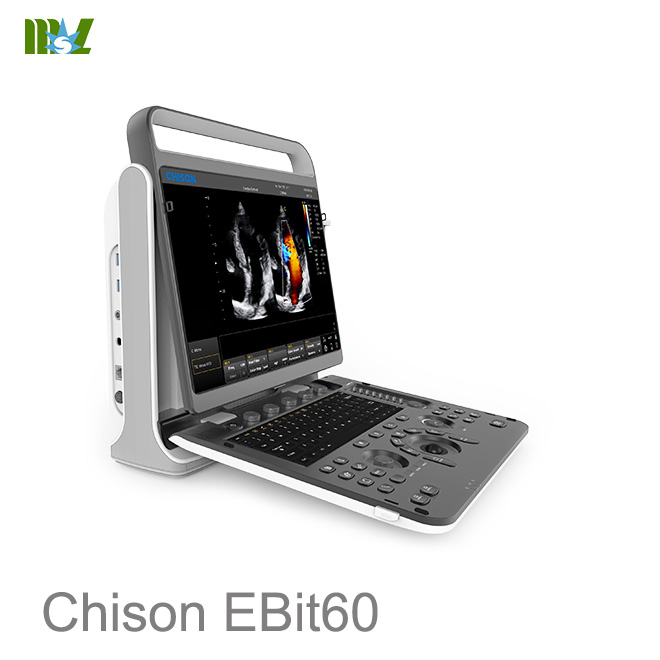

The Chison EBit 60 provides all the power you need for today’s challenging clinical environment, yet remain ultra-protable, ultra-affordable. With it’s cutting-edge imaging technologies, precise and intuitive workflow, ergonomic and eco-friendly design, versatile transducers for all applications from top to toe, we firmly believe the EBit to be the very best protable ultrasound in its class today.

Monitor, 15 «inches in size, high resolution, portable.

With the connector for two sensors.

Hard drive 500GB. USB connector, DICOM 3.0

Built-in battery. ECG module. Has the pedal, case.

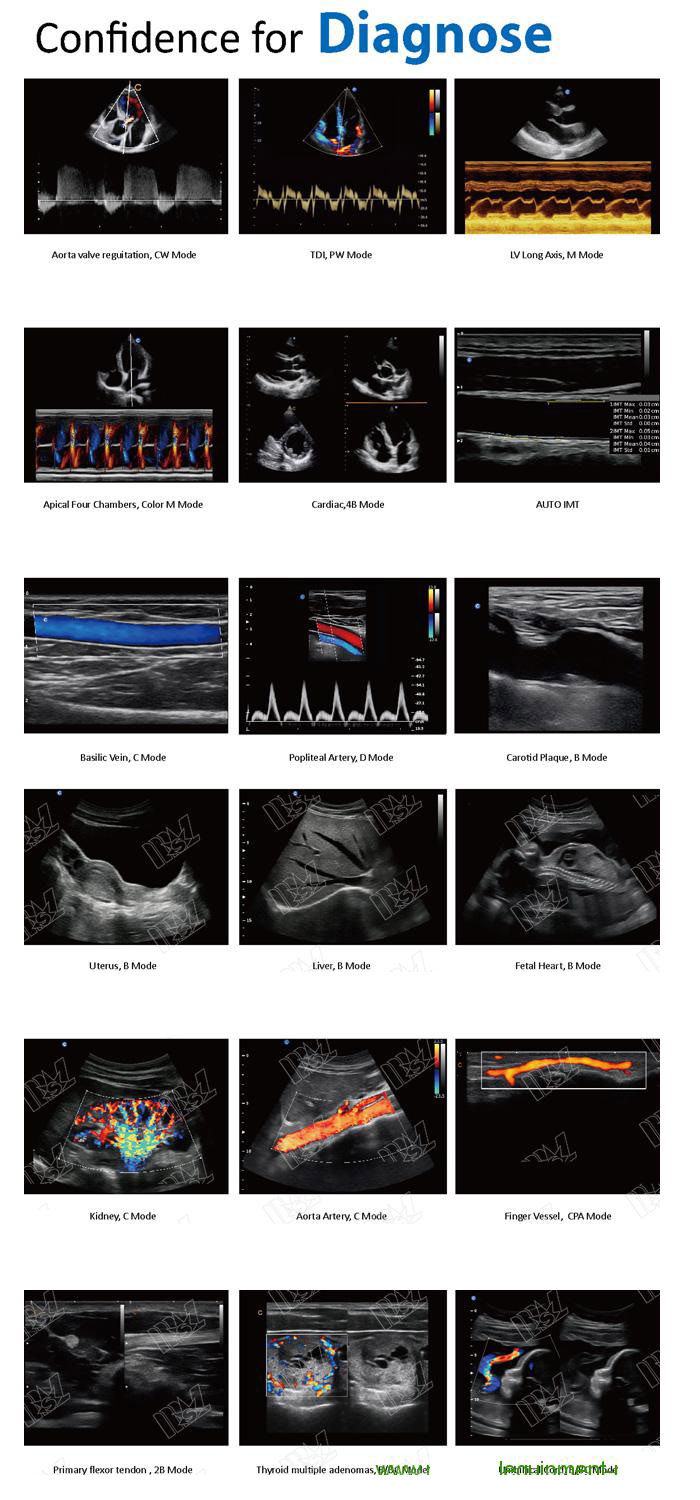

Image modes：

B Mode

B/M Mode

M Mode

2B Mode

4B Mode

2D Steer (option)

CFM Mode

CPA Mode

DPD Mode

PW Mode

B/BC Mode (option)

Triplex Mode

CW Mode (option)

TDI (option)

Color M Mode (option)

Trapezoidal Mode

ECG (option)

Super Needle (option)

Multi Beam technology, μScan, 3D, Compound Imaging, Keystone image, cardio-vascular IMT, M-Tuning (optimization in 1-click),

CW Doppler, TDI

Five (5) sensors:

1) The linear – 192 elements. The frequency 4-18 MHz. The size of the head 38 mm.

Brackett of biopsy needle for linear sensor (multiple, metallic)

2) Cardiological / phased – 128 elements. The frequency 3.0 MHz. (for adult).

3) Cardiological / phased – 128 elements. The frequency 6.0 MHz. (for pediatric).

4) Convex small in size – 128 elements. The frequency /Micro convex / 5.0 MHz. (for pediatric). The size of the head R20 mm;

5) Convex – 128 elements. The frequency 3,5 MHz. The size of the head R50 mm;

Factory rack with the trolley using the wheels and brakes.

Device Weight (without sensors) 7, 5 kg

CE certificate

Guarantee period – 1 year

Staff training during installation, by issuing the relevant certificate

Mobility Innovative Design

1. Light Weight (7.5Kgs)

2. 15» LED (rotatable 0o – 30o )

3. Removable battery, 120 minutes in active mode

4. Dual transducer prots

5. Built-in probe holders

6. Ports: USB, LAN, VGA, DVI, VIDEO, REMOTE

7. Ergonomic trolley (accessory box, printer & probe holder)

8. Theft-proof lock

Clinic Versatility

A complete solution for ultrasound diagnosis

Cardiovascular

Radiology

Internal Medicine

Small parts

General imaging

Vascular

Intensive care

Emergency

MSK

Highlight:

Ultra-Light desktop with 2 probe ports.

One key to full screen.

Advanced Cardiac Package: CW ,TDI ,Semi-Automatic Trace ,Tei Index ,PISA.

Wide Clinic Applications: Cardiology，OB&GYN, Radiology ,Abdominal, Pediatric,MSK,Breast,Vascular and Small parts etc.

Breakthrough technologies:

FHI: maximize the resolution without losing penetration.

X-contrast：Adjust the contrast resolution to 3 levels according to the tissue difference.

Q-beam:Use quad-beam to receive signal that ensures better diagnostic confidence and efficiency.

AIO: Automatic image optimization by pressing one key so that Greatly reduce your time spending on the image.

Company Background:

We’ve launched a new ultrasound product every year for 20 years. We have been applying ourselves to provide versatile ultrasounds that can satisfy clinic diagnostic need fully.

International Fred Hutchinson Cancer Research Center which is  a cancer research institute established in 1972 in Seattle. Washington, chooses CHISON Q9 Ultrasound equipement to test the effectiveness of MI drug they’ve been researching on.

CHISON Q5, SONOTOUCH 30 are used in the Vascular and Endovascular Surgery Dept in the USA. We listen to the people who use our products inspire us to imagine what is possible.

 We make the sale with a complete product line, competitive pricing, and end-to-end support, value-added services.

specification

I.     Light Weight(7.5kg)

II.    15″ LED (Rotatable 0°~30°)

III.   Removable battery，120 minutes in active mode

IV.   Dual transducer ports

V.    Ergonomic trolley(accessory box,printer & probe holders)

VI.   Full Screen display Mode

VII.  Advanced Cardiac Packages

VIII. Innovative technologies:FHI,Q-image,X-contrast,Q-flow,Q-Beam
