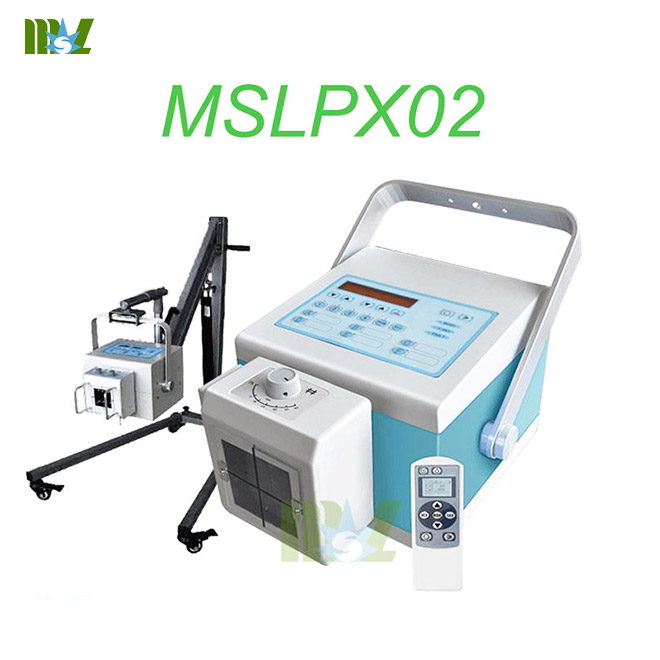

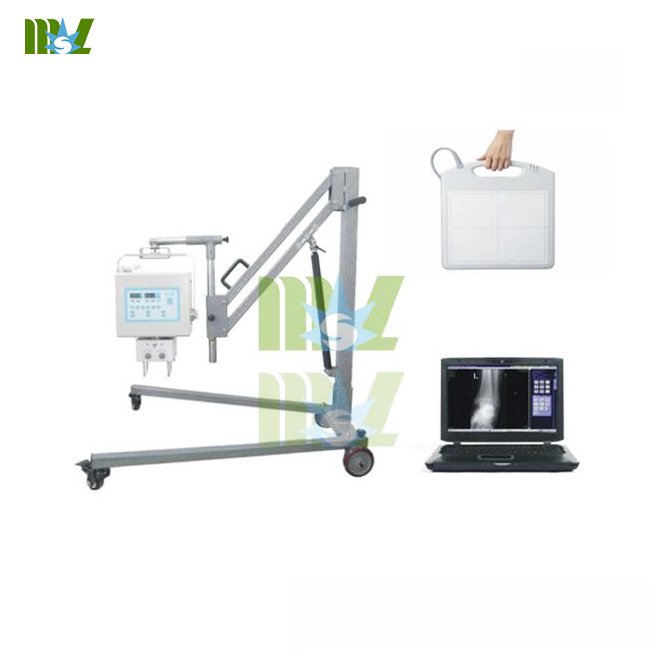

Factory sell directly Digital portable fluoroscopy machine MSLPX02

1. portable fluoroscopy machine  Application:
The 4kW portable digital high frequency X-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, vet clinics, etc.

2. portable fluoroscopy machine Features:
1) Simple & light structure;
2) 6-segment LED digital display;
3) Anatomical memories for 24 selection program;
4) Double-loop (analog & digital) high precision control mode;
5) High precision control in tube voltage & current;
6) Self-protection & auto-diagnosis available when malfunction occurs.

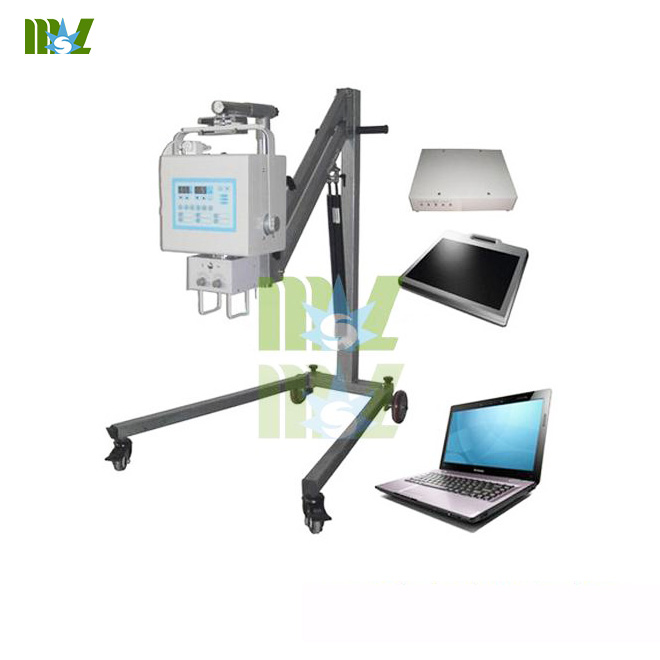

3. portable fluoroscopy machine Specifications.

Main components Parts Model No./ Specifications Qty Remark

X-ray Units

X-ray tube MSLPX02 1 set

Collimator MSLPX02-A 1 pc

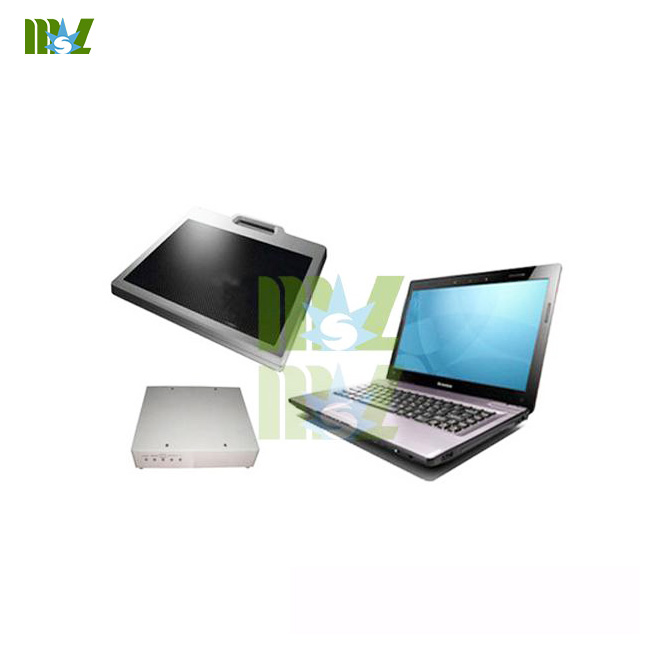

DR System Digital detector MSLPX02-B 1 set

Sync box MSLPX02-C 1 set

laptop MSLPX02-D 1 set

DR image processing software — 1 set

Auxiliaries Steel support MSLPX02-E 1 set Optional

Factory sell directly Digital portable fluoroscopy machine MSLPX02

YOUTUBE video link:

medical diagnostic x ray machine-MSLPX01 video

Digital portable x-ray machine MSLPX01 operational video

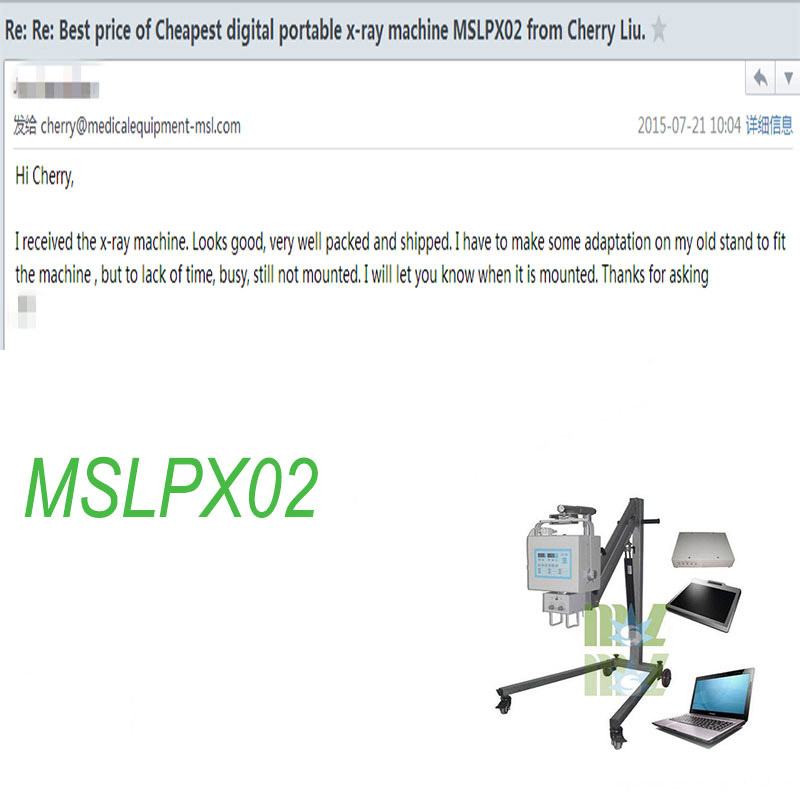

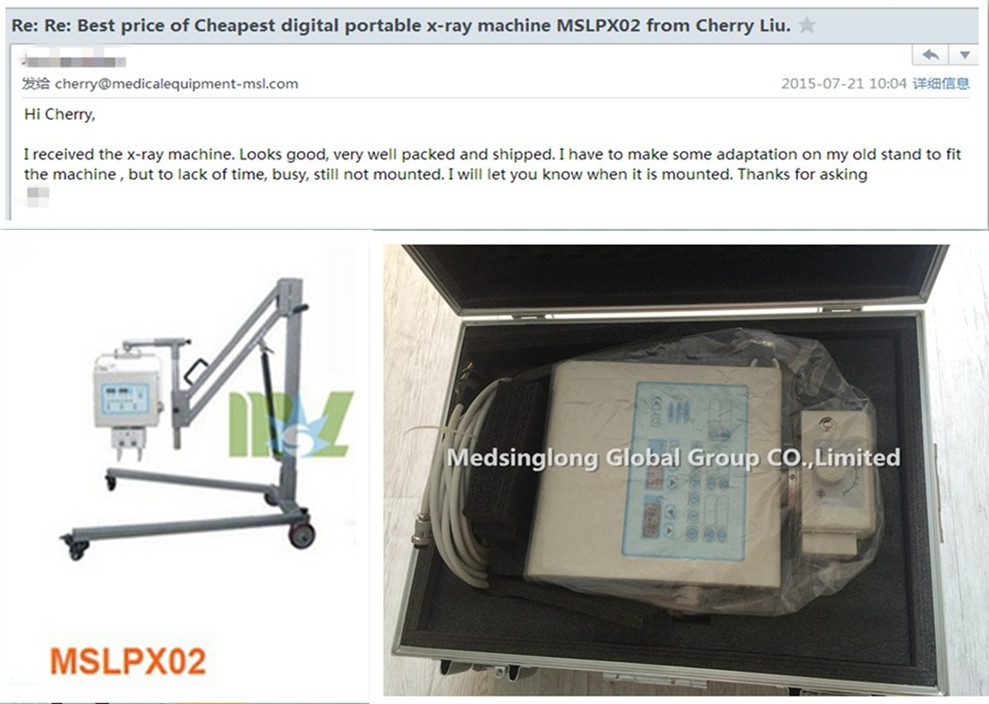

X ray machine MSLPX02 Praises From Clients

  Model MSLPX02

 Power supply   Voltage: AC220V± 10%, 50/60Hz ± 1Hz Capacity: ≥5kVA; Internal resistance: ≤0.5Ω

 Maximum output power P =110kV×36mA=4kW

Nominal output power 100kV,40mA,0.1s,4kW

Frequency ≥40kHz

kV  adjustable range   40kV~110kV, continuous regulation, stepping 1kV

mA  adjustable range   36mA~70mA

mAs adjustable range   1mAs-200mAs,continuous regulation, stepping 1kV

Exposure time adjustable range   0.04s~3.2s

X ray tube Focus: 0.6/1.5mm, Thermal Capacity: 76kHU

Digital detector   Limit resolution: 3.9LP/mm; A/D convert:14bit; Pixel region: 264×325mm; Pixel matrix: 2080×2560;

Notebook Computer   a) Model:MSLPX02    b) Processor: Intel Core i5-2410M(2.3GHz) c) Memory capacity: 4GB d) Hard disk: 750GB e) Screen size: 14inch

Anatomical program   24 memory choices available

Dimension 290×260×230 mm

Weight 18.8kg

Accessories Standard: manual switch,cable Optional: mobile steel support

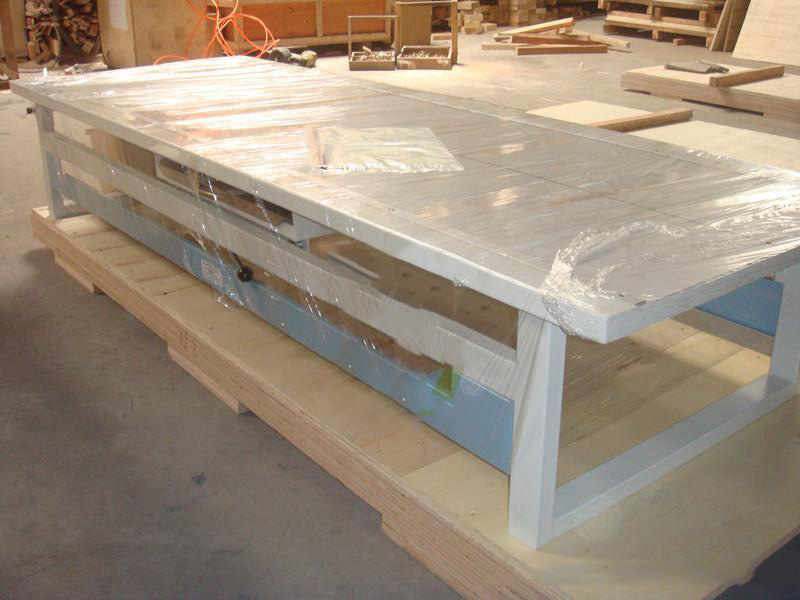

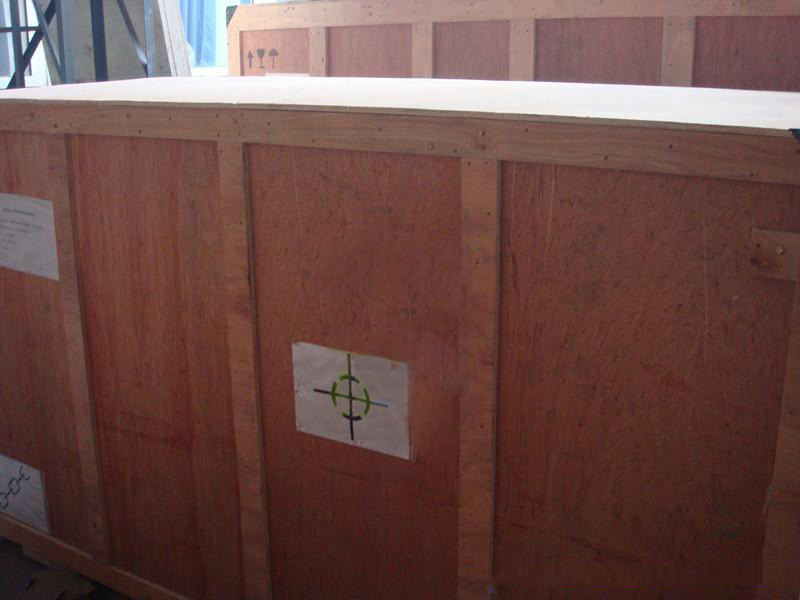

Packing Detail for MSLPX02 Digital X-ray machine

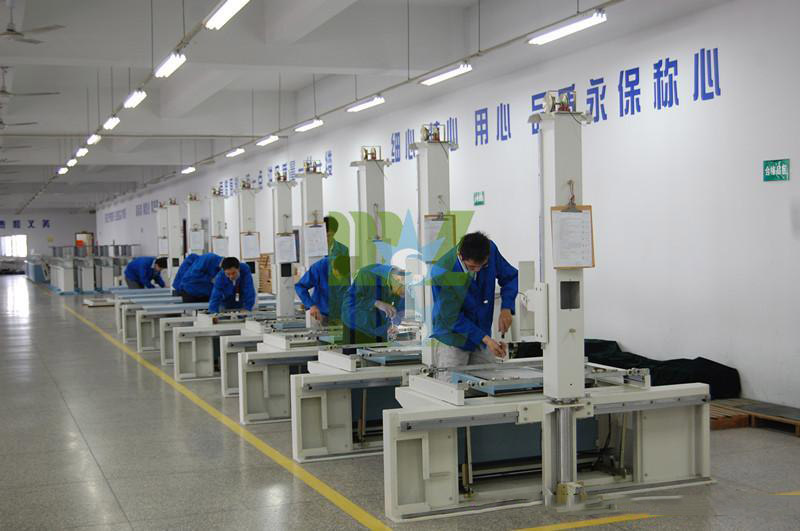

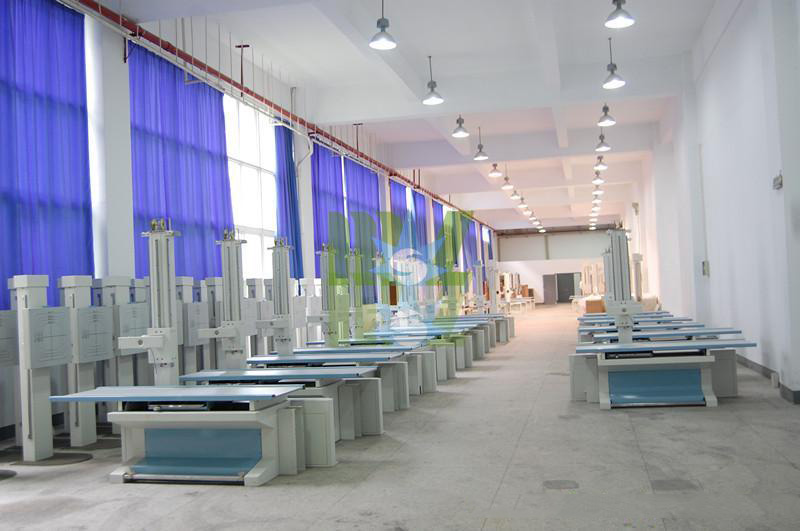

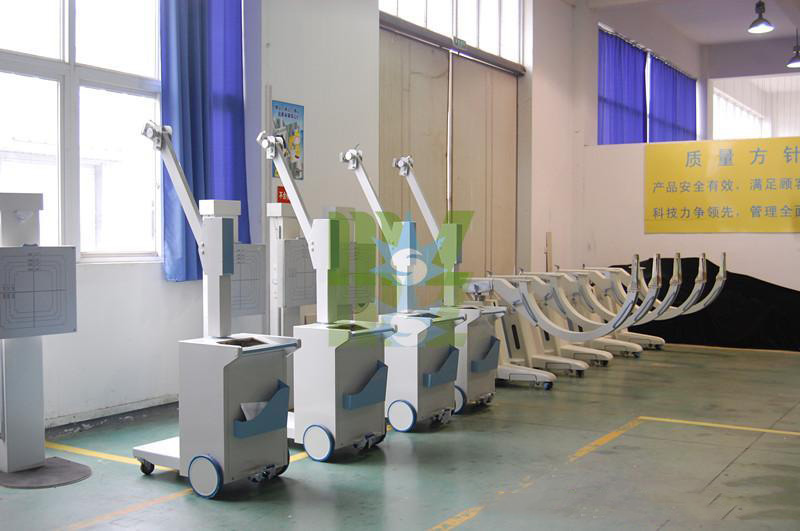

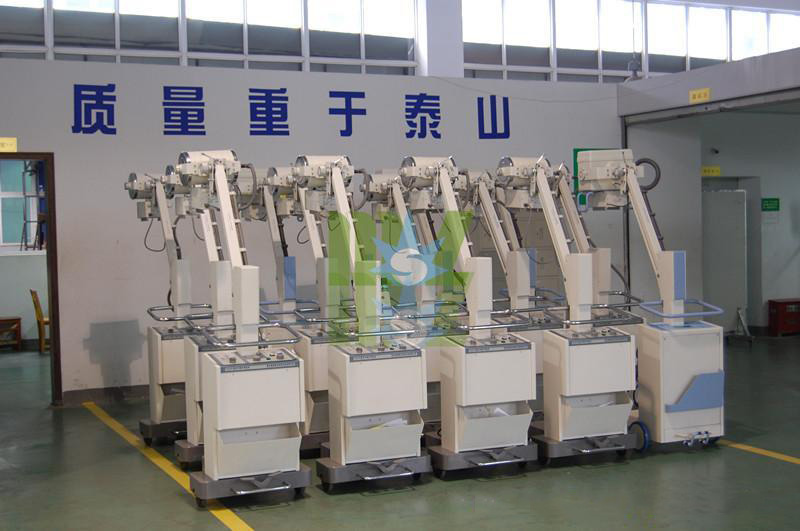

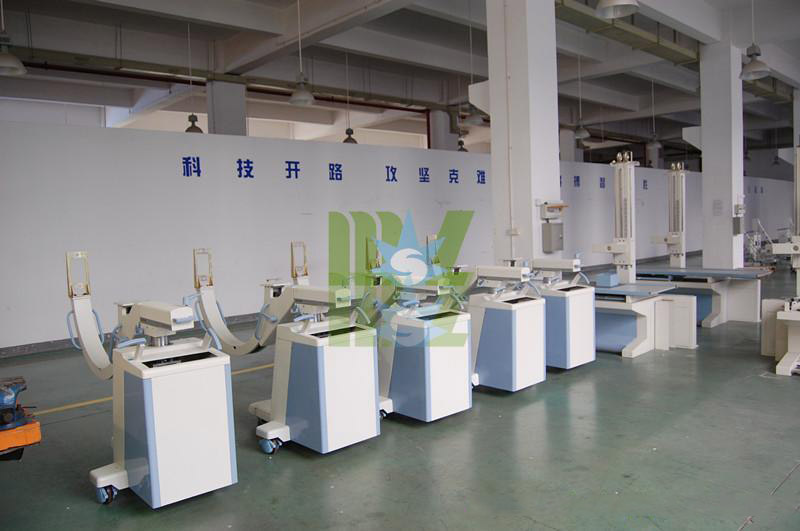

Our mobile X-ray machine factory image

Supplying many kinds of x-ray machine / mobile x-ray machine
