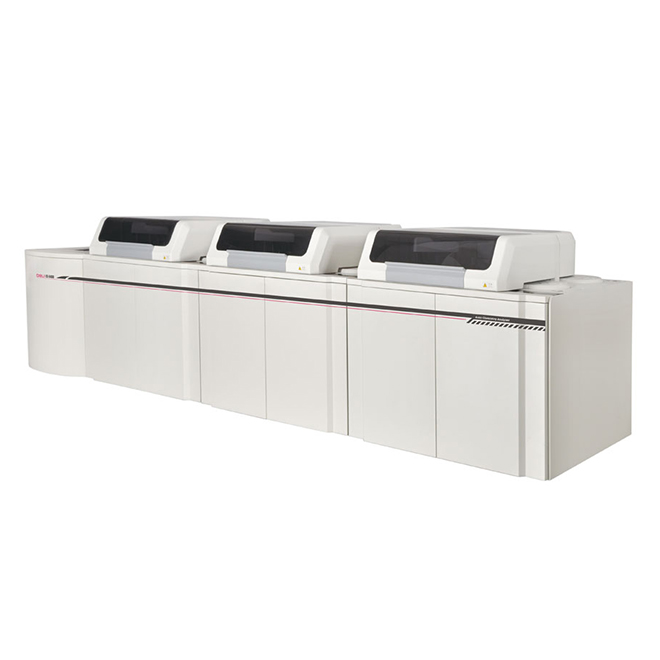

Fully Automated Chemistry Analyser CS-6400 from Medsinglong

Features of Auto-Chemistry Analyzer CS-6400:

1.Modules integration: intelligent and advanced chemistry system
2.Advanced post position semi-conductor helps direct heat releasing, disks water cooling to ensure stable temperature and easy maintenance.
3.Automatic liquid level detection ensures the probes enter the liquid at a perfect depth, reduces liquid suspension.
4.Light source with best position design, no signal attenuation, strong anti-interference.

Specification of Auto-Chemistry Analyzer CS-6400:

System type: Random access, fully automatic, discrete, STAT priority
Throughput: Constant speed 6400T/H colorimetric (integration of 4 modules) Max. ISE throughput up to 960T/H
Light source: long life halogen lamp
Wavelength: 340-800nm, 13 wavelengths
Analysis Method   End-point, kinetics, fixed-time, etc.
Calibration Method 1-point method. 2-point method, multiple point linear method, non-linear method
Probe: independent sample probes, reagent probes, automatic liquid level detection, probe liquid level tracing and clot detection function
Rinsing mechanism: probe inner wall high pressure rinsing
Mixing mechanism: 2 independent mixers ensure sufficient reaction
Reaction Cuvette   330 new type reaction cuvette for each module
Temperature control: The temperature of reaction disk incubation bath is 37 C+0.1C
Reagent position   134 reagent positions for each module with continuous refrigeration
Sample volume: 1.5ul-35ul. 0. 1ul increment
Reagent Volume   15ul-350ul. 1ul increment
Reaction volume: minimum reaction volume 150 ul
