fully Automatic biochemical analyzer

Technical Specifications of  automatic biochemical analyzer

Light Source:6V 10W,halogen lamp of more than 2000 hours’ life time

Spectrometer:interference filter.

Wavelength:340nm,380nm,405nm,505nm,546nm,578nm,620nm,and one wavelength free.

CML precision:±2nm

FWHM:≤10nm

Stray light ≤0.5%(absorbance≥2.5)

Absorbance range:-0.214~3.000

Absorbance linearity:±0.01

Absorbance repeatability:±0.001

Absorbance resolution:0.0001

Precision:≤0.01

Carry over:≤0.01

Temperature:25°C,30°C,37°C,±0.3°C

Flow cell permanent quartz flow cell,minimal volume is 32μL,and disposable flow cell is selectable

Sampling system:pressure auto releasing pumps ensure the accuracy of suction volume

Operational system:VISTA,Windows XP,Windows2000

Test Method:End point,Fixed time,Kinetic,Factor,Muli-standards,Bichromatic,Dual wavelengths

Parameter Setting:Patients’ profile and calculated item can be set easily

Absoption volume:200μL~3000μL

Sample volume:10μL~50μL

Reaction curve:real time display the reaction curve

Memory:Able to store more than 200 parameters while 55 parameters of them are stablized ;

Able to save more than 15000 test results and auto save the results if the power is off during working

QC:auto draw the QC figure

Reagent:Open reagent

Display:LCD with high brightness

Input:key button and touch screen

Printer:Inner thermal printer,able to be connected to external printer

Report content:

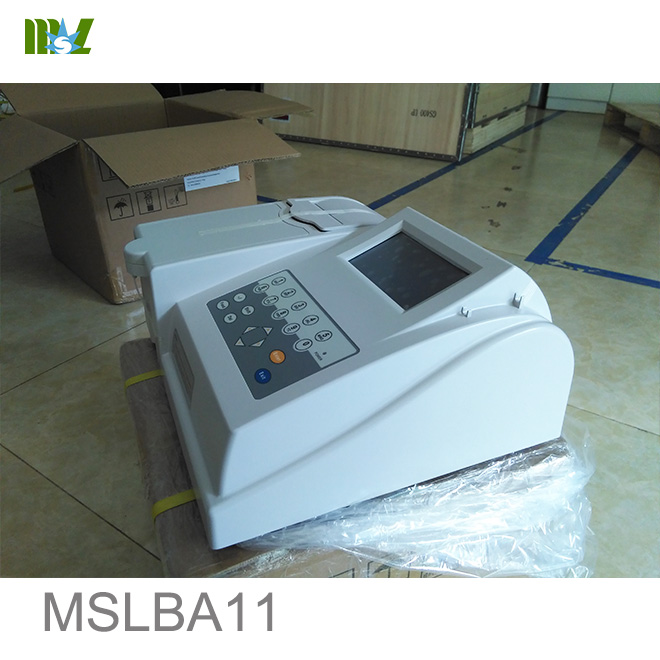

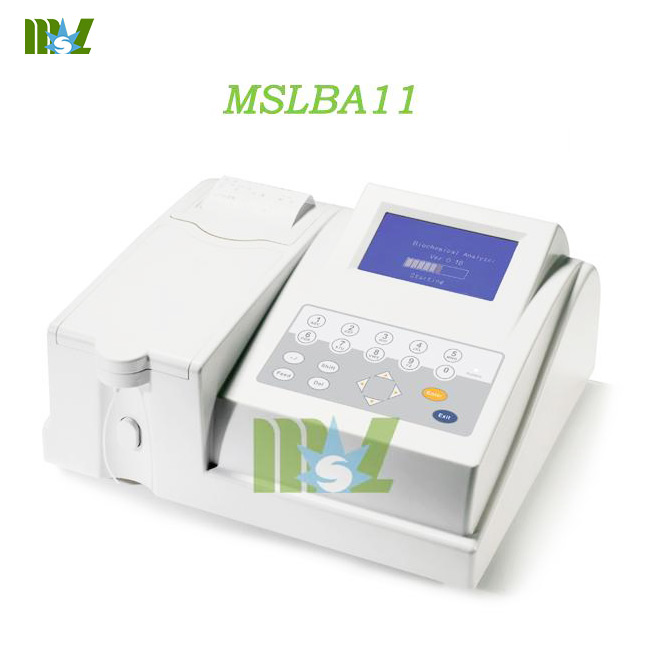

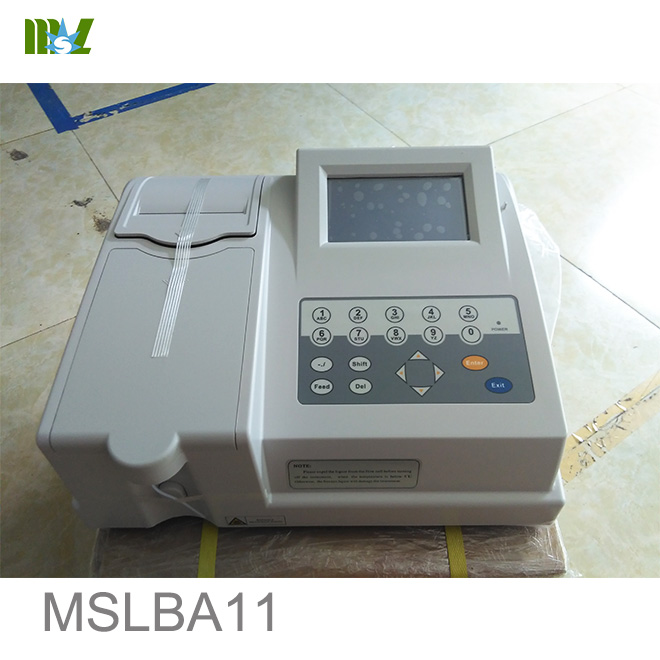

Automatic biochemical analyzer price-MSLBA11

YOUTUBE video link:



absorbance,concentration,activity,detailed patient information and

abnormal results marking

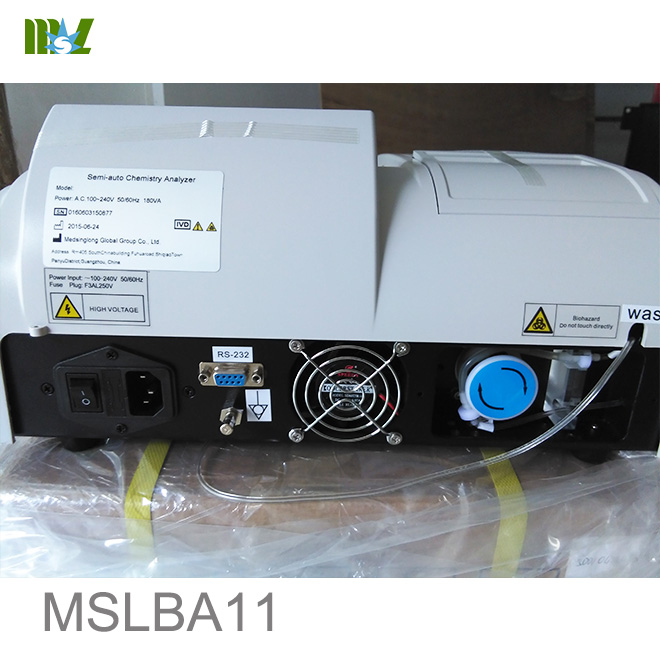

Interface:RS-232 serial port,able to be connected to computer

Working Condition:Temperature 10°C~30°C Relative Humidity 20%~80%

Voltage:AC 85-264V,auto adapt according to the input voltage

Power:≤100W

Quality System:Recognized by TUV and CMD



Test item

Liver:ALT,ALP,GGT,TP,Alb,TBIL,DBIL

Heart:LDH,CK,CK-MB,AST, a-HBDH

Lipids:CHO,TG,HDL_C,LDL_C

Lipoprotein:Apo A1,Apo B,Lp(a)

kidney:BUN,CRE,UA

Ion:Na,Mg,Ca,K,P,Cl

Other:CO2-CP,AMS,LIP,GLU,IgA,IgG,IgM,C3,C4,CRP
