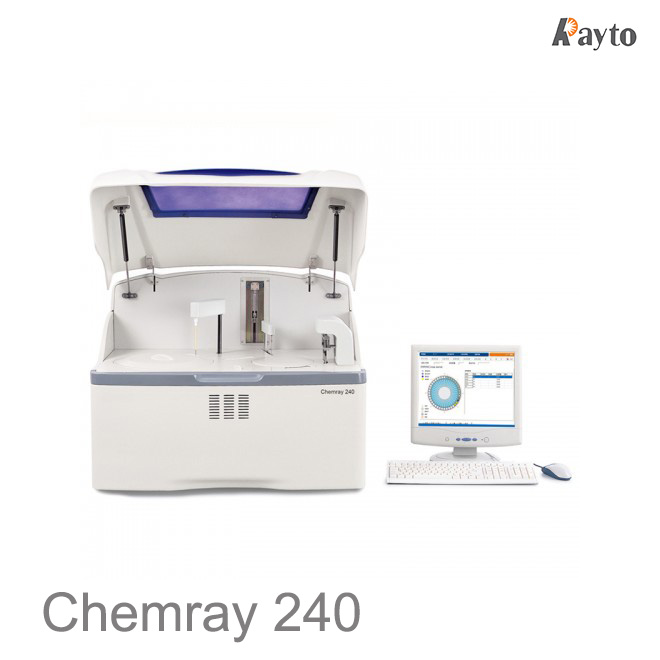

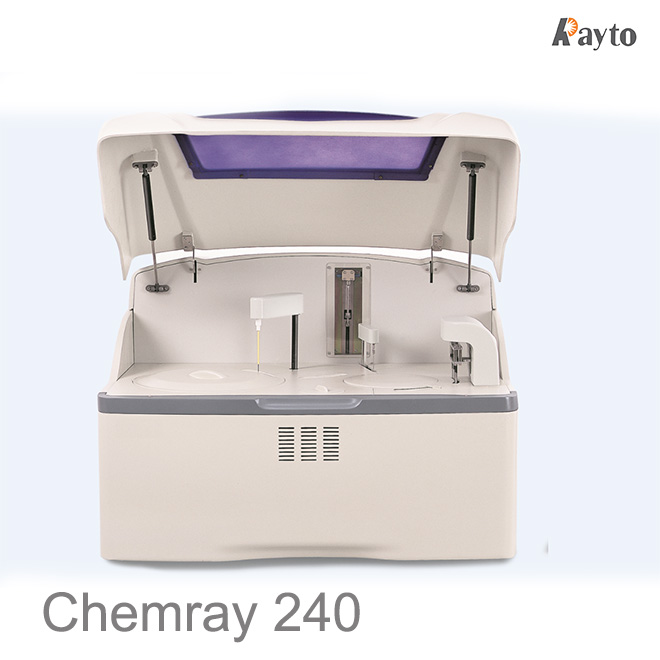

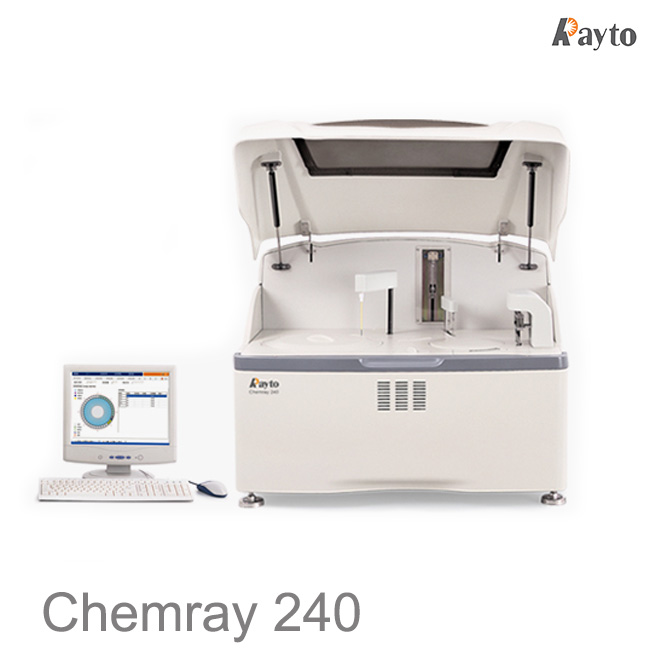

Fully Automatic Chemistry Analyzer Chemray 240

Chemray240 Auto Chemistry Analyzer Technical Specifications

* System Function

Throughput: Up to 160 tests per hour

Contents of the testing: Clinical chemistry, Immunoturbidimetric

Analytical modes: End-point, Two-point, Kinetic

Programming: Open system with user defined programs

Automatic Random Access

STAT sample priority

* Sample Tray

Sample position: 40 positions for samples

Sample volume: 3- 100μL, 0.5μL adjustable

Any position for standard and quality control setting

* Reagent Tray

Reagent position: 40 positions in refrigerated compartment

Refrigerated temperature: ≤16C

Reagent volume

R1:180~450μL, 1μL adjustable

R2: 30-250μL, 1μL adjustable

* Reaction Tray

Reaction positions: 81 cuvettes, 9 cuvettes/strip

Reaction volume: 180- 500ul

Reaction temperature: 37℃, fluctuation ±0. 2℃

Independent mixing probe

Cuvette washing (optional): Automatic 8 steps washing system

* Probe

Pre-heating for reagent

Collision protection, Liquid level detection and Inventory checking

Automatic inner and outer probe washing after every cycle, carry-over≤2%

* Measuring and Optic System

Lamp: Halogen lamp

Absorbance range: 0-3.500Abs±1%

Wavelengths: 8 wavelengths from 320-850nm including 340nm,405nm,450nm,510nm,546nm,578nm,630nm,670nm

Resolution: 0.0001ABS

* Working Condition

Power supply: a.c. 110V/220V, 50Hz

· Temperature: 0~40°c

Humidity: ≤80%

Water consumption: Max 3 W/hour

Dimensions: 810mm (L)*680mm (W)*1150mm (H)

Gross weight: 145KG
