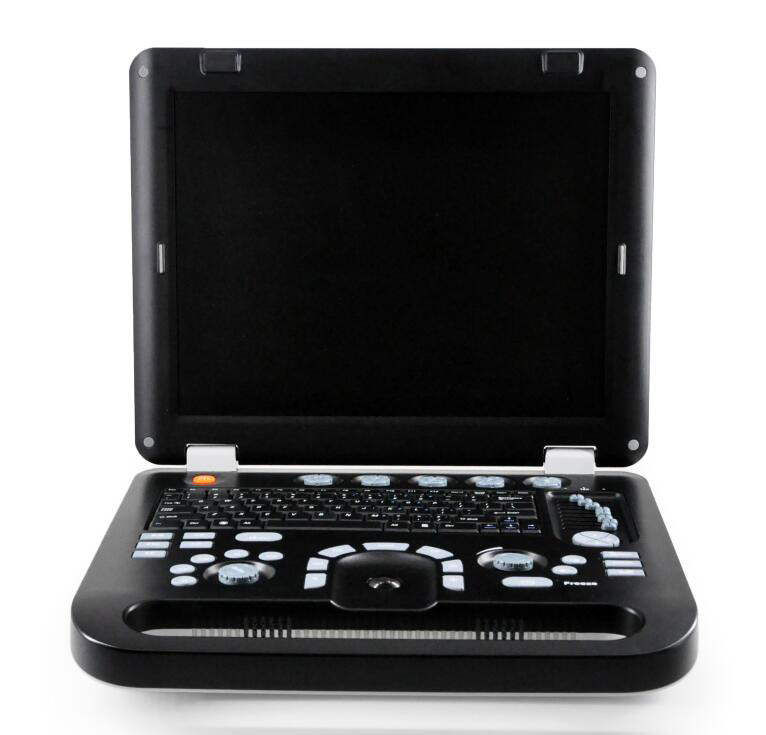

Laptop color doppler 4d ultrasound system – MSLCU11

3D&4D ultrasound machine in China-Laptop color doppler 3d ultrasound system – MSLCU11

We are specialized in supplying all kinds of color doppler ultrasound scanner, ultrasound scanner, ultrasound system for several years.

Affordable Compact Excellent color doppler ultrasound – MSLCU11 is a compact color doppler ultasound system with various functions and applications and only weight 5.5KG. The high image quality and simple operation can help doctors perform and clinical exam, such as abdomen, smallparts, OB/GYN, cardiac, ect.

ultrasound Imaging Modes

•
  Color Doppler (CFM)
•
  Power Doppler (PDI)
•
  Directional Power Doppler (DPDI)
•
  Pulsed Wave Doppler (PWD)
•
  B+PWD (Duplex)
•
  B+CFM/PDI/DPDI+PWD (Triplex)
•
  High Pulse Repetition Frequency (HPRF)
•
  Tissue Harmonic Imaging (THI)
•
  Continuous Doppler (CW)
•
  Imaging Modes:B,B|B,4b,B|M,M,PW,CW,CFM,PDI,DPDI,Duplex,3D&4D
•
  Monitor:15»high resolution medical LCD
•
  Color:Silver
•
  Scanning Method:electronic linear,electronic convex,electronic micro-convex
•
  scanning depth:2-24cm
•
  Software Packages:Obstetrics,Gynecology,Abdominal,Urology,Endocavity,Vascular,Cardiology,etc.
•
  Weight:5.5KG
•
  Expansion interface:VGA,TV,USB2.0,RJ-45,Support DeskJet printer,LaserJet printer,video printer
•
  Image and video:AVI,JPG,BMP,PNG,TIF,DCM (DICOM)
•
  Processing:High Line Density scan mod,Echo enhancement control,Noise rejection functio,Speckle reduction

​

ultrasound machine

Future:

Easy to carry only 5.5KG

Powerful software packages almost includes most of part

B,B|B,4b,B|M,M,PW,CW,CFM,PDI,DPDI,Duplex,3D&4D imaging

Well processing let Dr. feel easy during the ultrasonic examination.

Color Doppler

ultrasound machine

•
  PRF variable: 0.5-9 kHz
•
  Wall filter settings: 3 steps (5%, %10%, 15% PRF)
•
  Angle steering for linear transducers: ±10°
•
  Real-time spatial filter: 4 values
•
  CFM palette>10 maps
•
  PDI palette>10 maps
•
  B/Color priority control
•
  Color threshold control
•
  CFM baseline control
•
  Doppler frequency selection
•
  Color frame averaging
•
  Transparent Color Mapping (TCM)

General Measurements and Calculations

Distance,Length,Area,Circumference,Volume,Angle,Stenosis %,A/B Ratio,Velocity,Pressure Gradient (PG),Acceleration,Resistivity Index (RI),Heart Rate,Velocity Time Integral (VTI),etc.

Measurements and Calculations Software Packages

Obstetrics,Gynecology,Abdominal,Urology,Endocavity,Vascular,Cardiology,etc.

Optional 3D/4D module

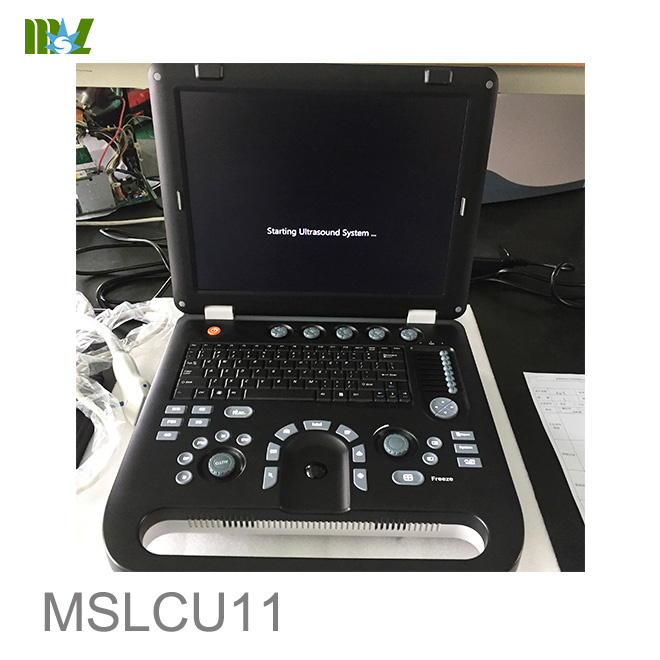

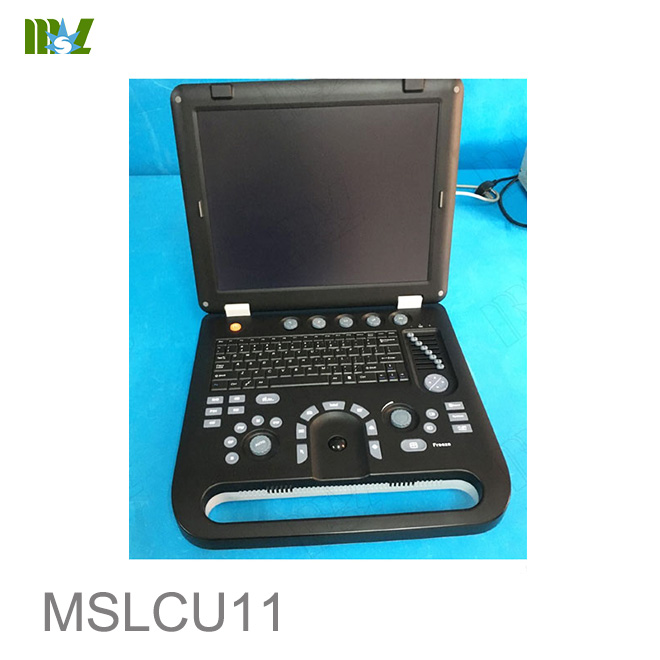

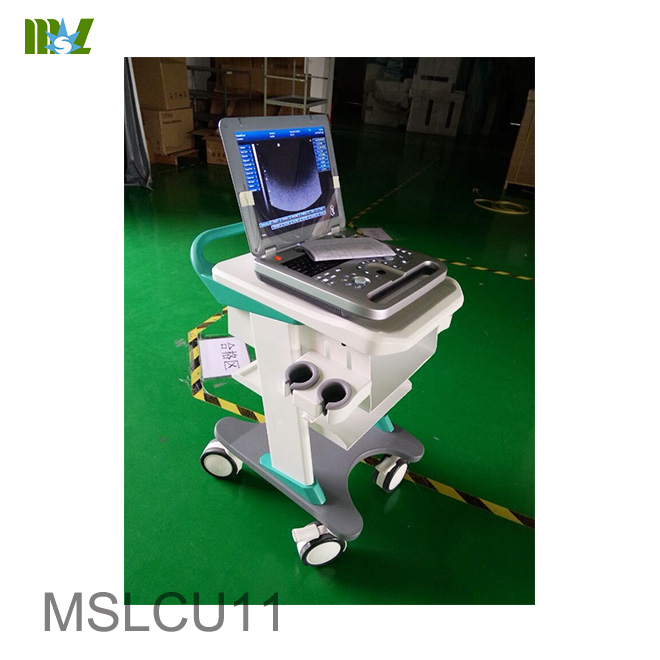

Laptop color doppler 3d ultrasound system-MSLCU11 Product showcase

Expansion interfaces
