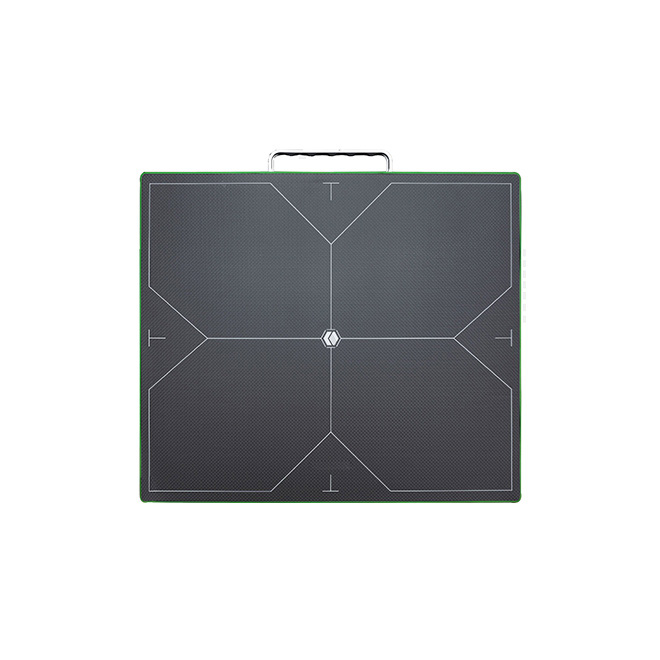

Medical flat panel detector CareView 1500CW

Medical flat panel detector CareView 1500CW

Wireless Cassette
14″ x 17″ Imaging Area
Scintillator Matrix: 2304 x 2816
Pixel Pitch: 154 μm

Medical flat panel detector CareView 1500CW
DQE Performance: > 65% @ 0 lp/mm
Product Dimensions: 38.4 x 46.0 x 1.5 cm

Medical flat panel detector CareView 1500CW Applications

• Medical and Veterinary
• Mobile Healthcare

• MSLCV02 X-ray flat panel detector			Standard
  Power box – US, MSLCV02 power box-small (China)			Standard
  Detector – power box cable, L=5.68m, HDB15 charger and LMEO 19 pin cable			Standard
  Power cable, AC220V，L=1.8m			Standard
  Power cable（USA），AC250V10A，L=1.8m			Optional
  Power cable(EN)，AC220V16A，L=1.8m			Optional
  Sync cable，4pin，L=13m，standard			Standard
  Sync cable，4pin-DB15，L=13m，eCOM			Optional
  Ethernet, L=20m，standard			Standard
  Grounding wire, 14AWG，L=12m			Standard
  F002 grounding rod M6			Standard

Medical flat panel detector CareView 1500CW Special Features

• Magnetic folding handle for easier transport
• Full-field AED for broad system compatibility
• Pre-calibrated panels for easy out-of-box imaging
•
•
•
•
•
