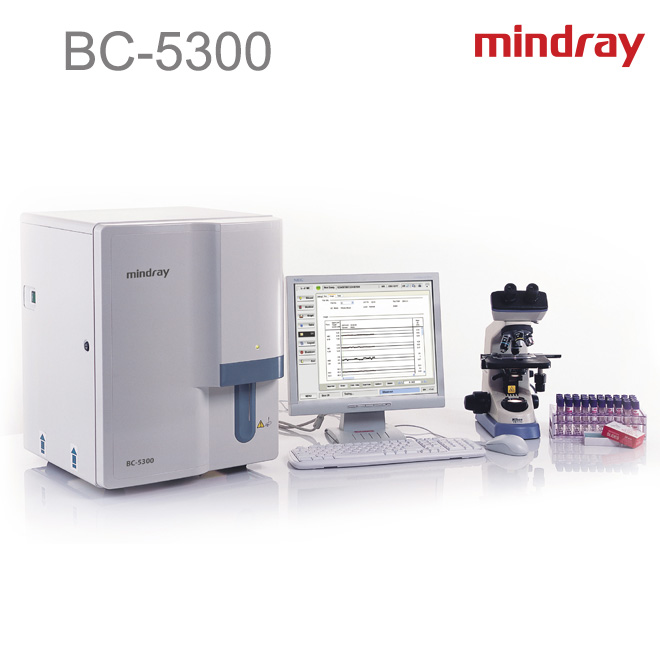

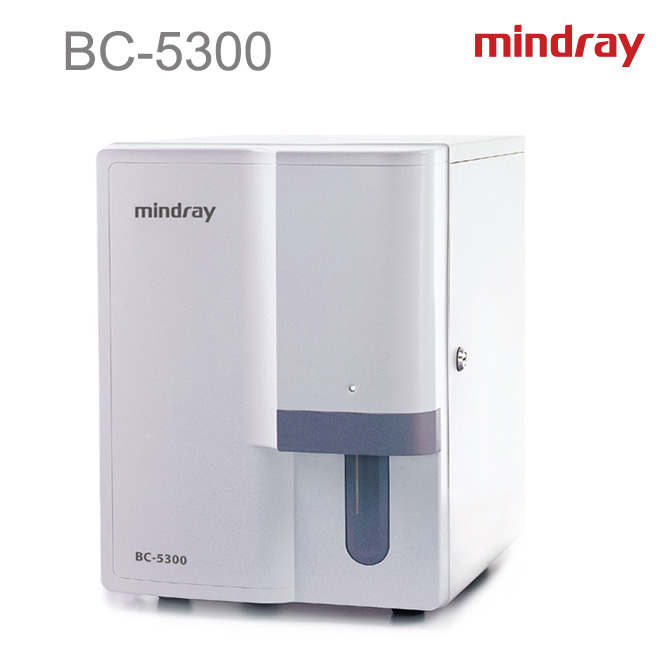

Mindray Auto Hematology Analyser BC 5300

Up to 60 samples per hour

Sample Volume

Whole Blood: 20 μL

Prediluted: 20 μL

Test Mode

CBC CBC+DIFF

Performance

Carryover Precision Linearity

WBC ≤ 0.5%  ≤ 2.0% (4-15 x 10⁹/L) 0.00-99.99 x10⁹/L

RBC ≤ 0.5%  ≤ 1.5% (3.5-6.0 x 10¹²/L) 0.00-8.00 x10¹²/L

HGB ≤ 0.5%  ≤ 1.5% (110-180g/L) 0-250g/L

PLT ≤ 1.0%  ≤ 4.0% (150-500 x 10⁹/L) 0-1000 x10⁹/L

Data Storage Capacity

Up to 40,000 results including numeric and graphical information

Communication

LAN Port supports HL7 protocol

Operating Environment

Temperature: 15°C~30°C

Humidity: 30~85%

Air Pressure: 70~106 kPa

Power Requirement

A.C 100-240V ≤ 300VA 50/60Hz

Dimension and Weight

410mm(L) x 470mm(W) x 530mm(H)

Weight: ≤45 Kg

The new BC-5300 Auto Hematology Analyzer is a bench top system, combining three mainstream technologies: laser scatter, flow cytometry and chemical dye to provide reliable and accurate 5-part differentiation on white blood cells. Tailored for independent labs, BC-5300 is compact, economical and very friendly to use. Only 20uL of blood is enough to have a 27-parameter report within 1 minute. The software also provides arrays of advanced features to enhance lab efficiency, for example, customization on reference range and report formats, patient historical check, workload statistics and LIS connection. BC-5300 requires zero daily maintenance and is equipped with automatic cleaning set-up to make your daily use as comfortable as possible. Semi-conductor laser scatter combined with chemical dye method and advanced flow cytometry 27 parameters for complete 5-part differentiation (CBC+DIFF) on white blood cells including immature cells Compact and no external air pump to avoid noise 20 µL blood sampling for CBC+DIFF test while 15uL for CBC test Up to 60 samples per hour throughput Supports both whole blood and capillary blood samples Windows software with at least 40,000 storage for patient results and 60 files for QC data Customization on reference range, auto-cleaning schedule and report format Support bi-directional LIS connection

White blood cell differentiation The semi-conductor laser system collects forward scatter and side scatter information of white blood cells in a flow cell and differentiates lymphocytes, monocytes, neutrophils and eosinophils according to the cell size and granule complexity. Specific chemical dye treatment to eosinophils can separate from neutrophils in DIFF scattergram. In addition, basophils are measured in an impedance channel upon lysing action on the RBC and other WBC groups.

Advanced impedance measurement for RBC and PLT Mindray patented digital sheath flow and weak signal detection techniques are applied to ensure accurate counting and sizing of RBC and PLT in the impedance channel. Dynamic discriminator adjustment can improve the separation of RBC and PLT groups when large platelet and micro RBC are present. Benefiting from these improvements, MCV, RDW and PLT performance are greatly enhanced.

Flag abnormity

Besides of the routine CBC+DIFF results, BC-5300 offers data result for large immature cell and atypical lymphocytes in infectious diseases. Intelligent flagging system can help doctors fish out suspicious cases for further validation check. For example, microcytosis, anemia, eosinophilia, PLT clump and so on. The manual microscopic check results and morphology description can be print together in the final report.
