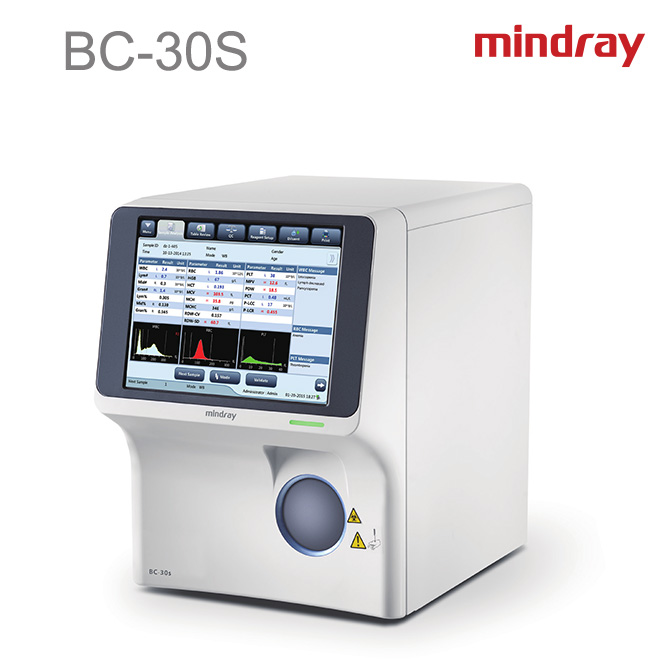

Mindray bc 30s Auto Hematology Analyzer

BC-30s

Auto Hematology Analyzer

Technical Specifications

Principles

Impedance method for WBC, RBC and PLT counting

Cyanide free reagent for hemoglobin test

Performance

Parameter Linearity Range Precision (CV %) Carryover

WBC(10 9 /L) 0-200 ≤3.5% (4.0-6.9) ≤0.5％

≤2.0% (7.0 -15.0)

RBC(10 12 /L) 0-8.00 ≤1.5% (3.5-6.5) ≤0.5％

HGB(g/L) 0-280 ≤1.5% (100 -180) ≤0.5％

MCV(fL) ≤1.0% (70 -110)

PLT(109/L) 0-4000 ≤5.0% (100 -149) ≤1.0％

≤4.0% (150 -500)

Parameters

21 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC,

HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT,

P-LCR,P-LCC

3 histograms for WBC, RBC and PLT

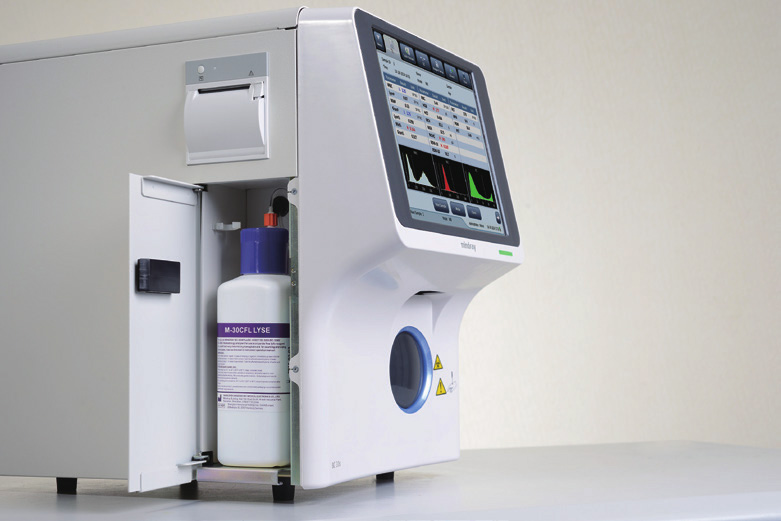

Reagent

M-30D DILUENT

M-30CFL LYSE

PROBE CLEANSER

Sample Volume

Prediluted mode 20μL

Whole blood mode 9 μL

Throughput

70 samples per hour

Display

10.4 inch TFT Touch Screen

Multi-language

Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia

Data Storage Capacity

Up to 500,000 results including numeric and graphical information

Communication

LAN Port supports HL7 protocol

Support bi-directional LIS

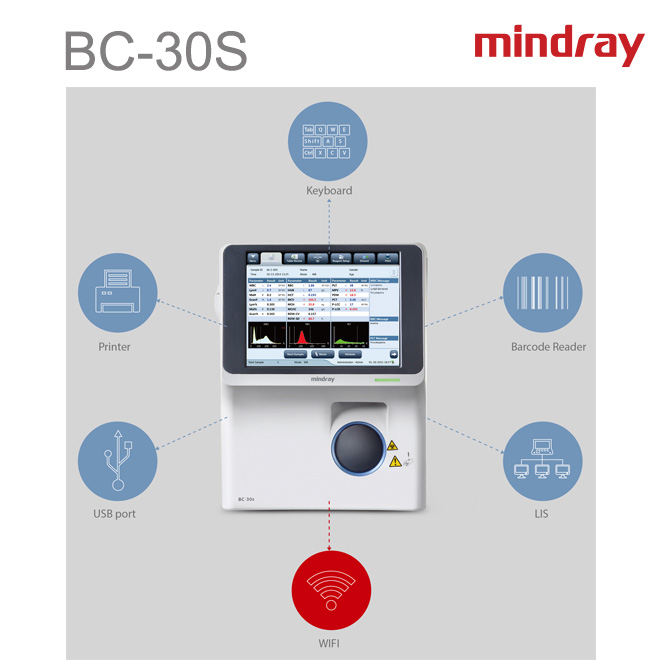

Interface

4 USB port (for external printer, software upgrade, barcode reader,

WIFI adapter,keyboard and mouse), LAN port (1)

Printout

Thermal recorder, 50 mm wide paper, various printouts formats

External printer optional

Operating Environment

Temperature: 10°C~40°C

Humidity: 10%~90%

Air pressure: 70kPa～106kPa

Power Requirement

100V-240V

≤300VA

50Hz/60Hz

Dimension and Weight

Dimension: Depth(410 mm) x width(300 mm) x height(400 mm)

Weight: ≤20Kg

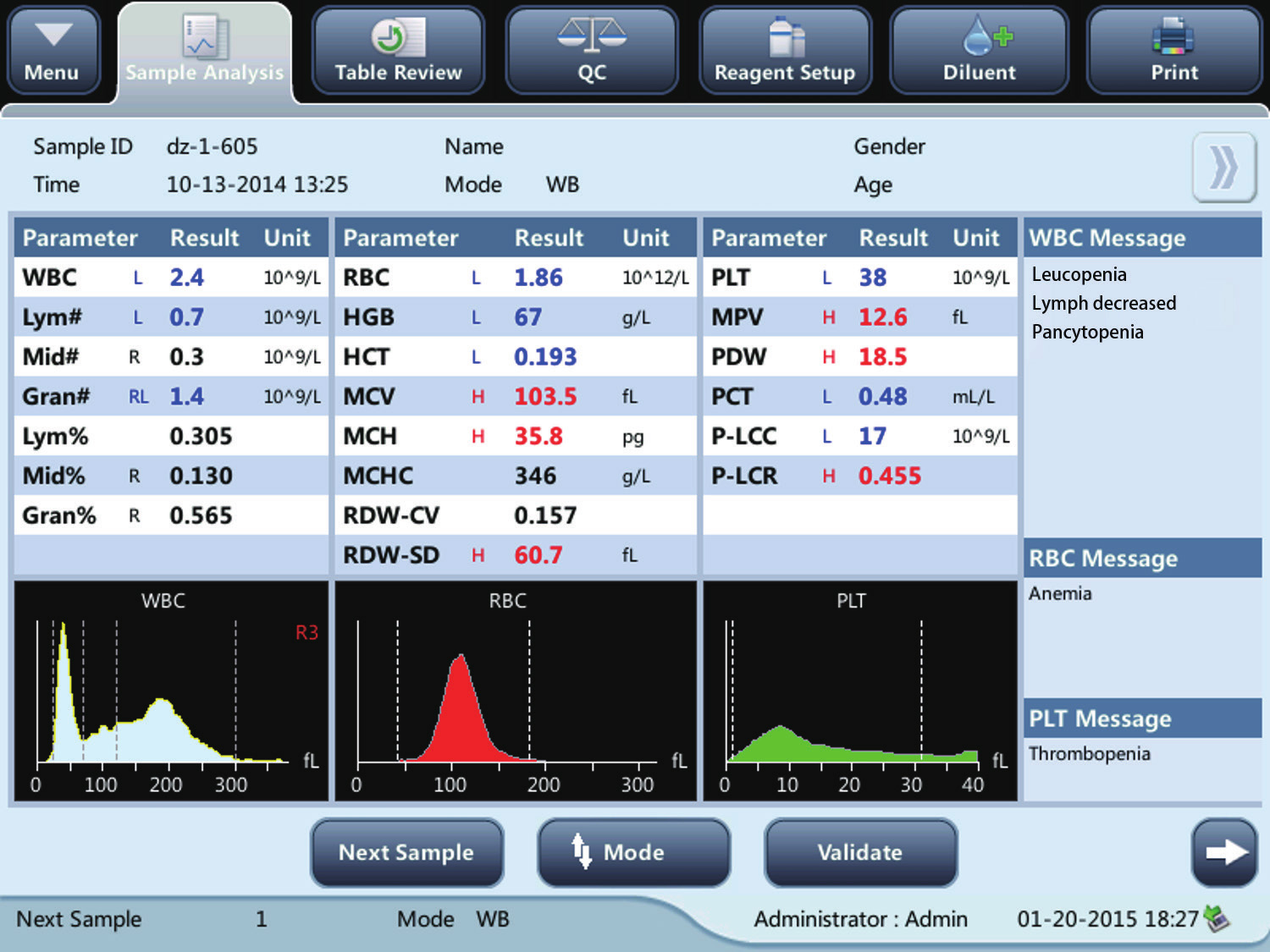

Sample 1  : BC-30s shows fags“Leucopenia” , ” Lymph decreased”,“Pancytopenia” which mean white blood cell decreased, the low number of Lymphocyte and decreased of leukocyte, erythrocyte and plate count. Meanwhile “R3” fag is also displayed. Two kinds of fag messages are both supported to ensure clinicians have better understanding of sample results.

Sample 2  : Flag “Anemia” means that the sample has the possibility of anemia.

Sample 3  : Flag “Throm- bopenia” indicator is shown together with Platelets low fag.
