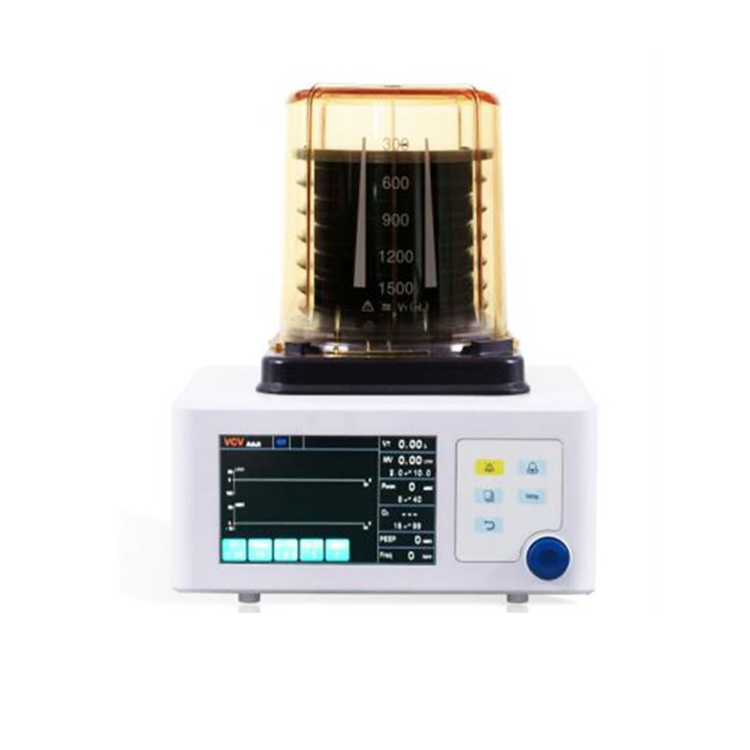

Anesthesia Ventilator equipment MSLGB01

It provides the physician with a flexible, simple and easy-to-use ventilator

for closed circuit AND semi-close circuit. All the selected patient parameters

are clearly visible on large, bright LCD displays. The audio-visual alarm

system contains improved alarm features — including alarm mute.

Best Anesthesia Ventilator equipment MSLGB01 Technique Specifications

Main Features:

Provide A/C ventilation to the patient in the process of operation or in recovery

after the operation.

Applied for adult and pediatric

Microprocessor controlled ,integrated anesthetic ventilation system

7 inch TFT display screen

Safety Good air tightness, high reliability

Main specifications:

Electronically controlled, pneumatic driven

Patient spectrum: pediatric to bariatric

Ventilation mode: IPPV, SIMV, MANUAL(BAG)

Tidal volume:Adjustment range 0-1500ml

I:E ratio: 4:1-1:8

Frequency:

Adjustment range: 1-100bpm

Under IPPV and Manual mode: 4~65bpm

Under SIMV: 1-40bpm

Monitoring:

VT, MV, BPM, Paw, FiO 2 , PEEP, Respiratory Frequency, I:E ratio, Ppeak

Waveform:

Pressure- time, Flow- time

Power: AC 220V±10%, 50HZ±2%, built-in battery > 2hrs(rechargeable) 12V

Inspiratory time (TI) (at SIMV)

— Adjustment range: 0.2 s ～ 6.0 s （the limit of I:E ratio ≤ 4）

Pressure trigger: － 20 cmH2O ～ ＋ 20 cmH2O

Pressure limit:

Patient airway pressure range: -2KPa~10KPa

Airway pressure monitoring range: 0~10KPa

Safety valve pressure limit: 6Kpa

Alarm: High(low) pressure alarm, High(Low) MV alarm, AC power lost alarm
