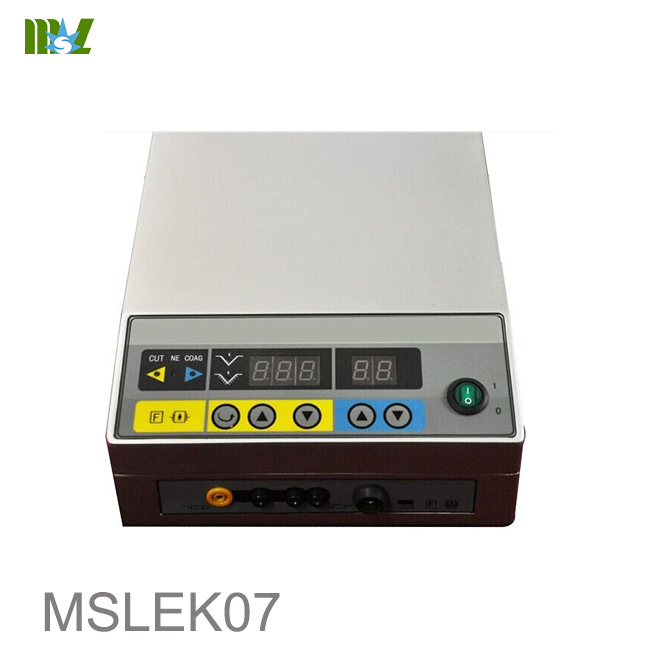

Bipolar / Monopolar Electrosurgical Generator MSLEK07
MSL Bipolar / Monopolar Electrosurgical Generator MSLEK07 Features
Maximum output power: 200W
Three output modes: (1) pure cut, (2) mixed cut 1, (3) electrocoagulation;
Pure cut: Maximum output power 200W, enabling on dermatology and oral surgery;
Mixed cut: Applicable for any tissue, good coagulation effect when conducting cutting;
Electrocoagulation: Applicable for fine surgical point coagulation, featuring excellent coagulation effect;
Panel operation: Two-zone (LED) digital display, key power settings, and waterproof panel design;
Application range：Used in dermatology, stomatology, general minor surgery, etc
Cheap Bipolar / Monopolar Electrosurgical Generator MSLEK07 Technical parameters
Safety standard I-type BF-type
Ambient temperature range +10℃~ +40℃
Relative humidity range 30~75%
Atmospheric pressure 700~ 1060 hPa
Power supply 220V ± 22V 50Hz ± 1Hz
Operating frequency 530KHz±2 Load: Monopolar cut coagulation 300Ω
Rated output power a)Pure cut: 1W ~ 200W（Peak voltage 1000V） b)Mixed cut 1: 1W ~ 120W（Peak voltage 1500V）
c)Electrocoagulation 1: 1W~99W（Peak voltage 2000V）
Overall energy consumption ≤1400VA
Transport and storage a)Ambient temperature range: -40℃~ +55℃ b) Relative humidity range: ≤93%
c)Atmospheric pressure range: 500hPa ~1060hPa
Best Bipolar / Monopolar Electrosurgical Generator MSLEK07 Standard configuration sheet
1 host 2 electric knives 5 disposable neutral plates
1 neutral electrode connecting 1 power line 1 medical foot switch

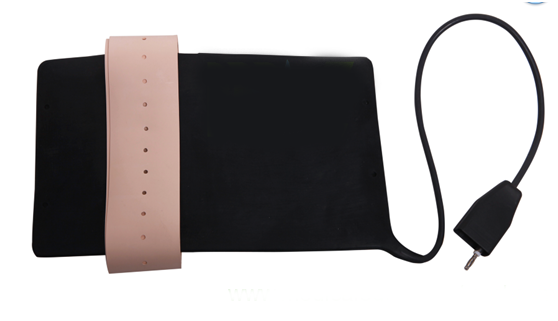

Reusable ESU Pad for Electrosurgical Unit
Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.
The material is non-cytotoxic, without stimulus and sensitivity.
Neutral electrode cable : 3m

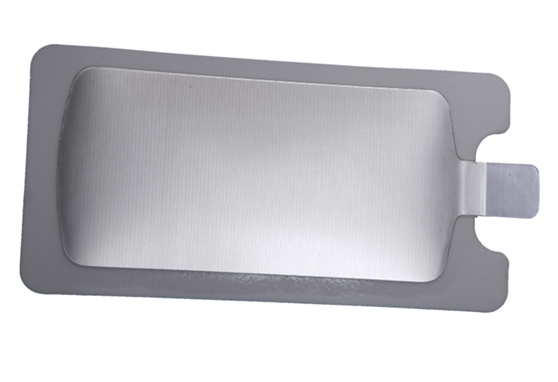

Disposable ESU Plate for Adult
Excellent adhesive and conductance.
Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.
The material is non-cytotoxic, without stimulus and sensitivity.

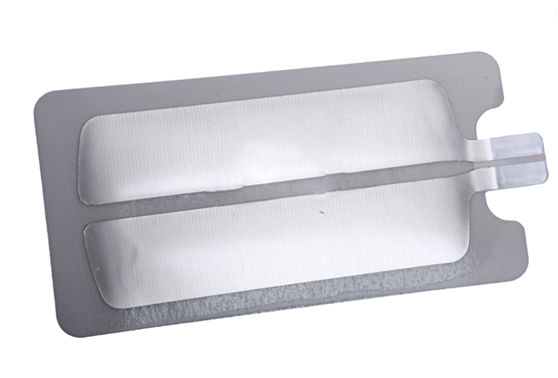

Best Durable Disposable Grouding Pads for Adult
Excellent adhesive and conductance.
Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.
The material is non-cytotoxic, without stimulus and sensitivity.

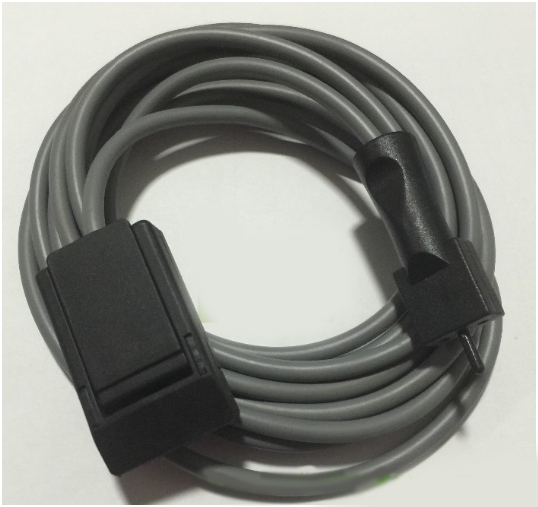

ESU Neutral Plate Cable
Compatible with electrosurgical generator, radio frequency generator and other high frequency unit.
Patient Plate cable : 3m.

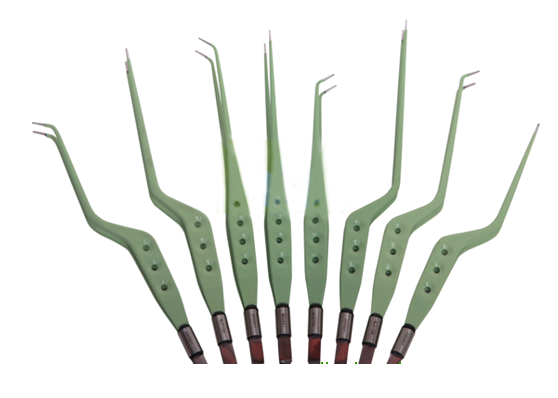

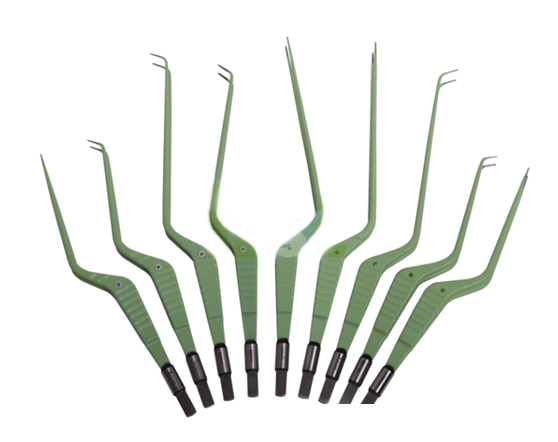

ESU Bipolar Forceps
High precision, tissue preserving preparation instrument
Stainless steel , Titanium, and Non-stick
Stronger tension of the forceps allows for tissue spreading and dissection
A variety of patterns, lengths and tip size: Straight/ Bayonet forceps
Specialty forceps available for specific electrosurgery needs
Total Length:110mm/195mm/220mm for choice

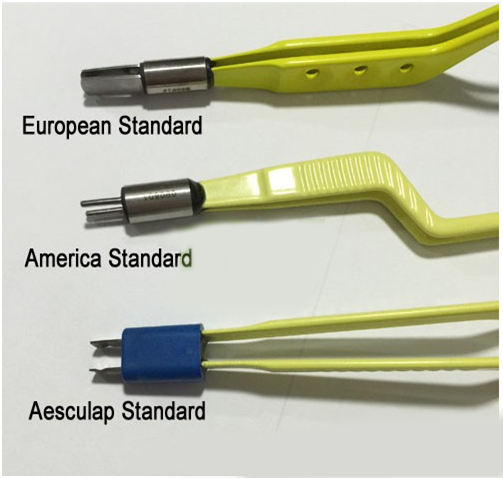

Tap Connector: Europe Standard /America Standard/ Aesculap Standard
Different Color: Black/Blue/Yellow/Gray

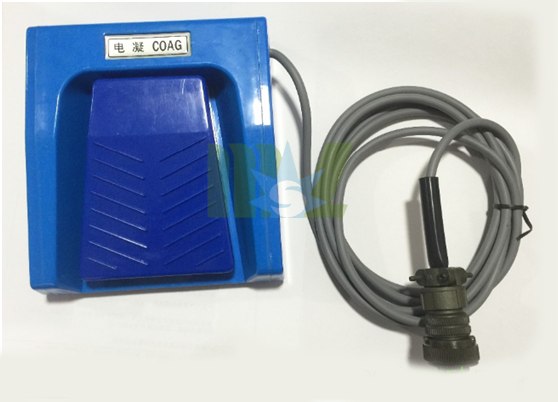

Single Pedal Footswitch for Medical Equipment
Comfortable design and light weight.
Single pedal /double pedal control.
Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.
The material of pedal is ABS.
Length of cable : 3m.

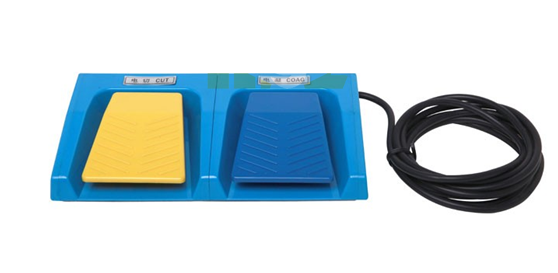

High End Double Pedal Electrosurgical Unit Footswitch
Comfortable design and light weight.
Single pedal /double pedal control.
Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.
The material of pedal is ABS.
Length of cable : 3m.

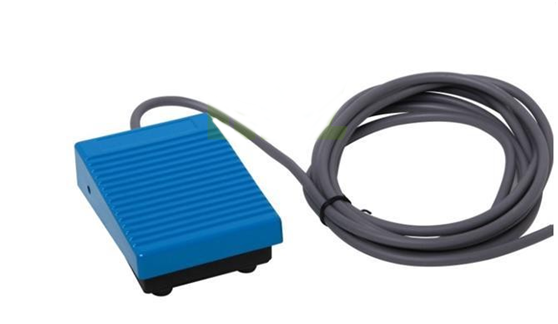

Single Pedal Footswitch for Medical Equipment
Single pedal /double pedal control.
Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.
The material of pedal is ABS.
Length of cable : 3m.

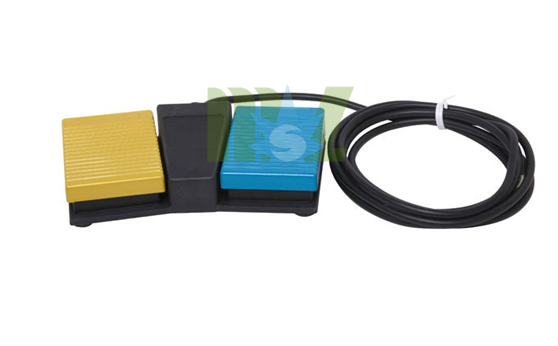

Waterproof ESU Footswitch for Surigical Instruments
Single pedal /double pedal control.
Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.
The material of pedal is ABS.
Length of cable : 3m.

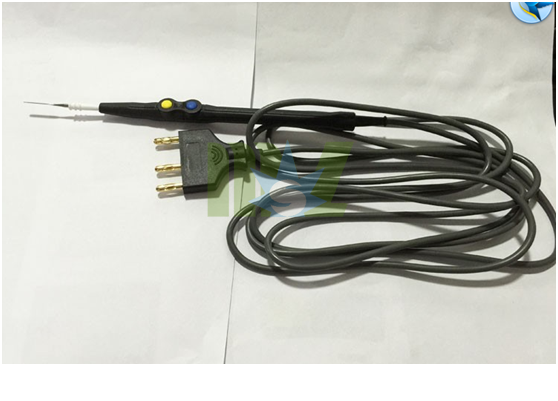

Reusable Hand Control Electrosurgical Pencil for Electrosurgical Unit
Hand control/foot Control color marked button
Hexagonal electrode connection
Length of cable : 3m
Banana connector(one-pin or three-pin)
Length of stainless steel blade : 24 cm
Length of ABS handle : 160mm
Function: cutting & coagulation

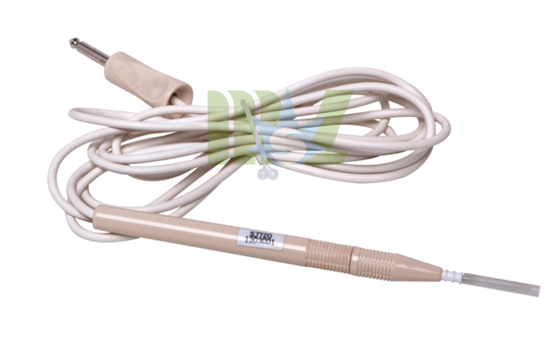

Reusable Medical Supplies Electrosurgical Pencil
Hand control/foot Control color marked button
Hexagonal electrode connection
Length of cable : 3m
Banana connector(one-pin or three-pin)
Length of stainless steel blade : 24 cm
Length of ABS handle : 160mm

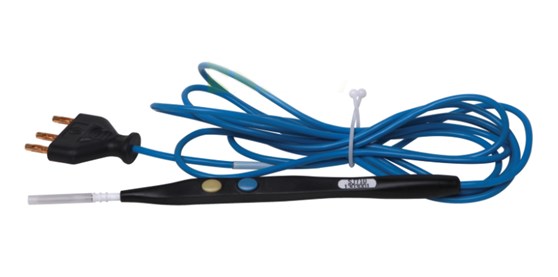

Hand Control Electrosurgical Pencil
Hand control/foot Control color marked button
Hexagonal electrode connection
Length of cable : 3m
Banana connector(one-pin or three-pin)
Length of stainless steel blade : 24 cm
Length of ABS handle : 160mm
