MSL Usb Ultrasound Probe MSLPU39 | Abdominal USB Ultrasound Probe for sale

Usb Ultrasound Probe MSLPU39 | Abdominal USB Ultrasound Probe

MSLPU39 is work with computer(windows) or tablet/phone(Androi), connect by USB Cable.

It with very clear image.

MSL Usb Ultrasound Probe MSLPU39 Feature:

-Smalle and light

-Full digital imaging technology, crystal-clear Image

-Work with windows system computer or tablet

-Abundant functions, powerful report management

-Suit for emergency, clinic, outdoor outdoor and vet inspection

Best Usb Ultrasound Probe MSLPU39 Specification:

1. Scanning type: Electronic convex array scanning

2. Scanning mode: B, B/B, B/M, M, 4B

3. Probe type: Convex array probe, Radius 60mm, Frequency scope: 2.0 MH～4.5 MHz

(Center Frequency 3.5MHz, 80 elements, USB connect

4. Operating System: User’s computer or tablet, Win XP, VISTA, WIN7, WIN8, Wind10.

5. Software language: Chinese/English, switchable

6. Multi-frequency switch: 2.0MHz, 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 4.5MHz。

7. Focus: Electronic focus selection

8. Six kinds application preset: General, Gynecology, Obstetrics, Cardiology, Small parts, Urology

9. Image Processing

   Pre-processing: Frame Correlation, Dynamic Rang, THI, Smoothing and sharpening

   Post-Processing: γ adjustment

10. Image Magnification: 1.0, 1.2, 1.5, 2.0

11. Gain Adjustment: Total Gain and Steps Gain adjustment

12. Measurement and Calculation

    B mode: distance, circum, area, volume, angle, ratio, stenosis, profile, histogram;

    M mode: heart rate, time, distance, slope and stenosis;

    Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;

    Obstetric: gestation weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), fetal weight, AFI;

    Cardiology: LV, LV function, LVPW, RVAWT;

    Urology: transition zone volume, bladder volume, RUV, prostate, kidney;

    Small parts: optic, thyroid, jaw and face.

13. Image save and Cine loop memory: HDD Save/Preview image files (JPG), Data files preset,

512-frame memory，manual/automatic cine loop

14. Image flip: Left/right Mirror Horizontally Flip, Up/down Vertically Flip

15. Notation: Date, Time, Name, Patient ID, Age, Doctor, Hospital Name; Full screen annotation edit;

Probe direction mark; Body mark

16. Image report and print function

18. Continues working time: Max. 8 hours

19. Probe dimension and weight:

    a) Probe size：23mm×150mm×70mm

    b) Cable Length: 190cm

    c) Weight: 0.2 KG

Standard Configuration:

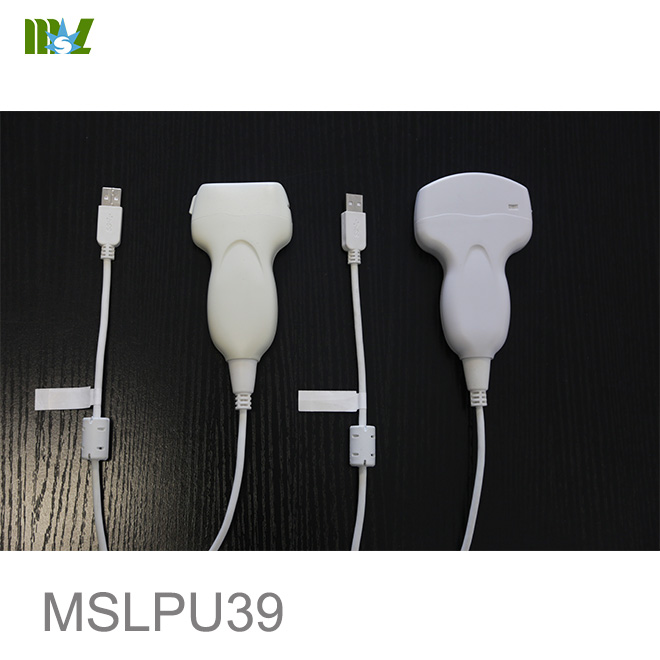

-Convex probe(R60, 3.5MHz) 1pcs

-Software disk 1pcs

Optional:

-Computer, tablet

-Ultrasound keyboard
