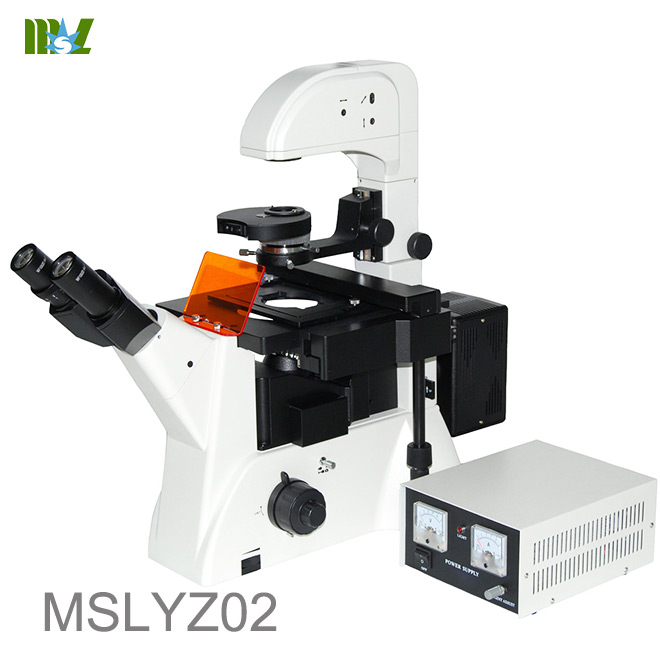

MSYZ02 Inverted fluorescence microscope for fluorescence observation

Characteristics and applications

MSYZ02 Inverted fluorescent microscope is composed of Epi-fluorescent microscope and inverted microscope, equipped with excellent UIS optical system and adopted long working distance plan achromatic objectives and wide field eyepieces. Compact and steady main body represents the request of anti-shake during in the operation of observation, the condenser system can be rotary move is make sure the high culture dish not be tainted during the cell of view. The Epi-fluorescence microscope system is designed with modularization function notion, so it can be safely and quickly adjust the fluorescence illuminating system and switching-over fluorescence filters. The Inverted fluorescent microscope is suitable for the field of fluorescence observation, such as cell tissue, transmitted liquid tissue, the biological pharmacy, medicine checking and measure and disease prevent.

MSYZ02 Inverted fluorescence microscope for fluorescence observation

Main parameters total magnification 100X-400X (standard)

Mechanical tube length ∞

Conjugate distance of objective ∞

Eyepiece Wide-field eyepiece WF 10X field of view number Ф22mm Eyepiece interface Ф30mm Parfocal distance 10mm

Trinocular Hinged binocular tube, with an observation angle of 30°, and a pupil distance of 53-75mm

Objectives Magnification N．A． W．D (mm) Thickness of cover glass (mm) Remarks

10X 0.25 4.3 1.2

20X 0.40 8.0 1.2

40X 0.60 3.5 1.2

Phase-contrast objective 10X 0.25 4.3 1.2 Remark “PHP2”

20X 0.40 8.0 1.2 Remark “PHP2”

40X  0.60 3.5 1.2 Remark “PHP2”

Nosepiece Quintuple

Condenser Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit

Epi-fluorescent illumination system Power supply unit, 110V or 230V can be selected. 100W/DC Mercury lamp

Fluorescent filters

Group Type Wavelength of excitation light Wavelength of emitted light

V+UV Violet light (V) 395nm~415nm 455nm

Ultraviolet light (UV) 330nm~400nm 425nm

B+G Blue light (B) 420nm~485nm 515nm

Green light (G) 460nm~550nm 590nm

Transmitted illumination system Turnplate phase contrast condenser,  working distance is 55mm

6V30W halogen, brightness enable control

Stage Mechanical Stage, moving range 77mm (longitudinal)X134mm (transverse), detachable stage moving device

Culture dish holder Holder 1 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm

Holder 2 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm

Holder 3 57mm (W)X82mm (L)

Light source Transmitted lighting 6V 30W halogen lamp, adjustable in brightness
