Musculoskeletal ultrasound course : sonografia obstetrica chison eco 2

Musculoskeletal ultrasound course : sonografia obstetrica chison eco 2

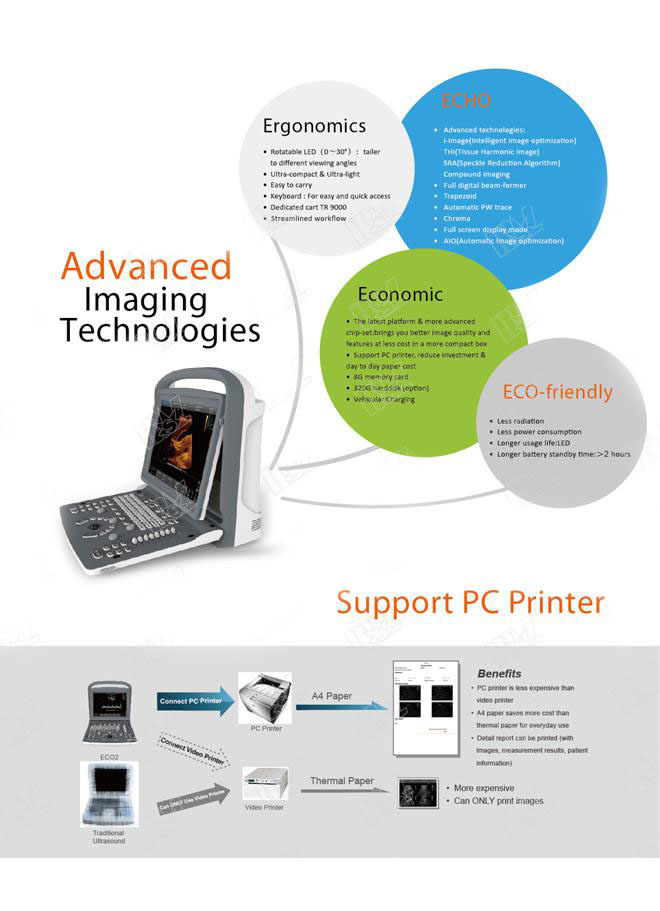

Musculoskeletal ultrasound course : sonografia obstetrica chison eco 2 Advanced Imaging Technologies

sonografia obstetrica chison eco 2 ERGONOMICS

• Rotatable LED（0～30°）：tailer to different viewing angles

• Ultra-compact & Ultra-light

• Easy to carry

• Keyboard : For easy and quick access

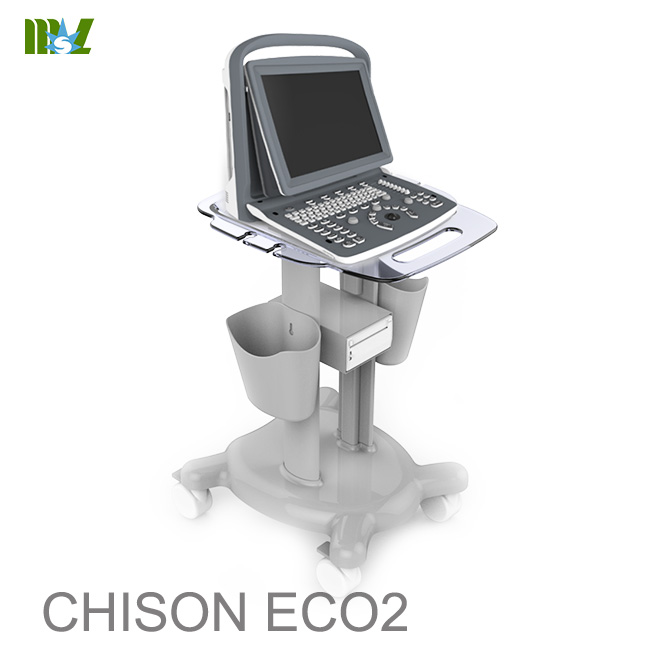

• Dedicated cart TR 9000

• Streamlined workflow

sonografia obstetrica chison eco 2 ECHO

• Advanced technologies:

  i-Image(Intelligent image optimization)

  THI(Tissue Harmonic Image)

  SRA(Speckle Reduction Algorithm)

  Compound imaging

• Full digital beam-former

• Trapezoid

• Automatic PW trace

• Chroma

• Full screen display mode

• AIO(Automatic image optimization)

sonografia obstetrica chison eco 2 ECONOMIC

• The latest platform & more advanced chip-set:brings you better image quality and features at less cost in a more compact box

• Support PC printer, reduce investment & day to day paper cost

• 8G memory card

• 320G harddisk (option)

• Vehicular Charging

sonografia obstetrica chison eco 2 ECO-FRIENDLY

• Less radiation

• Less power consumption

• Longer usage life:LED

• Longer battery standby time:＞2 hours

Musculoskeletal ultrasound course : sonografia obstetrica chison eco 2 Applications :

Abdomen,OB/GYN,Vascular, Small parts(breast, testicles,  thyroid),Musculoskeletal Conventional & Superficial, Pediatric, Basic Cardiac

Imaging  technologies : i-Image, SRA, Compound, THI

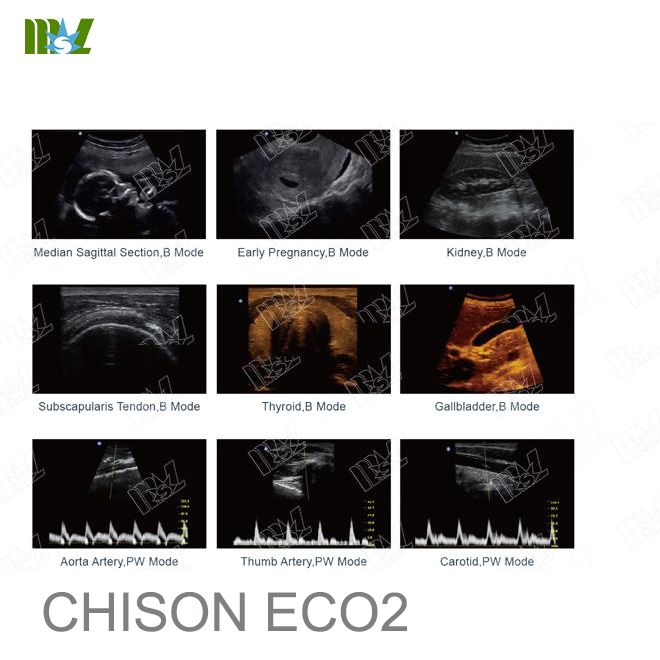

Display  Modes : B, B/B, 4B, M, B/M,PW

Gray Scale : 256 Levels

Scanning  Depth : 240mm Max (depend on the probe types)

Probe  Frequency : 2.5 MHz – 11.0 MHz (Depend on the probe)

Cine Loop : 256 frames

Zoom : 4 steps

Software  Packages : Dedicated measurement package: General ,OB/GYN, URO，Cardiac, Vascular,  Small parts

Archives  Management : Patient information management, images record, exam report

Power Supply : AC 100V-240V, 50Hz- 60Hz

Standard Configuration :

1 probe connector, 3 USB ports,VGA port,Video port, LAN port,

Full Screen Display Mode, i-Image,Chroma, SRA, Compound imaging,THI,

8G memory card, PW Mode

Option : 2 probe connectors, DICOM 3.0, Water-proof keyboard cover, Carrying Case (BG

 —100 ),Cart TR 9000, Support PC Printer, Video Printer, Built-in Battery
