Nuevo sistema de anestesia MSL MSLGA22 en venta

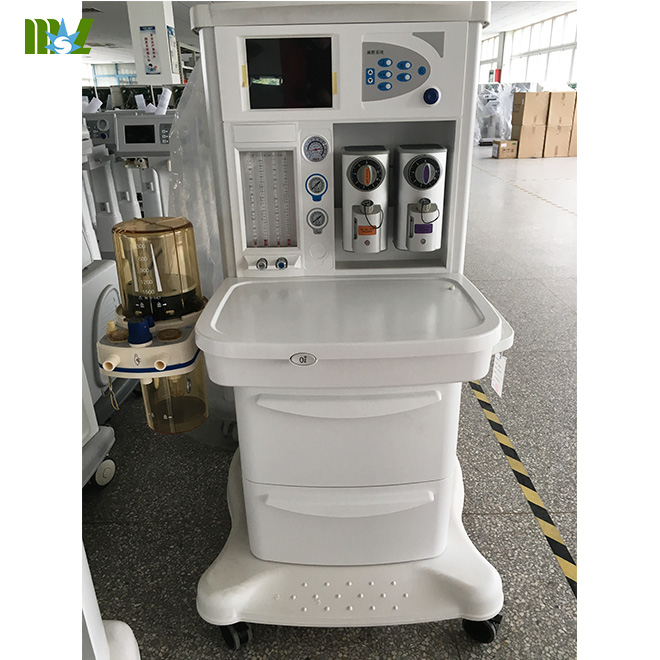

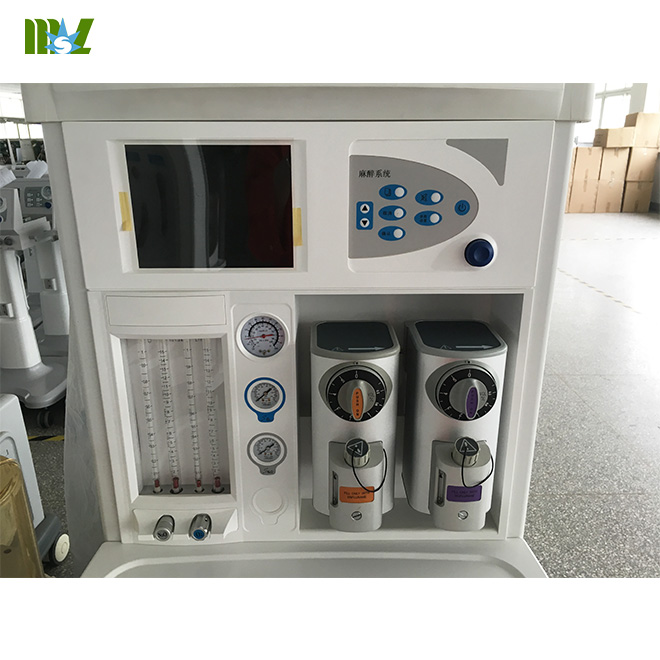

New Anesthesia System MSLGA22

8.4 inch colour LCD screen

Compact Anesthesia ventilation system with the standard of ISO 9001:13485

Easy to operate, user friendly

Ventilation parameters monitoring, preset parameters, alarm indication

and breathing waveform monitoring

Support adult and pediatric

Applied for closed, semi-closed, semi open inhalation anesthesia controlled

or assisted ventilation

2 gas sources

Prospective service and support

Chenwei is the trusted partner for professionals who rely on our quality assurance,

wide level range and high technology. Today we are very proud to share with you our core

products, which are dedicated to providing professional assortment and solutions

for ICU and operation room.

We offer a highly professional after-sales support provision also provide technique

supports according to customers’ needs. Training courses are available of the service

packages, managed by experienced training officers. The after-sale service department

delivers fast response times and cost-effective maintenance programs without fears in

the rear.

Technique Specifications

Minute volume range  >18L/Min

Physical specifications  SIGH range  0-5/100

Dimensions:  70*85*140cm  System Standard

Weight:  65kg  Hypoxic guard system  N2O cut-off valve, O2 concentration <25%

Casters:  Central brake with lock  Safety valve  <12.5kPa

Screen:  LCD  Fresh gas compensation  25-75L/min

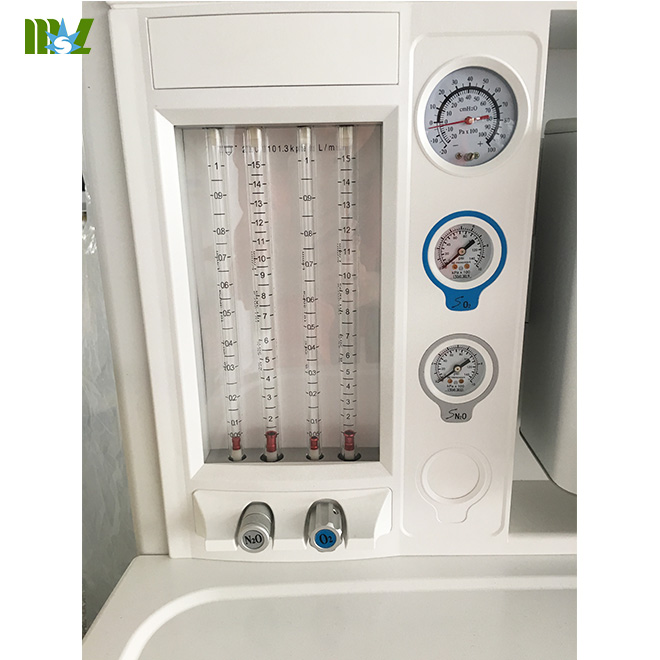

Display  8.4 inch Flow meter  Cascade, 0-10L/min

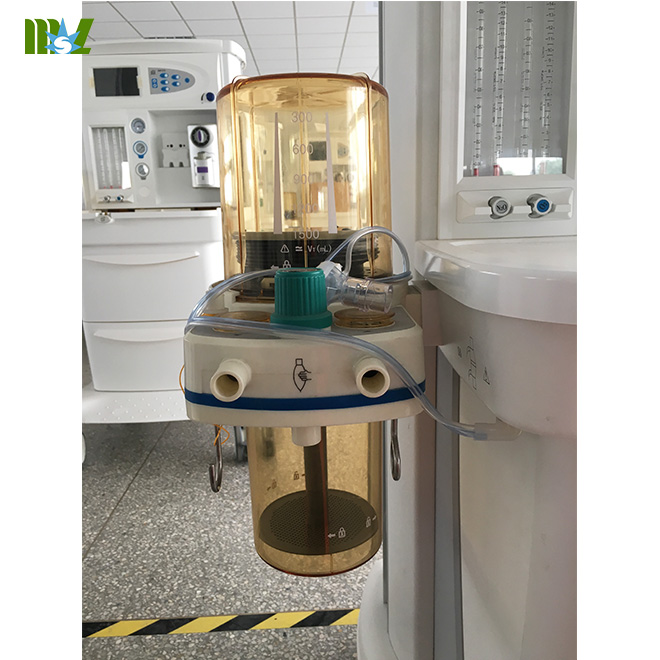

Display graphics  Waveforms of P-T, F-T, V-T, loops of P-V,V-F,F-P Volume of CO2 absorber  1.5L

Monitoring

VT, MV, BPM, Paw,

Lung compliance,FiO 2  (Optional)

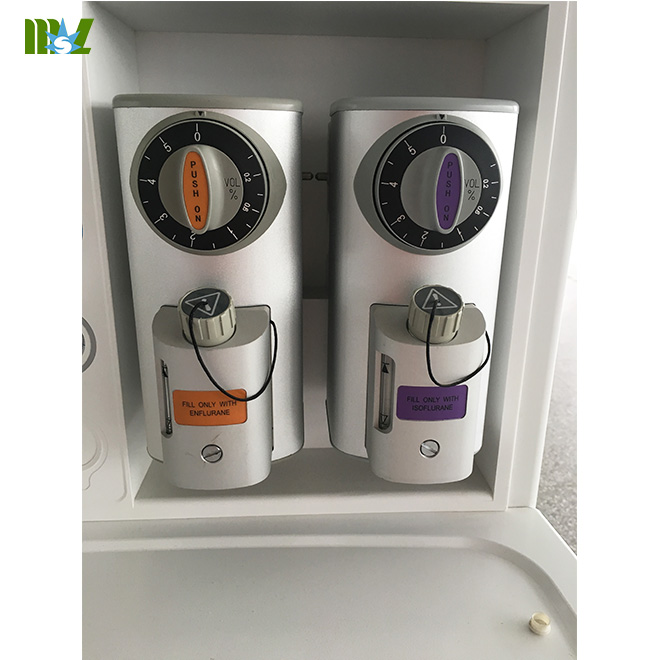

Vaporizer

2 Selectetac, maximum 2 mounts

(Isoflurane/Enflurane/Sevoflurane/Halothane)

Working specifications  Alarm Limits

Power  AC 220V±10%, 50Hz±2%  Audio/Visual

No tidal volume, MV,Paw, FiO 2 limitation O 2,

Air failure, AC power failure, backup low

Output pressure  0.4±0.1MPa  Pipeline supply

Current  500mA max

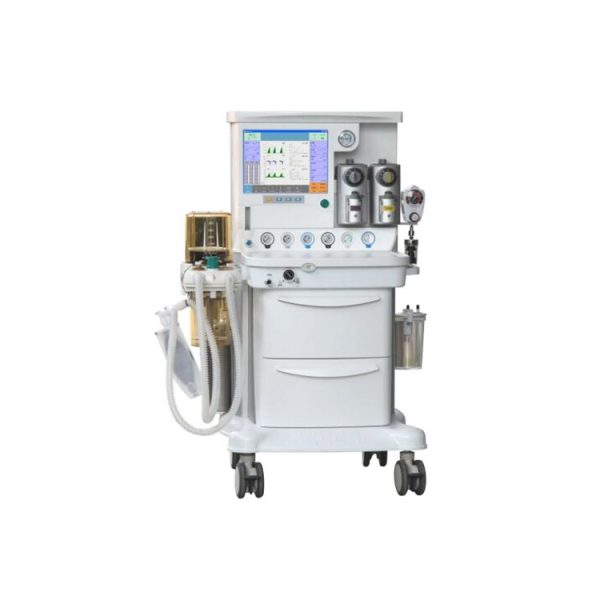

Relate hot sale and cheap portable anesthesia machine
