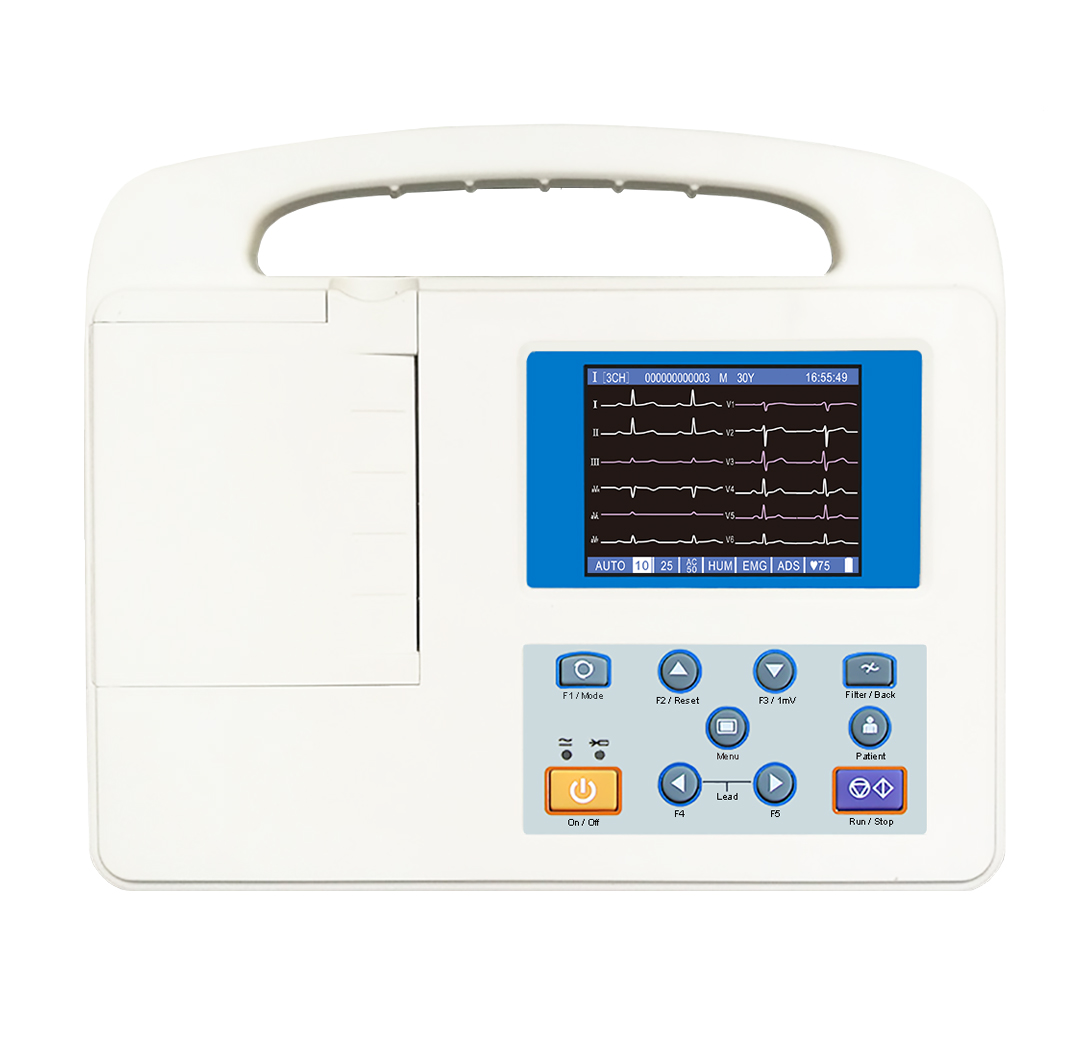

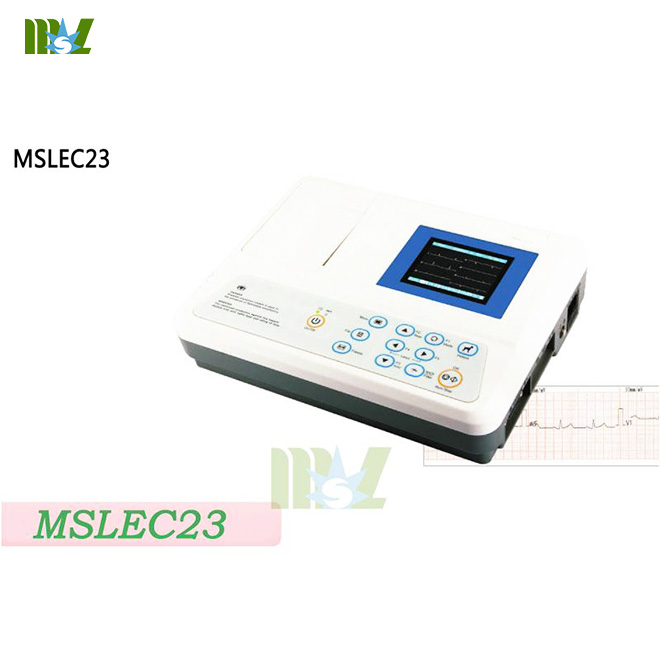

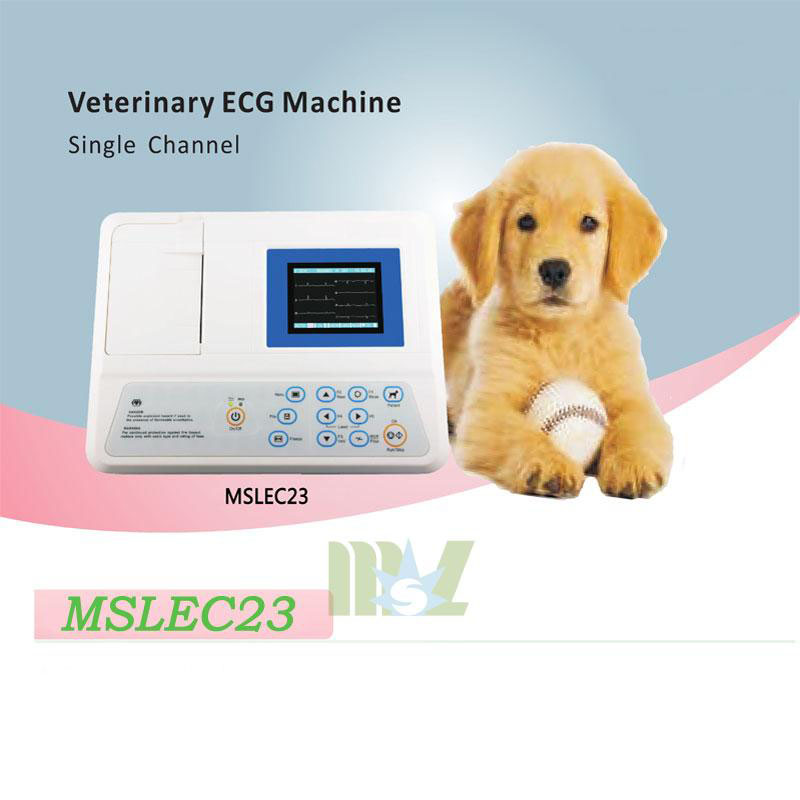

one lead veterinary ecg machine for sale MSLEC23

MSL one lead veterinary ecg machine MSLEC23 Features ：

7 leads synchronously acquisition and record,excellent auto-interpretation function

High accuracy digital filter,auto-baseline adjustment

Working modes:Manual/Auto/R-R Rhythm

Recording mode:1ch,1ch+

320×240 graphic,3.5 inch color LCD to display detailed ECG information

250 cases storage and replay ( SD card storage is optional )

Built-in rechargeable Ni-MH battery supports continuous work for about 3 to 4 hours.

50mm*20m high resolution thermal printing

Rs232 and USB interface ( USB disk storage,laser printer printing ,Veterinary PC ECG software are optional )

300mm*230mm*75mm,2.8kgs

ecg machine MSLEC23 Technical Specification：

Lead Standard 7 leads Time constant ≥3.2s

lead acquisition 12bit/1000Hz (synchronously 7 leads) Frequency response 0.05～160Hz(-3db)

Work mode Man / Auto/R-R Rhythm Noise level ＜15μVp-p

Filter AC Filter : 50Hz / 60Hz Inter-channel Interference ≤0.5mm

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR ≥120dB (with AC FILTER) Sensitivity 2.5，5，10，20, 40, Auto  (mm/mV)

Input circuit Floating; Protection circuit against Recording mode 1ch, 1ch+

Defibrillator effect Default Man. Mode is  1ch  format

　 Default Auto. Mode is  1ch+  format

Input Impedance ≥50MΩ Paper speed 6.25、12.5、25、50mm/s（±3％）

Input circuit current ≤0.05μA Paper  50mm *20m Roll paper

Patient current leakage ＜10μA Communication RS232/ USB port

Calibrating voltage 1mV±2％ Power Supply AC 75-265V(±10%),50/60Hz（±1Hz),40VA

DC Built-in rechargeable battery,12V(1500mAh)

Voltage tolerance ≥±500mV Dimension/Weight  300mm×230mm×75mm / 2.8Kg


one lead veterinary ecg machine MSLEC23 Package：

1 unit / small carton :  40cm*34cm*22cm,   net weight 2.8kgs,    gross weight 4.5kgs

4 units / big carton :   70cm*41cm*46cm,   net weight 12kgs,    gross weight 20kgs

Portable three Channel Electrocar​diograph /  ECG machine  MSLEC16 Package：

1 unit / small carton :  40cm*34cm*22cm,   net weight 2.8kgs,    gross weight 5kgs

4 units / big carton :   70cm*41cm*46cm,   net weight 12kgs,    gross weight 22kgs
