Our full line of microplate readers analyze samples using photometry, fluorometry, luminometry

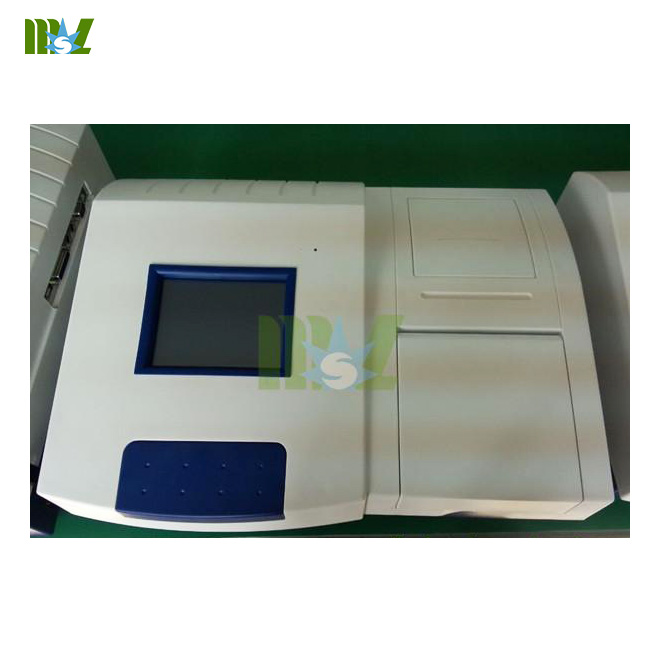

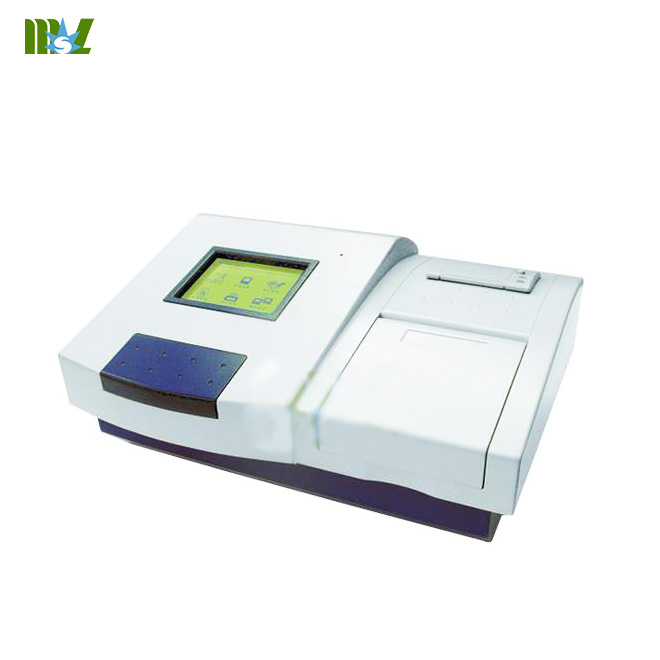

elisa microplate reader / microplate reader function in MSLER01

elisa microplate reader Main Features:

1.Graphical operating interface, menu designed for convenient use

2.High brightness and large size LCD, with touch screen input

3.Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen

4.Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas

5.Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately.

6.Performing 12 different tests just in one plate

7.Multi-forms in result output including patient comprehensive report.

8.Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost.

9.Optional external mouse and standard keyboard.

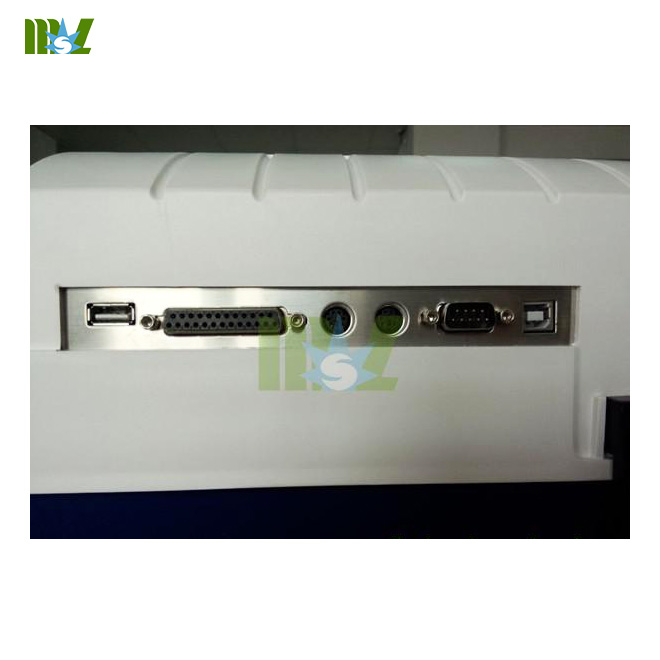

10.With RS-232 interface and parallel interface.

11.Easy connect to PC , comprehensive functions with WorkStation PC software.

elisa microplate reader Technical Specifications:

1.Photodetector: Silicon Photodicode

2.Light source: Controlled Tungsten Halogen Lamp.

3.Wavelength range: 400nm~750nm.

4.Indication range: 0.000~4.000

5.Resolution: 0.001OD

6.Accuracy: ≤±0.008A

7.Reproducibility: ≤±0.2%

8.Standard filters: 405,450,492,630nm

9.Additional filters: on request, filterwheel for up to 8 filters

10.Sharking: Linear Sharking , 3 speeds

11.Display: 320 × 240 LCD

12.Interface connections: serial RS-232, parallel interface

13.Power supply: 198~242V, 50~60Hz

14.Size: 460×350×197mm

15.Weight: 10kg

elisa microplate reader performance technology
