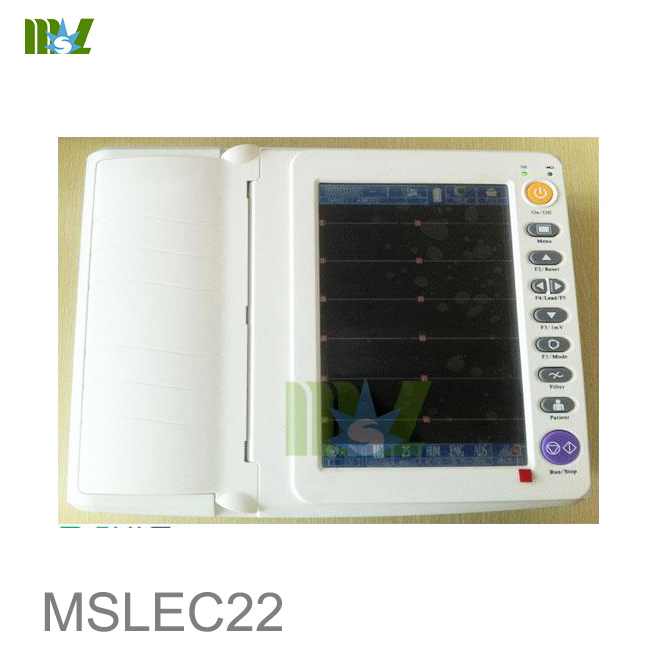

Portable 12-lead ECG recorders / Portable twelve lead ecg MSLEC22 for sale

Portable 12-lead ECG recorders MSLEC22 Features ：

Portable delicate design,big color LCD to display,soft silicon key and touch screen to operate,very convenient

Accurate pulse pace identification and excellent auto-interpretation function

High accuracy digital filter,auto baseline adjustment

12 leads synchronously acquisition and display;Recording mode:3ch+++,6ch,6ch+,12ch

Working modes: Manual / Auto / Analysis / Storage

800×480 graphic 10 inch color touch LCD to display detailed ECG information

250 patient cases save and replay (SD card storage is optional)

Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.

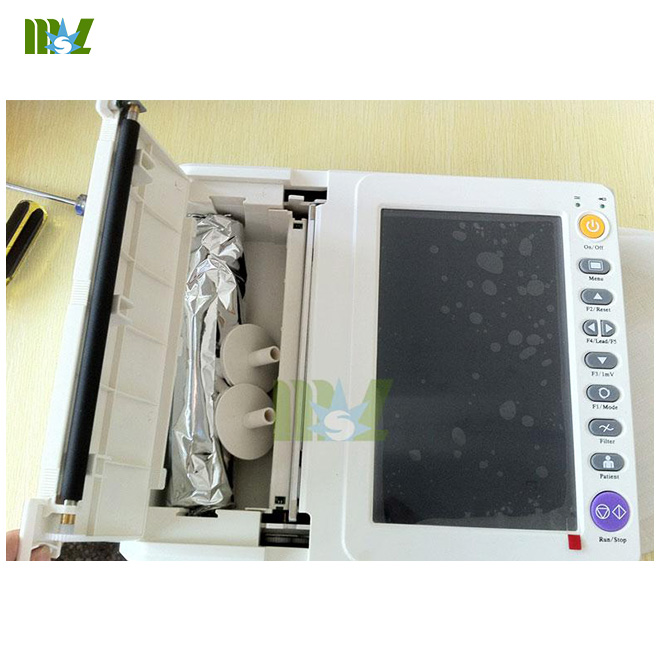

215mm*20m roll or 210*140mm folder,high resolution thermal paper

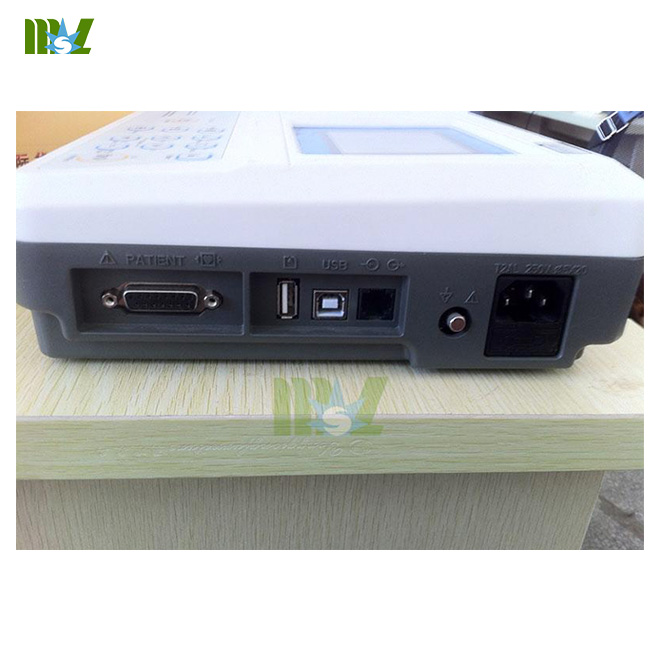

Rs232 and USB interface ( USB disk storage,laser printer printing,PC ECG software are optional )

Language:English,Chinese,French,Italian,Spanish,Russian

300mm*230mm*75mm,2.8kgs

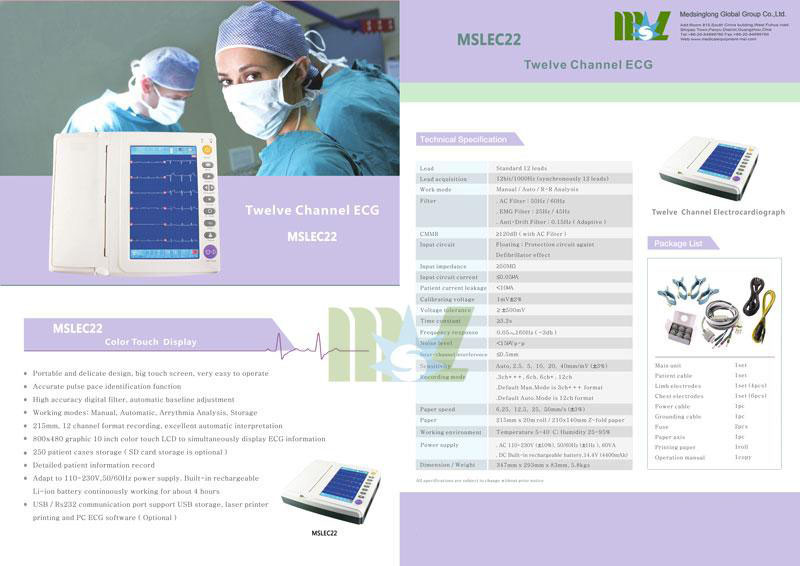

Portable twelve lead ecg MSLEC22 for sale Technical Specification：

Lead Standard 12 leads Time constant ≥3.2s

Lead acquisition 12bit/1000Hz (synchronously 12 leads) Frequency response 0.05～160Hz(-3db)

Work mode Man / Auto/Analysis/Storage Noise level ＜15μVp-p

Filter AC Filter : 50Hz / 60Hz Inter-channel Interference ≤0.5mm

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR ≥120dB (with AC FILTER) Sensitivity 2.5，5，10，20, 40, Auto  (mm/mV)

Input circuit Floating; Protection circuit against Recording mode 3ch, 3ch+, 3ch+++, 6ch

Defibrillator effect Default Man. Mode is  3ch  format

　 Default Auto. Mode is  6ch+ format

Input Impedance ≥50MΩ Paper speed 6.25、12.5、25、50mm/s（±3％）

Input circuit current ≤0.05μA Paper  215mm *20m Roll or 210*140mm folder paper

Patient current leakage ＜10μA Communication RS232/ USB port  ( optional)

Calibrating voltage 1mV±2％ Power Supply AC 110-230V(±10%),50/60Hz（±1Hz),60VA

Voltage tolerance ≥±500mV Dimension/Weight 347mm×293mm×83mm/5.8Kg

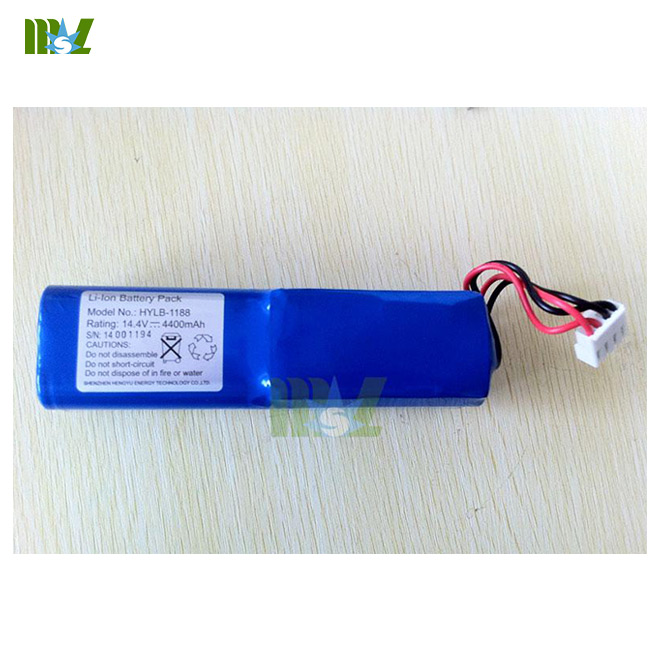

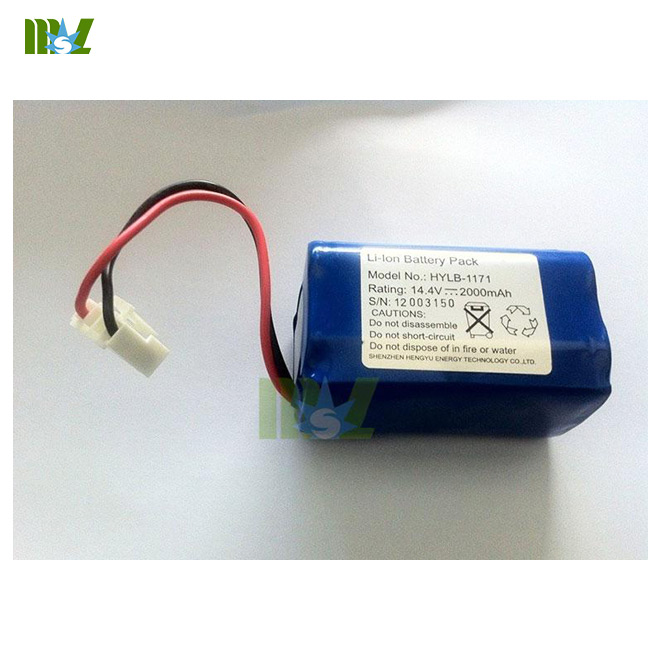

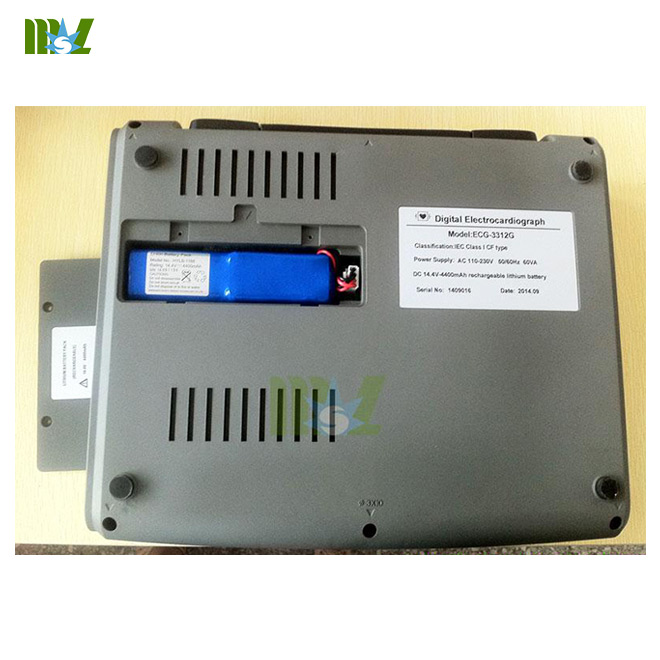

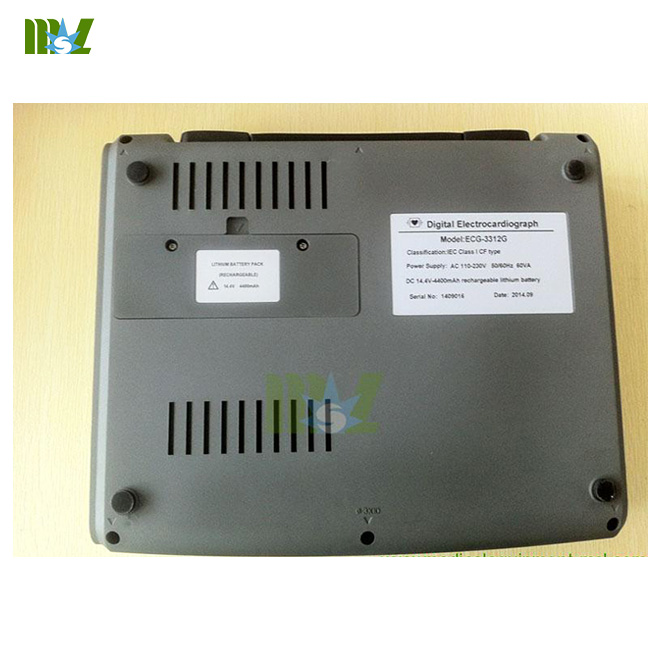

Portable 12-lead ECG recorders MSLEC22 battery

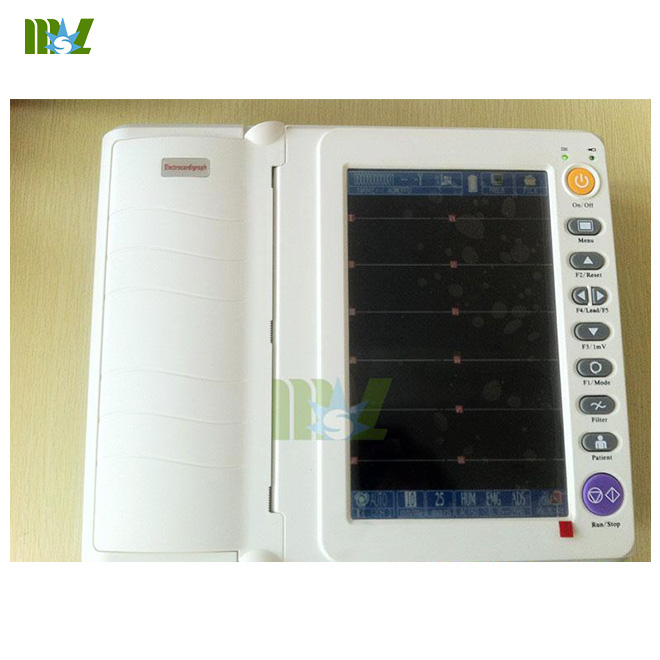

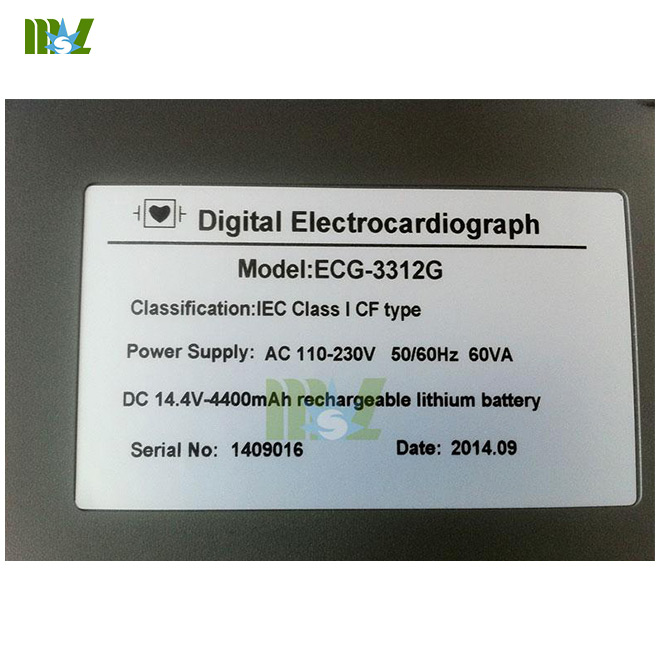

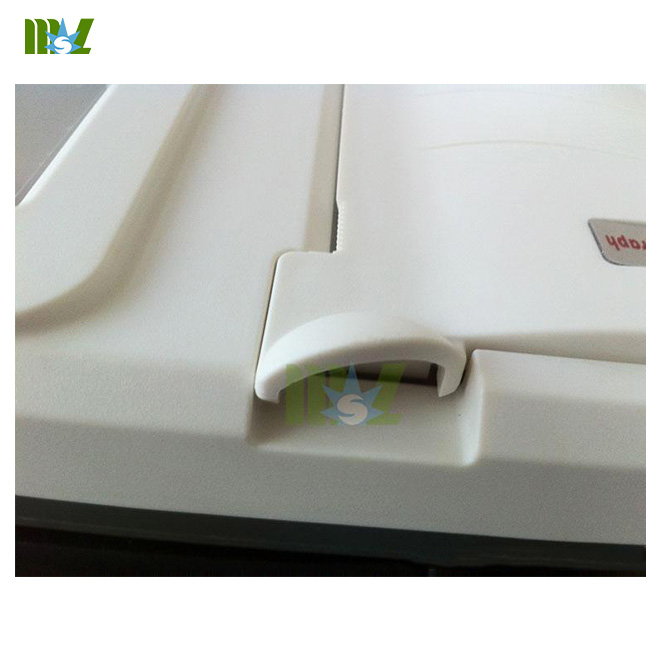

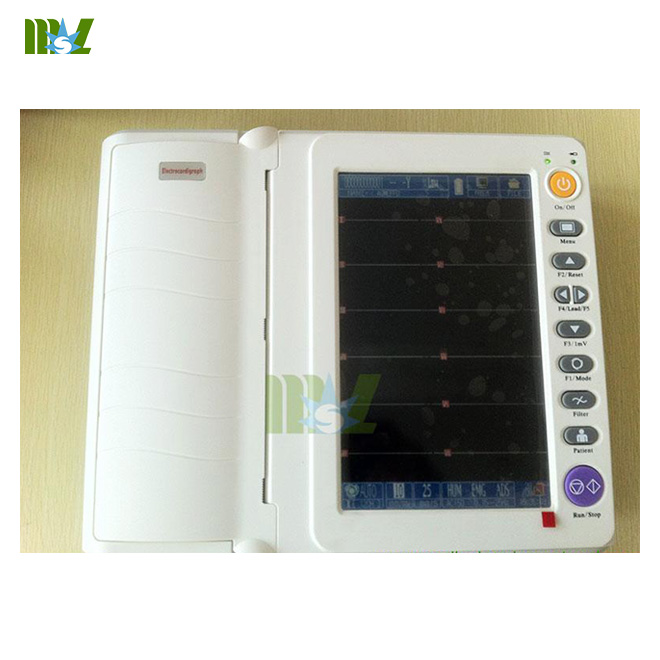

Portable twelve lead ecg MSLEC22 Details of the figure

Portable twelve lead ecg MSLEC22 Package：

1 unit / small carton :  43cm*37cm*22cm,   net weight 5.8kgs,     gross weight 8kgs

4 units / big carton :   75cm*43cm*46cm,   net weight 24kgs,     gross weight 30kgs

Portable three Channel Electrocar​diograph /  ECG machine  MSLEC16 Package：

1 unit / small carton :  40cm*34cm*22cm,   net weight 2.8kgs,    gross weight 5kgs

4 units / big carton :   70cm*41cm*46cm,   net weight 12kgs,    gross weight 22kgs
