Portable Ultrasound scanner box & ultrasound box for sale-MSLPU15
MSLPU15
Ultrasound Box is portable ultrasound scanner it is easy to use, only need to connect it to computer by USB cable and install the software in the computer. Then can realizable the function as a computer based ultrasound B Scanner.
The keyboard is use the computer keyboard, by software you can define your own computer keyboard keys to a certain function button. Such as the «Space» key can be defined as «Freeze» button, the «+» and «-» can set to value increase and decrease, all by your define.
HOT sale ultrasound box MSLPU15 for sale
YOUTUBE video link:
Portable Ultrasound scanner box MSLPU15 Feature:
-Very small and light, easy to carry
-Use computer of user’s, lost cost to get ultrasound scanner
-Full digital imaging technology, clear image
-PC based, powerful function such as information
management function and report function
-Complete application software packages
-Broadband Multi-frequency probes
-Large volume storage by computer hardisk or USB disk
-Print by USB laser/inkjet printers
-Silica gel waterproof ultrasound keyboard(option)
-Can work with external battery(option)
HOT sale ultrasound box MSLPU15 for sale Specification
-Operation system: windows XP or windows 7
-D-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop:：max. 1024 frames
-Scann mode: B(B-mode Ultrasound Imaging (The Definition of B Mode Ultrasound )), 2B, B/M, M (M Mode Ultrasound Definition), 4B, 4B, 9B, ZOOM(Real-time zoom on B mode)
-Image processing:Pre-processing,after-processing,dynamic range,frame rate,line average,edge;enhancement,Black/White inversion;Gray scale adjustment,contrast,brightness,γ revision.
-Measurement and calculation(human):
B mode:distance,circumstance,area,volume,angle,ratio,stenosis,profile,histogram;
M mode:heart rate,time,distance,slope and stenosis;
Gynecology measurement:Uterus,cervix,endometrium,L/R ovary;
Obstetric:gestation age,fetal weight,AFI;
Cardiology:LV,LV function,LVPW,RVAWT;
Urology:transition zone volume,bladder volume,RUV,prostate,kidney;
Small parts:optic,thyroid,jaw and face.
-Measurement and calculation(veterinary):Cattle:BPD,CRL,TD;Horse:GA;Dog:GS;Cat:HD,BD;Sheep:BPD,CRL,TD
-Image store:by computer hardisk or USB disk
-Print:by USB laser/inkjet printers with computer
-DICOM3.0,medical digital imaging and communication
-Weight:with one probe around 1kg
-Dimension:200mm×140mm×35mm
-Work time by battery(optional):about 3 hours
-Probe Connector:1

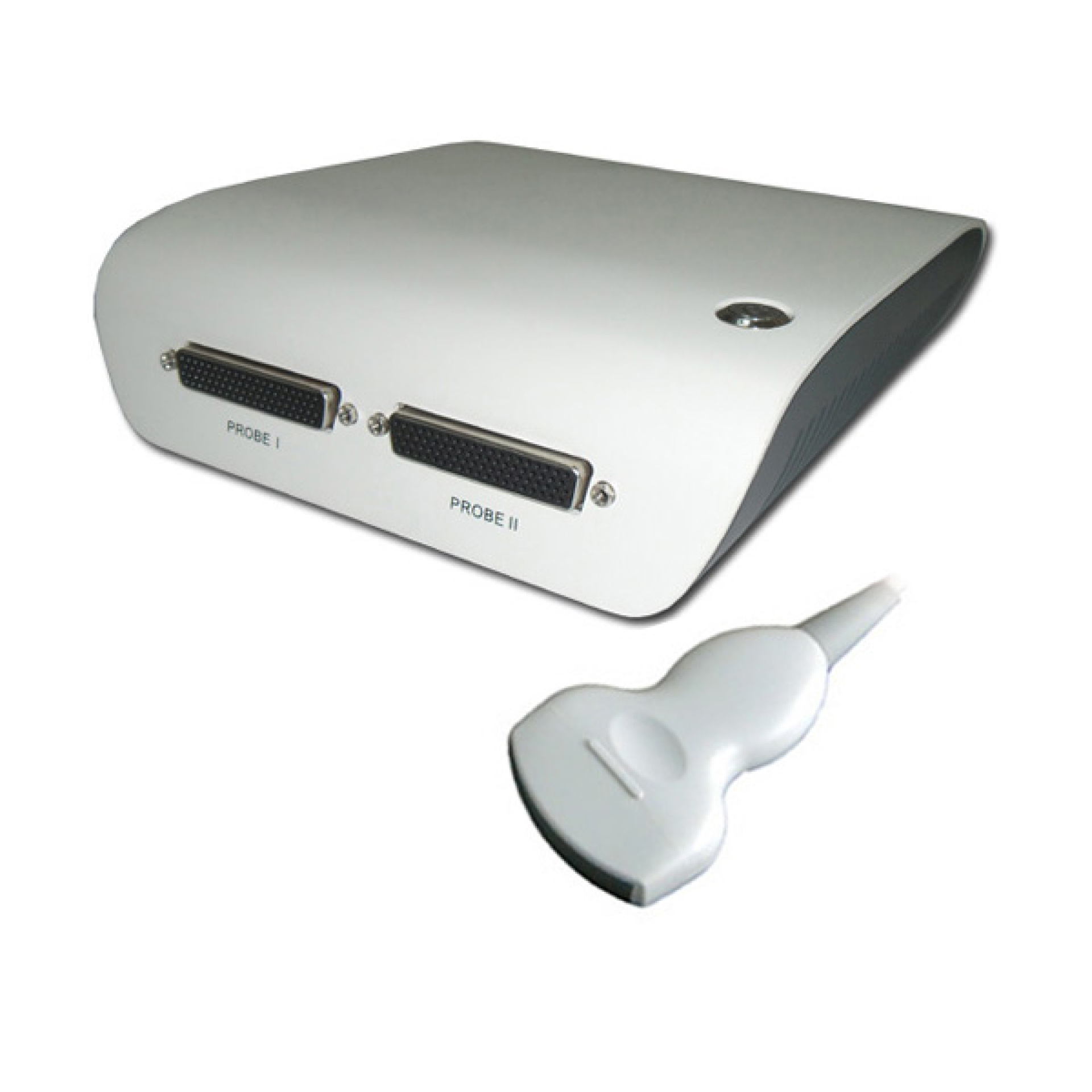

portable ultrasound scanner & ultrasound box MSLPU15 Pictures
Portable ultrasound scanner
-Measurement and calculation(veterinary): Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Image store: by computer hardisk or USB disk
-Print: by USB laser/inkjet printers with computer
-DICOM3.0, medical digital imaging and communication
-Weight: with one probe around 1kg
-Dimension: 200mm×140mm×35mm
-Work time by battery(optional): about 3 hours
-Probe Connector::1
MSLPU15 Ultrasound box is well received by our customers.
