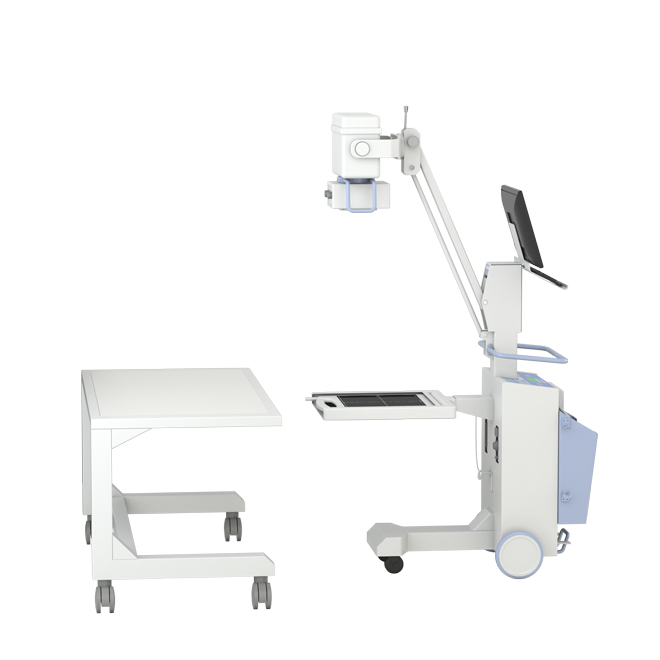

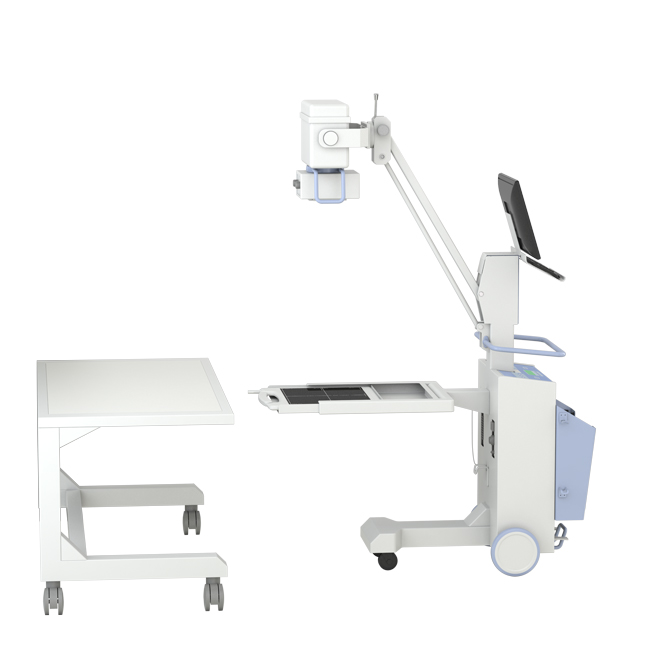

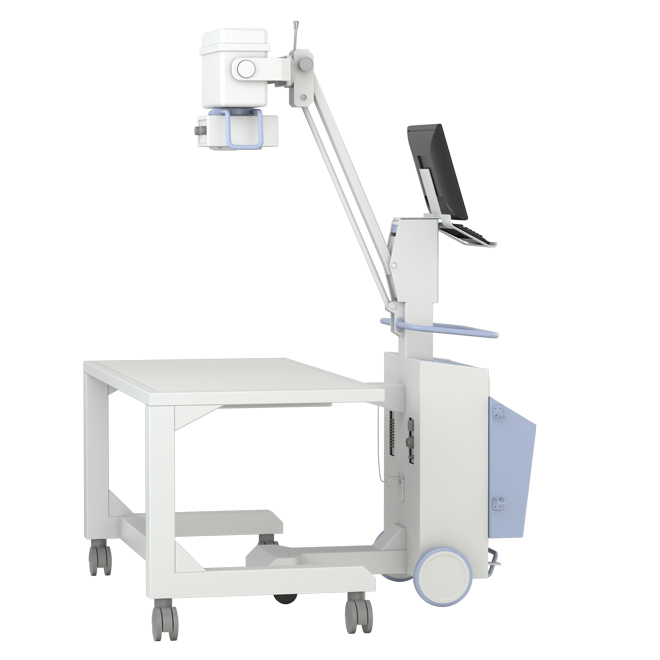

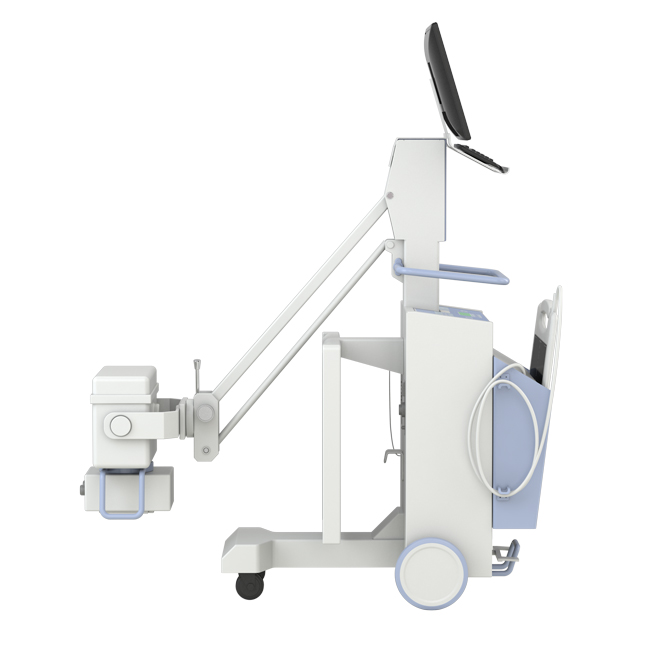

Purchase Veterinary Mobile Digital Radiography Machine MSLVX18

Features of Veterinary Mobile Digital Radiography System MSLVX18:

1.Professional image acquisition and processing system
DICOM 3.0 interface supports concise image processing and work list output.

2. Advanced Technology Innovative A-Si Flat Panel Detector
Mature flat panel detector ensures excellent image quality and reliable clinical diagnosis
Fast imaging time, high efficientcy, directly imaging i computer without film processing.

3.incomparable flexibility
Movable in any held. convenient to fix vet animal on the table
High quality  X-ray monoblock can rotate in  ± 90°
Rocker can move up and down wan advanced counter balance lachnology
Foldable dectector bracket

4.Unique Clinical Experience
High quality x-ray monoblock assures more details, less dose
 wireless remote control exposure, penetrate obstacles, more convenient to operate

5.Optimized Human—friendly Design
Multiple self-protection and fault alarming function, safe and reliable.
Automatically save parameters when suddenly power off, no loss of data.

Specification of Veterinary Mobile Digital Radiography System MSLVX18:

1.Power Supply
Voltage220V
Frequency 50Hz
Internal Resistance 0.15

2.X-ray Tube
Power output 5kW
Inverter Frequency 50Hz
Tube Focus 1.5mm
Tube Current 25-103mA
Tube Voltage 40-120kV

3.Flat Panel Detector
Active Area17’’*17’’
Pixel Pitch 139um
Limiting resolution3.6lp/mm
A/D transition 14bit

4.Table 1010
Length1500cm
Height 800 cm
Effective Radiography length 1200cm
Effective Radiography width 500cm
Client Usage Photos of Veterinary Mobile Digital Radiography System MSLVX18
Please contact us for more details.
