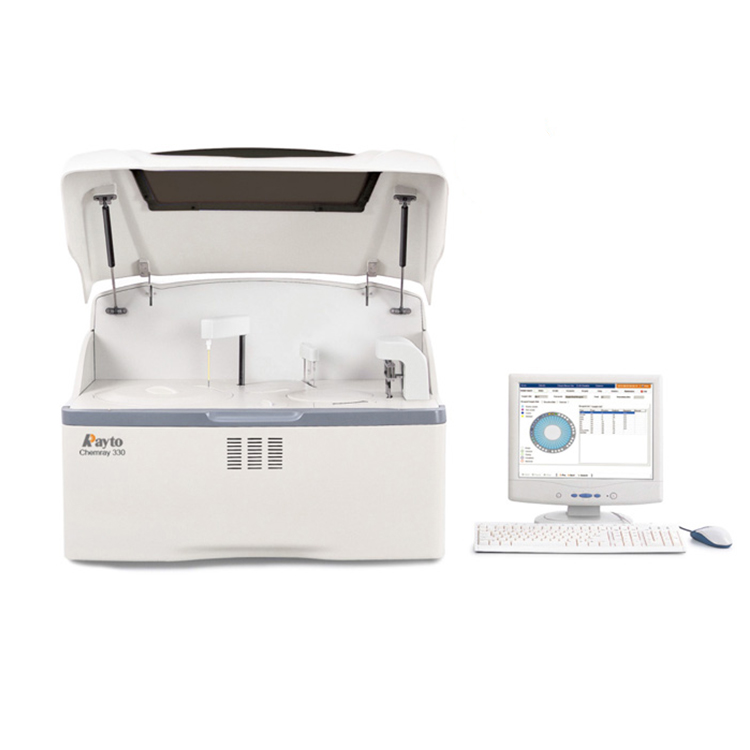

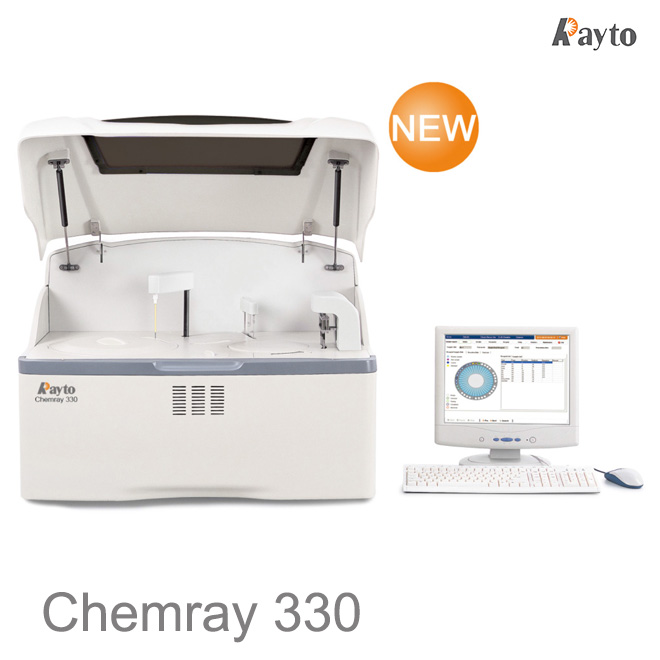

rayto Chemray 330 biochemistry analyzer for sale

Reagent Tray

.Reagent positions: 40 positions in refrigerated compartment

.Refrigerated temperature: 4-150C

.Reagent volume:

                  R1:180-450pL, 0.5pL adjustable

                  R2: 10-250pL, 0.5pL adjustable

.Built-in reagent barcode reader(optional)

Reaction Tray

.Reaction positions: 81 cuvettes, 9 cuvette/strip

.Reaction volume: 120pL-500pL

.Reaction temperature: 370C, fluctuation 10.20C

.Independent mixing probe

.Cuvette washing: Automatic 8 steps washing system

Probe

.Pre-heating for reagent

.Collision protection, Liquid level detection and Inventory checking

.Automatic inner and outer probe washing after every cycle, carry-over<1 %

.Clot detection function(optional)

Measuring and Optic System

.Lamp: Halogen lamp

.Absorbance range: 0-4.000Abs

.Wavelengths: 8 wavelengths from 320nm to 850nm including 340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 630nm, 670nm

.Resolution: 0.0001 Abs

Working Condition

.Power supply: AC11OV/220V, 50Hz/6OHz

.Temperature: 0-400C

.Humidity: S80%

.Water consumption: <_3.6Uh

.Dimensions: 800mm(L)x650mm(W)x590mm(H)

.Gross weight: 142kg
