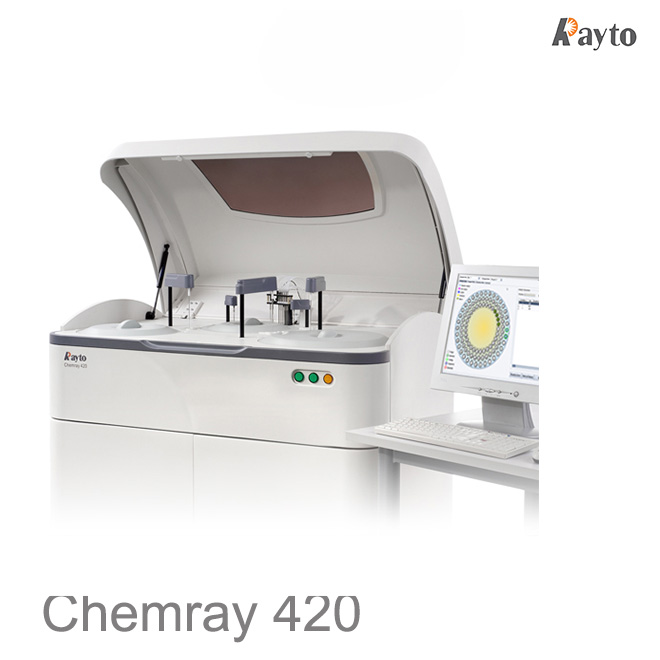

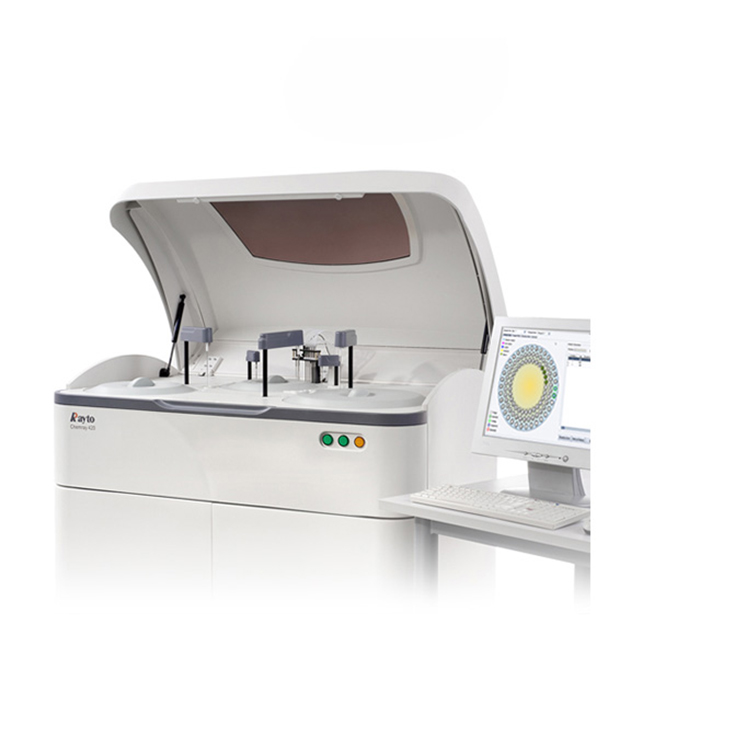

Rayto Chemray 420 auto chemistry analyzer for sale

Probe cleaning:

Automatic washing both interior and exterior, carryover <0.1%

Pre-heating for reagent

Auto dilution:3-150 times

Built-in reagent/sample bar code reader (optional)

.Reaction System

Reaction positions: 100 cuvettes

Cuvette:Optical length 5mm

Reaction volume: 150.500u1

Reaction temperature:37’C，10.1℃

2 mixing probes

8 steps auto-washing system

.Sample/Reagent Handling

2 reagent probes, 1 sample probe

Sample tray:100 positions

Reagent tray: 80 refrigerated positions

Refrigeration temperature:2一100C

Reagent volume:20、350 NL, 1 pL adjustable

RI:150·350 pL, 1 pL adjustable

R2:20·250 NL,1 pL adjustable

Support R3 and R4

Sample volume: 2、45 pL, 0.1 pL adjustable

Sample and Reagent probe: Collision protection, liquid level detection and inventory checking

.Measuring and Optical System

Light Source:Halogen tungsten lamp

Photometer:Grating photometry

Wavelengths: 340nm,405nm, 450nm, 505nm, 540nm, 570nm, 600nm, 635nm,670nm,700nm,760nm,795nm

Absorption range:0~2.500Abs

Resolution:0.0001 Abs

.Working Condition

Power supply:100·240 VAC 50/60 Hz, 1500w

Temperature: 100C、300C

Humidity:40%~85%

Water consumption: s20 Uhour

Dimension: 1150mm(L)0726.5mm(W)01150mm(H)

.360 tests/hour, up to 540 tests/hour with ISE(optional)

.Grating system with 12 wavelengths

.Built-in bar code reader (optional)

.8 steps washing system

.Bi-direction LIS interface
