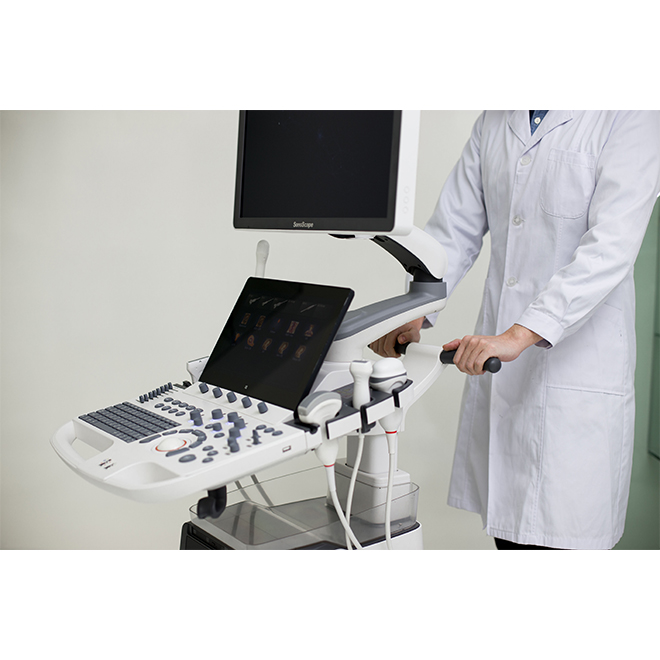

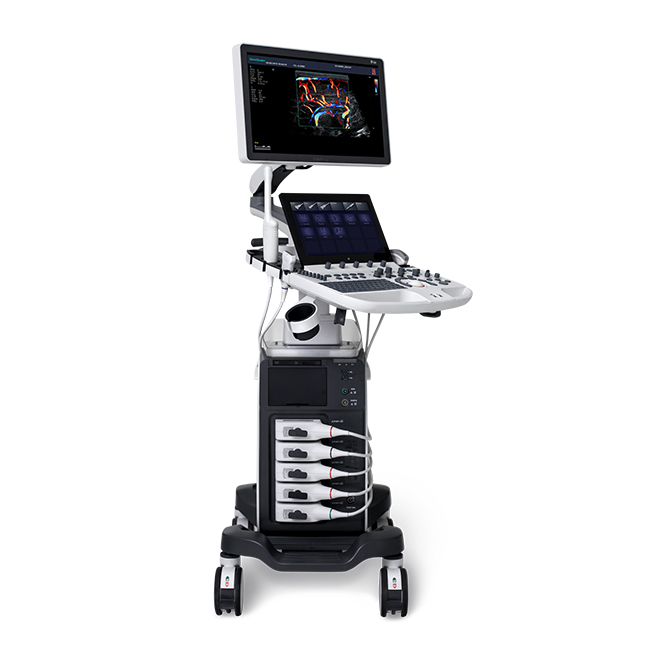

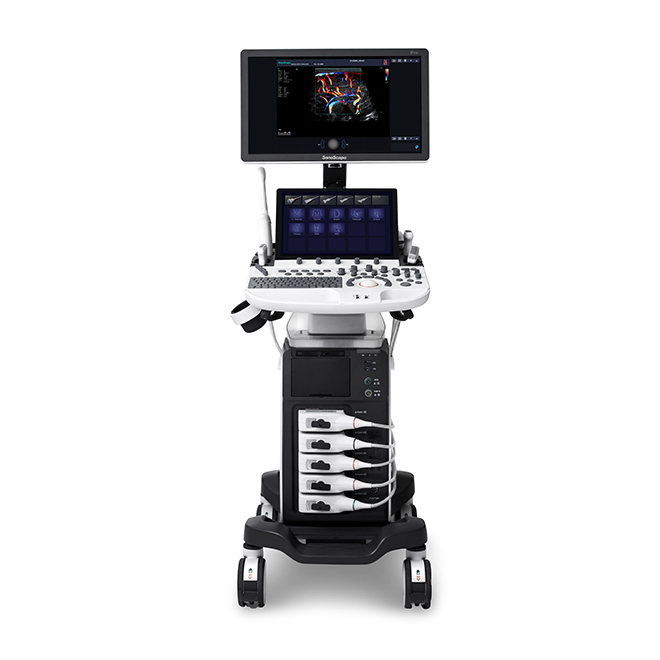

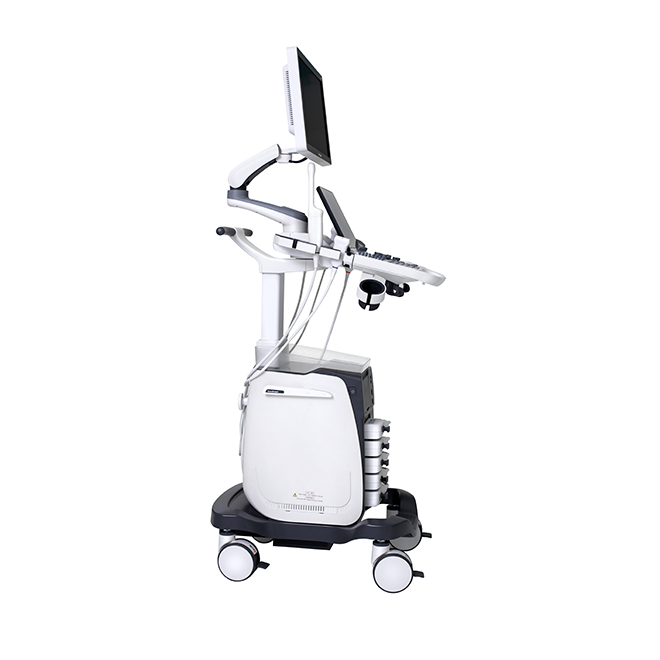

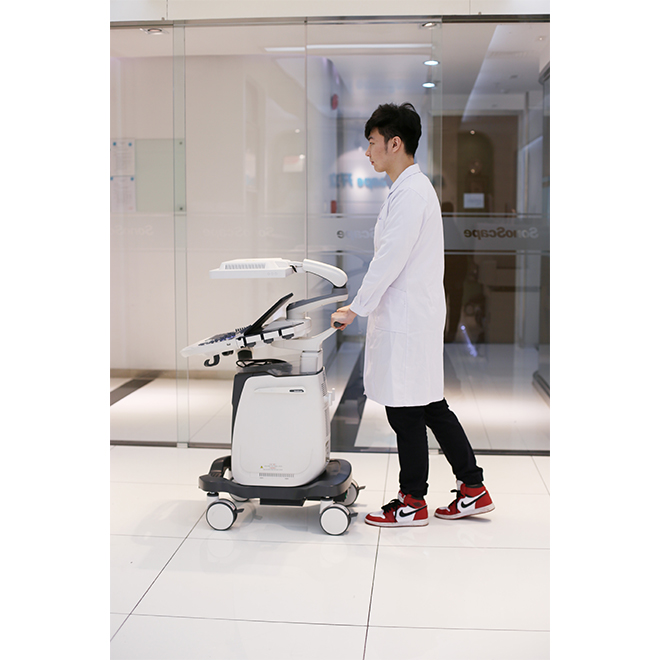

Sonoscape P40 Trolley Color Doppler Ultrasound Machine

P40 main unit
21.5″ High Resolution LED color monitor
13.3″ High Resolution Touch Screen
Endocavity probe holder
Five transducer connectors( Four Active + One Parking)
One CW transducer connector
USB 3.0/ Hard Disk 500G

Sonoscape P40 Trolley Color Doppler Ultrasound Machine

1. GeneralSpecification P40 is a color Doppler ultrasound system of flexibility, stability and safety. P40 achieves international standard of excellence and meets multi-purpose clinical applications. It is integrated with vast advanced ultrasonic technologies, including but not limited to Full Digital Super-wide Band Beam Former, Digital Dynamic Focusing, VariableAperture and Dynamic Tracing, Wide Band Dynamic Range, Multi-beam Processing, and USB 3.0High-speedTransmission. Moreover,the slim, compact and ergonomic design, the user-defined multi-language graphic interface and touch-screen-based human interaction promise the intuitive and efficient operation of P40 in clinic. P40 operation system is based on Industrial Personal Computer platform as well as the stableandopen-sourceLinux, and isproven with the power to output high-quality image and reliable measurement with consistent performance. Software updating is supported for system maintenance and function update, which improves P40 product value and keeps P40 technological advancement.

Sonoscape P40 Trolley Color Doppler Ultrasound Machine

2. SystemOverview
2.1 Application
Abdomen 
Vascular 
Cardiology 
Obstetrics 
Gynecology
Urology 
Musculoskeletal 
Small parts 
Anesthesia 
Interventional ultrasound 
Pediatrics 
Orthopedics 
Cephalic 
Pelvic Floor 
Others

2.2 Standard Features
2.2.1 Imaging Mode
B-Mode 
Tissue Harmonic Imaging (THI) 
Pure Inversion Harmonic Imaging (PHI) 
Lateral Gain Compensating (LGC, 2 Scales) 
Trapezoid Imaging (2 Scales) 
TissueAcoustic Index 
Color Doppler Mode 
Power Doppler Imaging (PDI) 
Directional Power Doppler Imaging (DPDI) 
High Pulse Repetition Frequency (HPRF) 
Pulsed Wave Doppler (PW) 
Continuous Wave Doppler (CW) 
Simult (Triplex Mode) 
Panoramic Imaging (Real-time 2D/Color Mode) 
M-Mode

Sonoscape P40 Trolley Color Doppler Ultrasound Machine

2.2.2 Function
Multi-beams 
Front-end Technology 
2D Speckle Reduction & Edge Enhanced (μ-scan, 2D μ-scan) 
3D Speckle Reduction & Edge Enhanced (3D μ-scan) 
Compound Imaging (Spatial/ Frequency) 
Dual Live 
S-Guide 
Auto (One-button parameter optimization of 2D/ Color/ PW) 
Rotate (3D) 
Adaptive Image Fusion 
Biopsy Guide 
Auto IMT 
Auto NT
P40TechnicalSpecificationV1.0
Page 3of14
Auto EF 
AutoTrace 
Freehand 3D 
Static 3D  4D 
DICOM 3.0: Store/ C-Store/ Work List/ MPPS/ Print/ SR/ Q&R 
Wireless Network  USB 3.0 High-speed Transmission

2.2.3 Hardware
13.3 inchTouch Screen 
Wireless Network Module 
USB 3.0 Port 
Rolling Lock 
StorageTray 
Memory Capacity: 500 GB
2.2.4 Measurement Package
Basic Measurement Package 
Obstetrics Package 
Gynecology Package 
Cardiology Package 
Abdominal Package 
Vascular Package 
Urology Package 
Small Part Package 
Pediatrics Package
