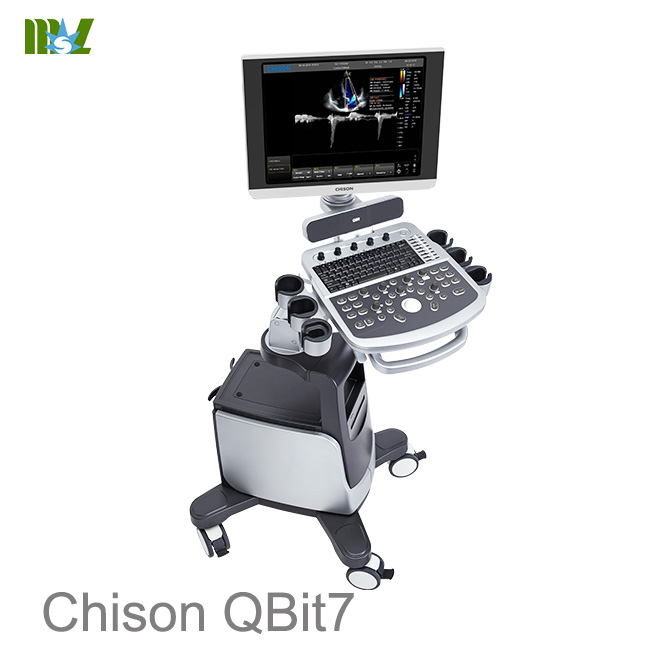

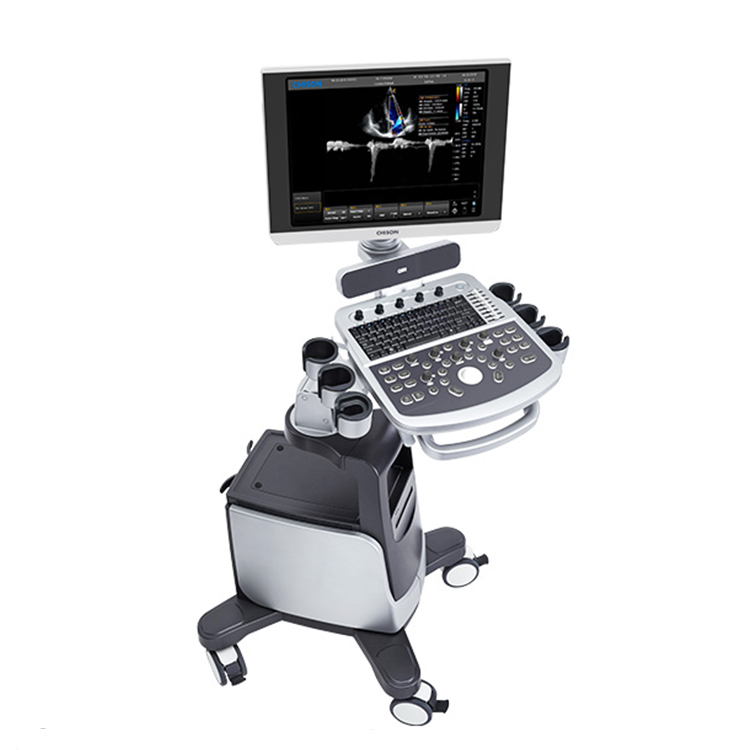

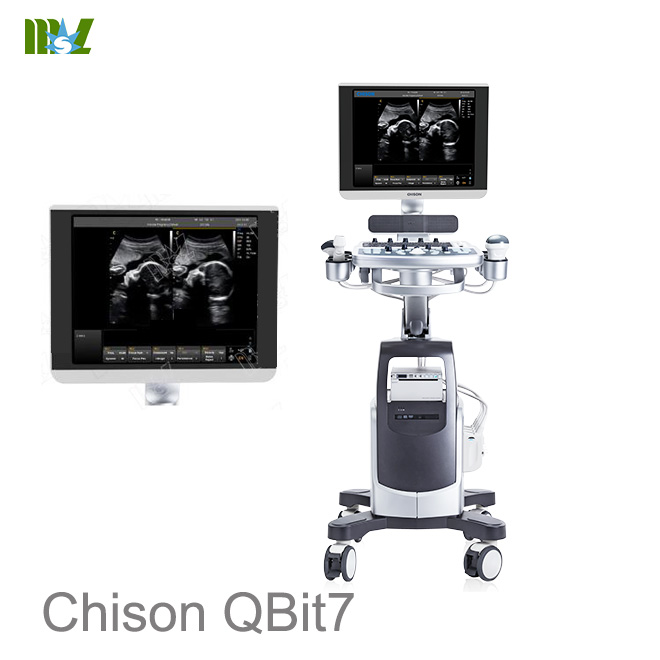

Ultrasonido 4d Chison QBit7 price

Ultrasonido 4d Chison QBit7 price

Dimensions and Weight

* Dimensions of main unit (approx.): 747mm（Length）*517mm（Width）*1283mm

* Net weight of main unit (approx): 50kg (no probe included)

Electrical Power

* Power supply voltage: Auto adaptable for AC100-240V

* Power supply frequency: 50-60 Hz

* Power consumption: 600 VA





Operation Panel

* Control panel

* Alphanumeric keyboard

* 8 TGC Slides

* Interactive backlit keys

* High resolution color LCD

– Diagonal dimension: 15 inch

– Resolution: 1024X768

– Brightness and contrast adjustment

* Integrated speaker

– Volume adjustable





Applications

* Abdominal (Gynecology & Urology )

* Fetal/OB

* Small Organ (Breast,Testes,Thyroid)

* Pediatric

* Peripheral Vascular

* Musculo-skeletal Conventional & Superficial

* Cardiac (adult & pediatric)

* Transvaginal

Scanning Method

* Electronic convex

* Electronic linear

* Electronic micro convex

* Electronic phased array

* Volume convex

Transducer Types

* Convex transducer: D3C60L

* Linear transducer: D7L40L

* Linear transducer: D7L30L

* Linear transducer: D7L60L

* Linear transducer: D12L40L

* Trans-vaginal transducer: D6C12L

* Trans-vaginal transducer: D7C10L

* Micro convex transducer: D3C20L

* Micro convex transducer: D5C20L

* Micro convex transducer: D6C15L

* Phased array transducer: D3P64L

* Phased array transducer: D6P64L

* 4D volume transducer: V4C40L

Image Modes

* B Mode

* 2B Mode

* 4B Mode

* B/M mode

* M mode

* CFM Mode (Color Flow Mapping)

* CPA Mode (Power Doppler)

* DPD Mode (Directional Power Doppler)

* B/BC Mode

* Pulse Doppler Mode

* Trapezoidal imaging (Only for linear transducer)

* Multiple Compound Imaging

* SRA ( Speckle Reduction Algorithm)

* AIO

* 2D Steer

* Triplex (Option)

* Quadplex (Option)）

* CWD (Option)

* Free Steering M Mode (Option)

* TDI (Option)

* Color M Mode (Option)

* Curved Panoramic Imaging (Option)

* Elastography (Option)

* ECG (Option)

* Super Needle (Option)

* 4D (Option)

* Virtual HD (Option)

* FHI mode

Display Mode

* Quad/dual display (for B, CFM , CPA)

* Duplex mode

* Triplex mode

* Quadplex mode

Display Annotation

* Hospital name

* Date/Time

* Patient Name and Patient ID

* System status (real-time or frozen)

* Gray/Color bar

* Cine guide

* Scanning direction

* Measurement summary window

* Measurement results window

* Transducer type

* Frequency

* Application name

* Menu indication

* Trackball functions indication

* Imaging parameters displayed on the screen

Standard Configuration

* High resolution 15 inch LCD display

* 4 active transducer ports

* Color Doppler Flow Imaging

* Pulse Wave Doppler

* Power Doppler Flow Imaging

* Directional Power Doppler Flow Imaging

* ≥250G integrated hard disk

* USB ports:6

* Ethernet port

* S-video Out port

* VGA port

* Remote

* Video out port

* General measurement package

* Multi-language screen display

* EasyView: image archive system

* Patient information management system

* Building reporting system

* AIO (Automatic Image Optimization)

* Intelligent Zoom

* Speckle Reduction Algorithm (SRA)

* Auto Doppler spectrum trace and auto calculate

Software Options

* DICOM

* 4D software package

* Virtual HD

* Curved Panoramic Imaging

* Super Needle

* Elastography

* Cardiac Package: CW, Free Steering M Mode, Color M Mode, TDI, ECG

* Auto IMT

* 2D Steer

* Clinical measurement package

* Q-Image

* Q-flow

* Q-beam

* X-Contrast

Hardware Option

* Convex transducer: D3C60L

* Linear transducer: D7L40L

* Linear transducer: D7L30L

* Linear transducer: D7L60L

* Linear transducer: D12L40L

* Trans-vaginal transducer: D6C12L

* Trans-vaginal transducer: D7C10L

* Micro convex transducer: D3C20L

* Micro convex transducer: D5C20L

* Micro convex transducer: D6C15L

* Phased array transducer: D3P64L

* Phased array transducer: D6P64L

* 4D volume transducer: V4C40L

* Footswitch

* ECG cable

Peripherals

* Video printer: SONY UP-897MD, SONY UP-D25MD, SONY UP-D711MD

             SONY UP-D898MD/X898MD

* PC printer :

–

HP LaserJet 1020

–

HP LaserJet CP2055d

–

HP LaserJet P1102

–

HP LaserJet 200 color M251



B Mode

* Gain

* TGC

* Depth

* Frame Rate

* Scan Width

* Image Rotate

* Gamma

* Smooth

* Edge Enhance

* Acoustic Power

* Freq.

* Dynamic

* Focus Number

* Focus Position

* Compound

* Q-image

* SRA

* Persistence

* Density

* Noise Reject

* 2D Map

* Chroma

* Flip (left/right, up/down)

* Zoom

* Trapezoidal Mode (only for linear transducer)

* Super Needle（option）

* 2D steer

* Elastography（option）

* Q-beam

* X-contrast

M Mode

* 2D Map

* Color Map

* Sweep Speed

* Layout

* Free M Mode （option）

* Display Format (only for Free M Mode)

Color Mode

* Gain

* Frame Rate

* Scale

* Color Mode: Velocity, Variance

* Wall Thre.

* Blood Effection

* B/BC

* Freq.

* Steer (only for linear transducer)

* Wall Filter

* Color Map

* PRF

* Color Invert

* Persistence

* Density

* Baseline

* Q-flow

CPA/DPD Mode

* Gain

* Frame Rate

* Scale

* Wall Thre.

* Freq.

* Steer (only for linear transducer)

* Wall Filter

* Color Map

* PRF

* Density

* Persistence

PW Mode

* Gain

* Scale

* 2D Map

* Spectrum Enhance

* Dynamic Range

* Auto Cal

* Freq.

* Color Map

* Wall Filter

* Audio

* Triplex

* PRF

* Speed

* Quardplex

* Baseline

* Invert

* DA

* SV

CW Mode

* Gain

* Scale

* 2D Map

* Spectrum Enhance

* Dynamic

* Invert

* Color Map

* Wall Filter

* Audio

* PRF

* Speed

* Baseline

* DA

Cineloop

* Support 2D, M, PW, CFM, CPA, DPD, CW, Color M, Free Steering M

* Simultaneous and independent review in duplex mode

* Cineloop auto/manual

* Variable cine playback speed

* User-define start and end frame of cine storage

* User-define start and end frame of cine review

* storage in hard disk and display in real-time modes

* Slide show: slide show function



Storage

* ≥250GB integrated hard drive

* DVD R/W driver

* USB ports

* Still images storage format: IMAG

* Still images export format: BMP, JPG, DCM,PNG,TIFF

* Cine loops storage format: CINE

* Cine loops export format: AVI

* Fast storage setting

EasyView

* Image review Layout:1×1,2×2

* Image management

Exam Review

* Search Exam

* Exam review: patient view, study view

* Exam management

– Delete selected exam

– Export selected exam

– Backup selected exam

– Recover from the backup exam

– Selected all

– Expand all

– Collapse all

– Edit selected Exam

– Review selected Exam

– Continue selected Exam







General Measurement Package

– Software packages for various specific clinical use

– Comprehensive analysis methods

– Clinical analysis reports

* General measurement package

* B mode normal measurement

Distance

Length＿Area（Ellipse）

Length＿Area（Trace）

Volume（1 Distance）

Volume（2 Distance）

Volume（3 Distance）

Volume（1 Ellipse）

Volume（2 Ellipse）

Volume（1 Distance 1 Ellipse）

Ratio

Angle

Breast

* M mode normal measurement

* PW mode Normal measurement

Clinical Analysis Packages

* OB

* GYN

* Pediatrics

* URO

* Cardiac

* Vessel

* Abdomen

* Carotid

* Small parts



By using system setup, users could

* Customize hospital information

* Customize language

* Customize fast storage time

* Customize color map

* Customize functions to Footswitch,P1 key,Print key

* Customize functions to alphanumeric 0~9

* Customize PC and Video Print Option

* Customize Measure

* Customize Comment library

* Customize Report

User Define Functions

By user-define function, users could customize user-define preset, including

– Applications name, Presets name, User defined name

– Applications exam type

– Imaging parameters

Multi-language Display Interface

* English

* Chinese

* Other languages

Note: other languages for detailed, please contact CHISON.





* AC Power In: 1

* AC power Out: 1

* Power Button: 1

* USB Port: 6

* Ethernet: 1

* Remote Control: 1

* S-Video Out: 1

* Audio：L,R

* DVI: 1

* VGA Out: 1

* Video Out: 1

* Footswitch Port: 2

* Ground pole: 1



* Ambient temperature: 10°C to 40°C

* Relative humidity: 30% to 75% (no condensation)

* Atmospheric pressure: 700 hPa to 1060 hPa



* Ambient temperature: -5°C to 40°C

* Relative humidity: ≤80% (no condensation)

* Atmospheric pressure: 700 hPa to 1060 hPa
