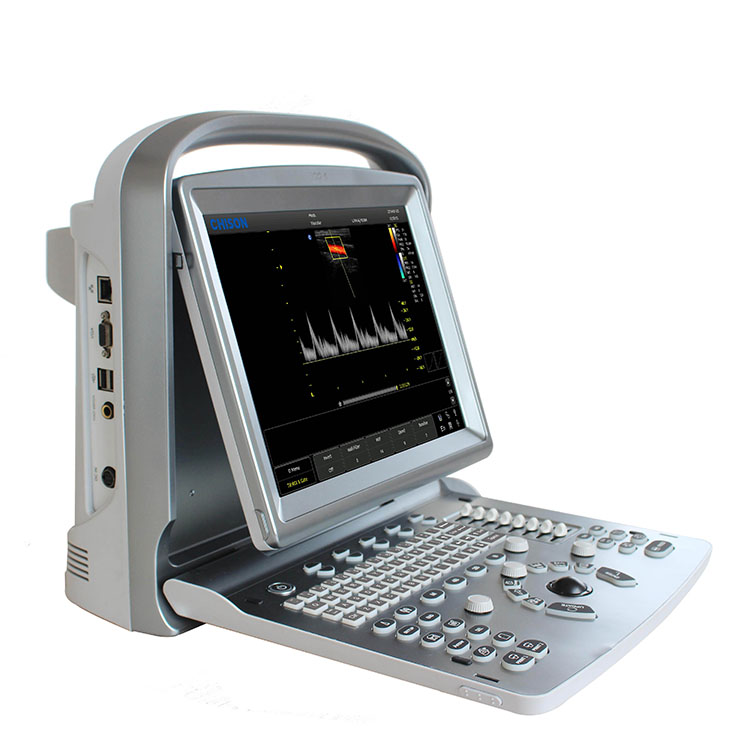

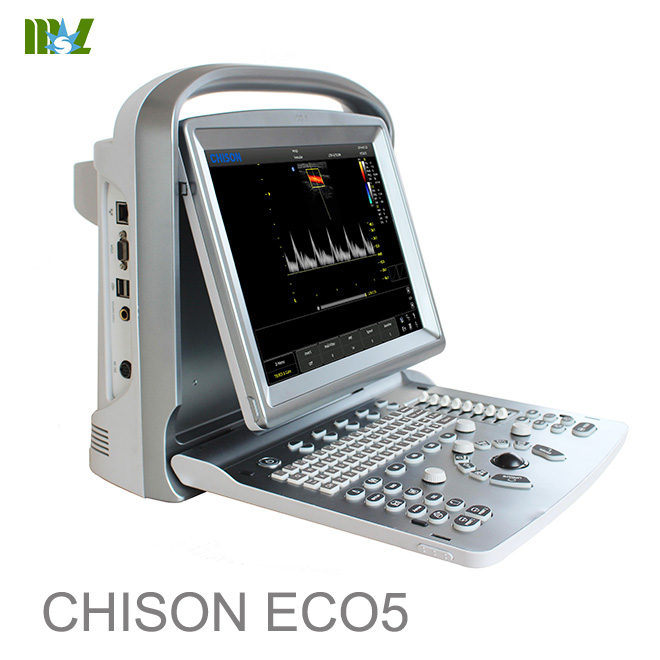

Ultrasonido (ecografo) abdominal con Doppler : chison eco 5 approved FDA Chison eco 5

Dimensions and Weight

Dimensions of main unit (approx.):

335 mm (Length) * 155 mm (Width) * 350 mm (Height)

Net weight of main unit (approx): 6.5 kg (no probe included)

Electrical Power

Adapter Power supply voltage: AC100-240V 50/60Hz

Main system power input: 19V 3.16A

Battery type:BT-2500 Li-ion 14.8V 4400mAh

General

Information



Operation Keyboard

Fold-up Control Panel and Alphanumeric Keyboard

Back-lit Keyboard for Good Visibility in Dark Room

Interactive Back-Lighting

Indicator Lights Identify Activated Keys

8 TGC Slides for Easy Adjustment

Short Cut knob for Quick Adjustment

Neat & Clear Keyboard Layout, Doctor Can Remember Easily

Print Directly from the Keyboard

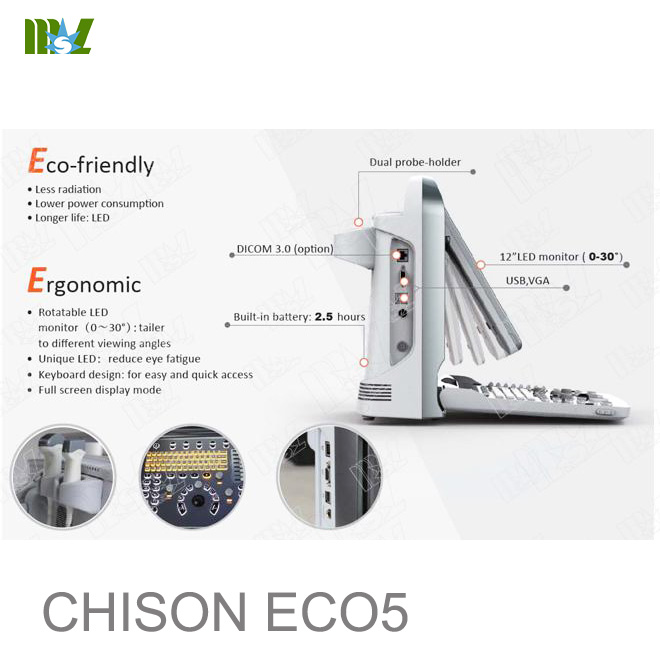

Display Screen

High resolution color LED

– Diagonal dimension: 12 inch

– Resolution: 1024X768

– Angle adjustable: 0-30 o

User

Interface

Applications

Abdomen

Cardiology

Obstetrics

Gynecology

Urology

Vascular

Small Parts

Pediatrics

MSK

Nerve

Scanning Method

Electronic convex

Electronic linear

Electronic micro- convex

Transducer Types

C3-A convex probe, center frequency 3.5MHz

V6 -A micro-convex probe, center frequency 6.5MHz

L7M -A linear probe, center frequency 7.5MHz

MC3-A micro-convex probe, center frequency 3.5MHz

L7S-A linear probe, center frequency 9.0MHz

R7-A rectal probe, center frequency 7.5MHz

MC6-A micro-convex probe, center frequency 6.5MHz

System

Overview



Image Modes

B mode

M mode

CFM mode

PW mode

Display Mode

Quad/dual display (for B mode)

Duplex mode: B+CFM, B+PW, B+CFM+PW, B/M

Display Annotation

Institution/Hospital name

Date/Time

Patient Name and Patient ID

System status (real-time or frozen)

Gray bar

Cine guide

Scanning direction

Measurement summary window

Measurement results window

Probe type

Application name

Menu indication

Imaging parameters displayed on the screen

Standard Configuration

High resolution 12 Inch LED display

2 active probe port

8G high speed memory (320G optional)

USB ports : left side 2, back 1

Ethernet port

video out port

VGA port

Footswitch port

General measurement package



Clinical measurement package

Multi-language screen display

EASYVIEW TM : image archive system

Patient information management system

Building reporting system

Intelligent Zoom

Multiple Compound Imaging (MCI)

Speckle Reduction Imaging(SRA)

i-image

BT-2500 li-ion battery

Software Options

DICOM 3.0

Full screen show

Hardware Options

C3-A convex probe, center frequency 3.5MHz

V6 -A micro-convex probe, center frequency 6.5MHz

L7M -A linear probe, center frequency 7.5MHz

MC3-A micro-convex probe, center frequency 3.5MHz

L7S-A linear probe, center frequency 9.0MHz

R7-A rectal probe, center frequency 7.5MHz

MC6-A micro-convex probe, center frequency 6.5MHz

Biopsy guide for C3-A, L7M-A, V6-A

Carry bag BG-100

Trolley TR-9000

Peripherals

Video printer: Mitsubishi P93W; Sony UP-897MD, Sony UP-D711MD

PC printer : HP LaserJet P1102,HP LaserJet 200 Color M251n , HP LaserJet P2055d



B Mode

Acoustic power (16 steps)

Gain (0~255)

TGC (8 segments)

Frequency(depend on the probe types)

Depth（3.7~23.6cm, depend on the probe types）

Focus number (1~4, depend on the probe types)

Focus position (depend on the probe types)

Scan width（14%~100%））

Density (Low ,High)

Dynamic (30~90dB)

Smooth (0~7)

Edge enhancement (0~7)

Compound (On, Off)

SRA (On, Off)

MB (On, Off)

2D map 5 types

Gama(0-8)

B rejection(0-256)

Invert (left/right, up/down)

Zoom coef(8 steps)

Chroma(0-39)

M Mode

Sweep speed (4 steps)

Cineloop

Support 2D, M, PW, CFM

Imaging

Processing and

Presentation

Cineloop auto/manual

Capacity:256 frames

Storage

8G high speed memory(320G optional)

USB ports

Still images storage format: image and jpg

Cine loops storage format: Cine (256frames/8s)

EASYVIEW TM

Image review Layout：1X1; 2×2; 4×4;

Image management

– Delete selected image

– Export selected image

– Recall selected image

-Collapse all

– Send selected image by DICOM

– Multi Select



General Measurement Package

– Software packages for various specific clinical use

– Comprehensive analysis methods

– Clinical analysis reports

General measurement package

General B mode measurement

-Distance

CIR/Area（Ellipse）

CIR/Area（Trace）

-Volume(1Distance)

-Volume(1Ellipse)

-Volume（2Distance）

-Volume（3Distance）

-Volume(1Distance1Ellipse)

-Ratio(distance/ellipse area/trace area)

-Angle

-Histogram(rectangular/ellipse/trace)

-profile

General M mode measurement

-M distance

-M Time

-Velocity

-Heart＿Rate

Clinical Analysis Packages

Obstetrics

-Distance

-FetalBiometry

GS (Gestational Sac Diameter)

CRL (Crown Rump Length)

Measurement

&

Calculation



YS

BPD (Biparietal Diameter)

OFD (Occipitofrontal Diameter)

HC-Ellipse (Head Circumference)

APD

TAD (Transverse Abdominal Diameter)

AC-Ellipse (Abdominal Circumference)

FTA

FL (Femur Length)

SL

APTD (Anteroposterior Trunk Diameter)

TTD (Transverse Trunk Diameter)

THC

-Fetal Long Bones

Humerus (Humerus Length)

ULNA

Tibia (Tibia Length)

RAD

FIB

CLAV

-Fetal Cranium

CER (Cerebellum)

CM

NF

NT

OOD

IOD

NB

Lvent

HW

-OB Others

LtKid

RtKid

LtRenalAP

RtRenalAP



LVWrHEM

MAD

-AFI

-FBP

EFBW(Estimated Fetal Birth Weight)

AFI(Amniotic Fluid Index)

EDD(Expected date of delivery)

Growth curve

GYN

-Distance

-UT＿D

UT-L

UT-W

UT-H

CX-L

-Cevix Volme

Length

Width

Height

-ENDO（Endometrium）

-ovary

Urology

-kidney

Volume(left)

Volume(right)

-Bladder

Volume(L*W*H)

Volume(biplane)

-Prostate

-Residual Volume

Abdomen

-Distance

-CBD



-GB wall

-Liver length

-Prox Aorta

-Mid Aorta

-Distal Aorta

-Spleen

-Renal Volume

-iliac

Cardiac B mode

-SinglePlane

-BiPlane

-bullet＿Volume

-Modi＿Simpson

Cardiac M mode

-Distance

-Heart rate(one circle, two circle)

-LV function

IVSd

LVIDd

LVIDs

LVPWd

IVSs

LVPWs

-Mitral valve

EF speed

AC speed

A/E

QMV

-Aorta Valve

LAD/AOD

AVSV

Vascular

-Distance

-Perimeter/Area

-Volume

-Ratio

-%Stenosis



-Angle

Small Part

-Thyroid

-Angle

-Ratio

Orthopedic

-Hip Angle

Pediatrics

-Hip Angle



By using system Setup, users could

Customize hospital information

Customize date-time and regional

Customize language

Customize screen saving type

Customize comment library

Customize measurement formula

Customize exam mode configuration

Customize output types

Multi-language

English

Chinese

Czech

Italian

Russian

Turkish

French

German

Spanish

Operation System

Windows Linux Embedded

System

Setup



Transducer Selection

Two transducer ports

Probe

Namel

Outlook  Probe Type

Main

Frequency

Frequency

Range(MHz)

Application

C3-A

Convex

R=60mm

3.5MHz

2.5

3.5

4.5

5.0

ABD,OB/GYN.URO

V6-A

Micro convex

R=12mm

6.5MHz

4.5

5.0

6.5

8.0

OB/GYN,URO

L7M-A

Linear

L=40mm

7.5MHz

5.3

6.5

7.5

10.0

Vessel, Small Parts,

MSK/PT, Nerve

L7S-A

Linear

L=30mm

9.0MHz

5.3

6.5

9.0

11.0

Vessel, Small Parts,

MSK, PT, Nerve

MC3-A

Micro-Convex

R=20

3.5MHz

2.5

3.5

4.5

5.0

Cardiac

MC6-A

Micro Convex

R=15

6.5MHz

4.5

5.0

6.5

8.0

ABD，

Neonatal(Pediatrics)

R7-A

linear

L=40mm

7.5MHz

5.0

6.5

7.5

10.0

URO

Transducers



video: 1

VGA: 1

USB port: 3

Ethernet: 1

Remote Port 1

Footswitch port 1

System power in: 1

Power button: 1

Inputs

&

Outputs



Temperature:10o C ~ 40o C

Relative Humidity:30%~75%, non-condensing

Atmosphere Pressure:700hPa ~ 1060hPa

Operating

Conditions



Temperature:-25o C ~ 55o C

Relative Humidity:≤ 95% non-condensing

Atmosphere Pressure:700hPa ~ 1060hPa

Storage

Conditions



ISO 10993 Biological evaluation of medical devices

Quality

Standards



IEC 60601-1 Electrical medical equipment

IEC 60601-1-1 Electrical medical equipment

IEC 60601-1-2 Electromagnetic compatibility

IEC 60601-1-4 Programmable medical systems

IEC 60601-2-37 Comply with the IEC60601-2-37

Not all features or specifications described in this document may be available in all probes

and/or modes.

CHISON Medical Imaging Co., Ltd. reserves the right to make changes in specifications

and features shown here in, or discontinues the product at any time without notice or

obligation. For the most current information，Contact CHISON Representative.

Design

Standards
