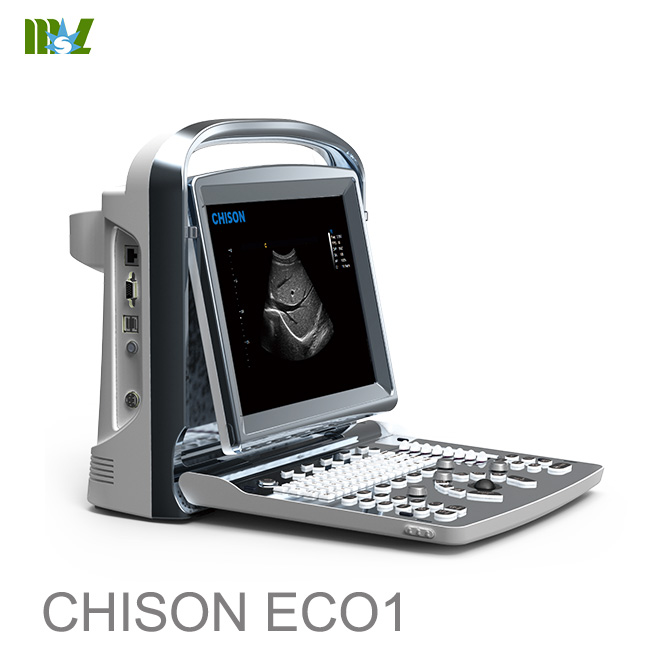

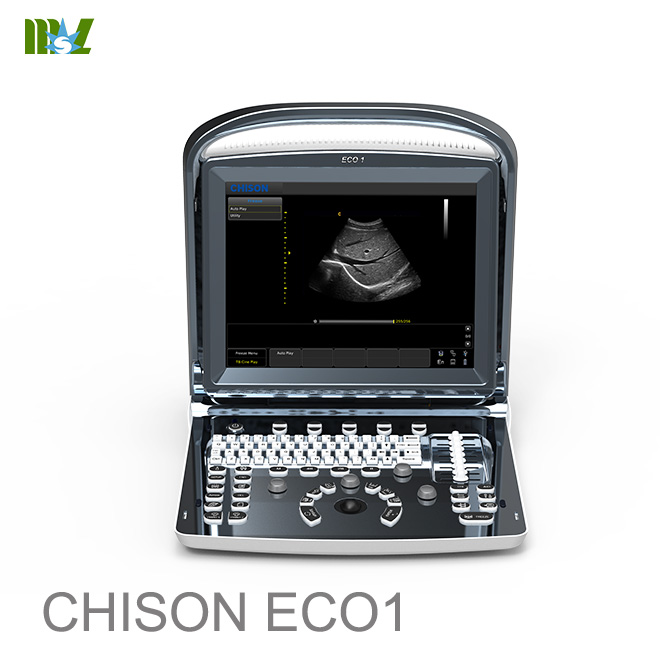

Ultrasonido (ecografo) abdominal imaging : chison eco 1 approved FDA Chison ECO 1

Ultrasonido (ecografo) abdominal imaging : chison eco 1 approved FDA

Una ecografía abdominal es un examen imagenológico. Se utiliza para ver los órganos internos en el abdomen, como el hígado, la vesícula biliar, el bazo, el páncreas y los riñones. Los vasos sanguíneos que van a algunos de estos órganos, como la vena cava inferior y la aorta, también se pueden examinar con ultrasonido.

Ultrasonido (ecografo) abdominal imaging : chison eco 1 Advanced Technologies

SRA is the technique that uses a variety of denoising algorithm to suppress speckle, smooth the tissue images,and

make the faint edge more appearing.

Applications: Abdominal , OB/GYN , Urology, Pediatric;Small Organ(breast, testes, thyroid); Cardiac , Peripheral Vascular, Musculo-skeletal Conventional & Superficial

Display  Modes:B, B/B, 4B, M, B/M

Zoom: PIP zoom & pan zoom

Advanced  Technologies: THI,i-Image,SRA,Compound

Option: 2nd Probe connector , DICOM 3.0, Water-proof keyboard cover, Carrying Case (BG-100 ),  Support PC Printer, TR-9000 , Built-in battery

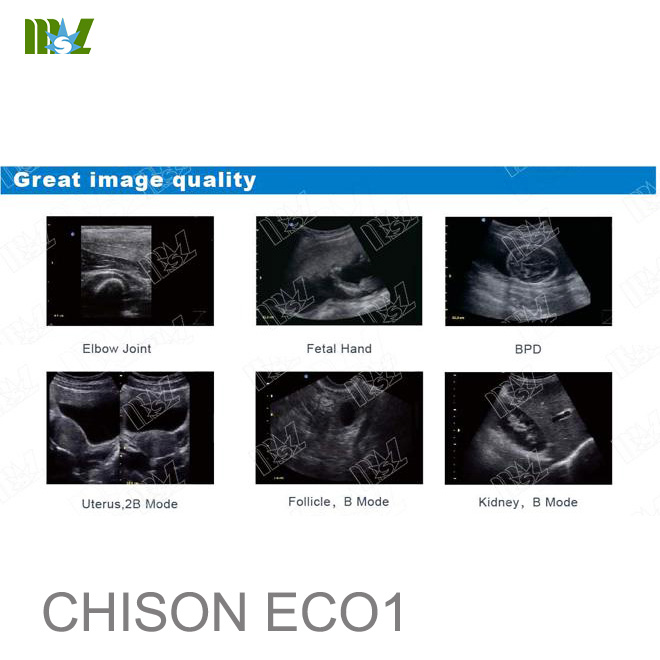

Ultrasonido (ecografo) abdominal imaging : chison eco 1 CLINIC VALUE AND APPLICATIONS

Ultrasonido (ecografo) abdominal imaging : chison eco 1 Frequent Question and Answer

Q1:Why ECO?

A: echography, eco-friendly, economic, ergonomic.

Q2: How much does ECO1 weigh? (with battery, without battery ,with probe, without probe, with adapter, without adapter)

A:

main unit without battery—6.0kg With battery(0.5kg) — 6.5kg

with battery(0.5kg) & one probe(0.5kg)—–7.0kg.

with battery(0.5kg) & one probe(0.5kg) and adapter — 7.5kg

Q3:Does ECO1 have FDA, CE certificate?

A: YES, ECO1 has been approved of FDA & CE.

Q4:How many probes ECO1 can support? What are they? For which application?

A:

L7M-A —–7.5Mhz linear probe, Vascular, MSK, small parts, Nerve

L7S-A ——  9.0Mhz linear probe, Vascular, MSK, small parts, Nerve

C3-A  ——- 3.5Mhz convex probe, ABD, OB/GYN, URO

MC3-A——-3.0Mhz micro-convex,  cardiac ,abdomen, Emergency

MC6-A——-6.0Mhz micro-convex,  ABD, Neonatal (Pediatrics)

MC5V-A——5.0Mhz micro-convex, ABD(Pediatrics)

V6-A ——–6.0Mhz transvaginal probe, OB/GYN, URO

R7-A–7.0Mhz trans-rectal probe, URO（prostate, bladder）

Q5:how many biopsy kits does ECO1 support? What are they? For which probe?

A:

4 kinds of probes.

biopsy kit—-probe

BC04-A —– C3-A

BL03-A —– L7M-A

BT03-A —– V6-A

BC06-A —– MC3-A

Q6: how long it will take to turn on the system? Turn off the system?

A: turn on the system 55s, turn off the system 2s

Q7:How long is the battery life? How long it will take to charge the battery?(system off, system on)

A: 150mins battery time. (2.5hrs)

System off—-

4h

System on—-

5~6h

Q8:What is ECO1 capacity memory?(standard, optional)

A: Standard 8G

Q9:how many images that ECO1 can save? What about cine movie(256frames)?

A: 8G memory, for images(2.25MB) is about 3640, for cine loop(256 frames) is about 102.

Q10:what kind of printer that ECO1 can support?

A: PC printer:

hp1102, hp M251n, HP-2055D, HP M252n, HP M252dw, HP 6230

Video printer: SONY-UP897MD, 895MD,711MD, MISUBISHI P-93W

Q11:what kind of image format that ECO1 can save? Is it possible to view the image directly on the PC?

A: bmp, jpg, DCM, It can view from the PC directly

Q12:What kind of movie format that ECO1 can save? Is it possible to view the cine movie directly on the PC?

A: AVI, it can see the video directly on the PC.

Q13: what kind of DICOM function that ECO1 have? How does it work for each function?

A: Storage, worklist , print, structure report. One key to transfer the image and cine loop, 40s to transfer one cine after freeze , 1 minute and 30s to transfer in real time, during that time, also can do other operations.

Q14:what kind of video printer that ECO1 can support? How does it connect to ECO1?

A: by connect to the video port, ECO1 can support SONY-UP 895MD/897MD, MISUBISHI P93W;

By connect to the USB port, ECO1 can support UP-711MD

SONY UP898MD is also can be used in PC and video.

Q16:what kind of accessories that ECO1 can support, except printer? Please write down the name?

A: trolley TR9000&TR8000; Biopsy kit; foot-switch; Travel bag: BG100

Q17:how many languages does ECO1 have? What are they?

A: English, Russian, German, French, Italian, Spanish, Turkish, Czech Chinese，Portuguese (Newly added）

Q18:what is the standard configuration of the ECO1?

A: without battery, one probe connecter, 8G flash memory, THI, SRA, compound, i-image, and one probe;

Q19:what is the warranty of ECO1, including the main unit and probes?

A: one year, including main unit & probe

Q20:what is the maximum frequency of linear probe?

A: the maximum of linear probe(L7M-A) is 10MHz, the maximum of linear probe(L7S-A) is 11MHZ

Q21: what is the size of the ECO1 with package? What is the weight of the ECO1 with package?

A: Size: 0.47×0.34×0.52（M）=0.08M3

Weight：11kg

Q22: what is the size of TR-9000 with package? What is the weight of the TR-9000 with package?

A: Size: 0.78×0.66×0.37（M）=0.19M3

Weight：22.5kg
