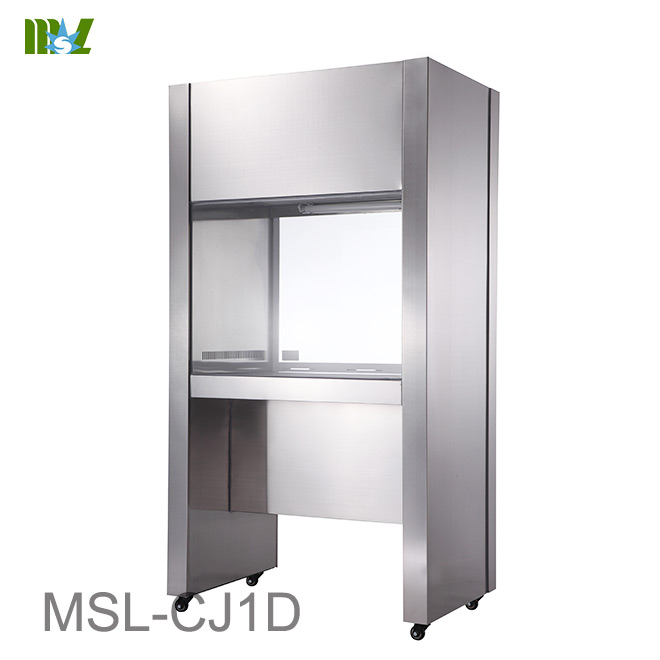

Vertical laminar air flow definition MSL-CJ1D

Model MSL-CJ1D

Item Single/Single, Vertical Laminar Flow

Cleanliness Class 100 (Fed 209E)

No. of Colony Dish(φ90)·H

Air Velocity 0.25~0.45m/s （Adjustable）

Noise ≤62dB(A)

Vibration half peak ≤0.5μM (x.y.z)

Illumination ≥300Lx

Power Supply AC 220V/50Hz

Power Supply <130W

Weight <100kg

Size & No. of Light or UV Lamp 15w*1 / 15w*1

Working Dim.(W*D*H) 700*500*500mm

Overall Dim.(W*D*H) 850*580*1600mm

Size of HEPA 695*455*50mm

No. of Operator Single/Single

Other Items User Guide, Certificate, Warranty Card, Power Line, Remote Control

Vertical laminar air flow definition MSL-CJ1D

Characteristics

Cleanliness under Class 100 (Fed 209E)

Stainless steel shell and work zone

Portable, compact and flexible design

High quality HEPA filter

Sliding door system with patent technology free to place

Stainless steel worktable easy to clean

Light system and sterilizing installed

Wireless remote control installed easy to operate

Air Volume adjustable system with high efficiency and low consumption
