2. System Overview

2.1 Applications

* Abdominal

* Vascular

* Cardiac

* GYN/OB

* Urology

* Musculo-skeletal

* Small organ

* Pediatric

* Cephalic

* Fetal

* Trans-rectal

* Trans-vaginal

2.2 Standard Features

2.2.1 Imaging Modes

* B-Mode (B)

* Tissue Harmonic Imaging (THI)

* Pure Inversion Harmonic Imaging (PIH)

* M-Mode (M)

2.2.2 Functions

* 2D Speckle Reduction & Edge Enhanced (2D μ-scan)

* Spatial Compound Imaging (SCI)

* 2D steer

* Dual Live

* Auto (One button optimization for 2D/M/CW/ PW)

* Image Rotation Function

* Auto IMT measurement

* TEI index

* Standby mode

* Biopsy guide

* Full screen zoom

* Show gallery

* DICOM 3.0:

*

2.3 Optional Features

* PW Mode

* VIS-Needle (Needle Visualization Enhancement)

* Panoramic Imaging (Real-time 2D)



E1 Technical Specifications

901-03134-A01

* Lateral Gain Compensating (LGC)

* PW auto trace

* Trapezoid imaging

* Wi-Fi (DICOM)

* Duplex

* Convex extended imaging

* B Mode Prospective Saving

2.4 Language Support

* Software: English, Simple Chinese, Spanish, Russian, French, German, Portuguese, Italian, Norwegian

Keyboard Input:

Danish, Swedish, Finnish, Portuguese, German, Spanish, French, Portuguese, Turkish.



Additional Requirement: Russia.

3. Physical Specification

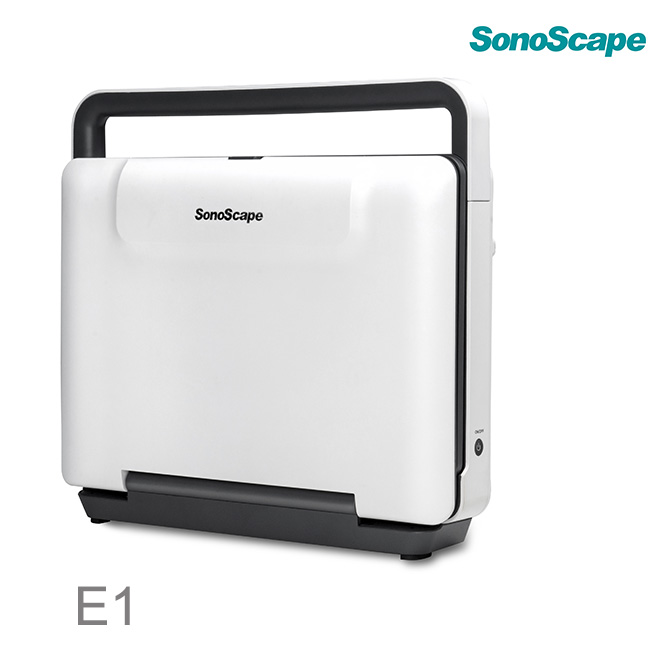

3.1 Dimensions and Weight

* Height: 352mm

* Width: 378mm

* Depth: 114mm

* Weight: approx. 6.1kg (without battery) approx. 6.5kg (with battery)

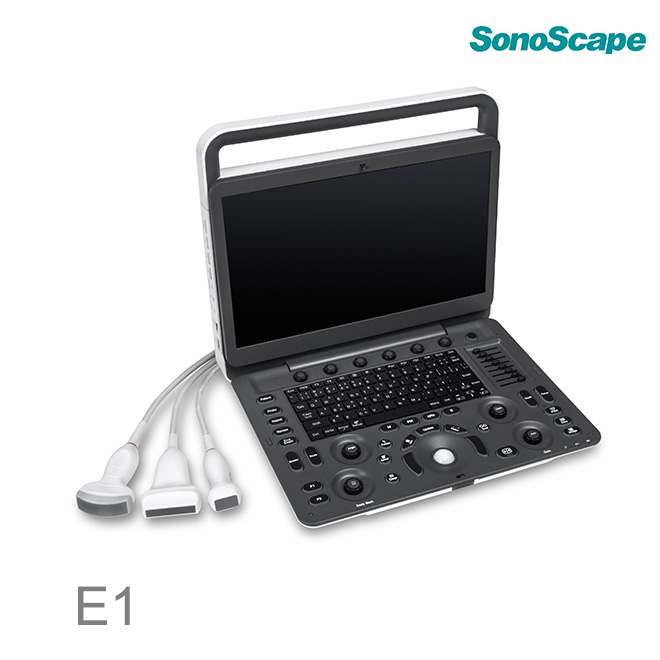

3.2 Monitor

* 15.6-inch widescreen and high resolution color

LCD monitor

* Resolution: 1920*1080

* Anti-flickering

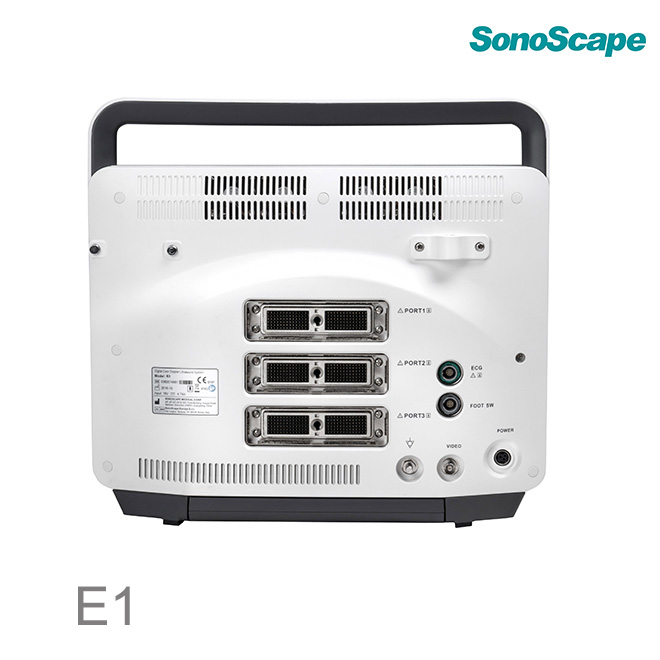

3.3 Probe Sockets and Holders

* Probe Sockets:2 probe sockets （only 1 active for standard）and 3 holders

3.4 Operation Environment

* Temperature: +10°C-+40°C

* Relative Humidity: 30% -85% (no condensation)

* Atmospheric Pressure: 700-1060hPa

3.5 Transportation and Storage

Environment

* Temperature: -20°C – +55°C

* Relative Humidity: 20%-90% (no condensation)

* Atmospheric pressure: 700-1060hPa

3.6 Power Supply

* AC/DC Adaptor:

* Input: 100-240Va.c., 1.5-0.75A, 50-60Hz;

* Output: 19Vd.c., 4.74A

* Main unit: 19Vd.c., 4.74A

4. Imaging Parameters

4.1 B-Mode

* Display Format: B, Dual (B+B), Quad (4B)

* Gain: 1-255 adjustable

* Frame Rate: up to 60 fps (Probe dependent)

* Gray Shades: 256

* Scan Depth: 30.0 cm (Probe dependent)

* Image Zoom (Ratio: 0.8-10 times)

* TGC: 8-level slides, adjustable

* LGC Left & LGC Right: adjustable

* Image Flip: Left/ Right, Up/Down

* Panoramic: available

* Compound Imaging: Off, 1, 2, 3,4 (Probe dependent)

* PHI/THI: On/Off

* Frequency: 5 bands, adjustable



E1 Technical Specifications

901-03134-A01

* Chroma: 12 types, selectable

* μ-Scan: Off,1,2,3,4,5 adjustable

* Line Density: 3 levels, adjustable (High/Medium/Low)

* Persist: Off, Low, Med, High, Max 4 levels , adjustable

* Biopsy Guide: Off/On (preset adjustable)

* Dot Size (Min, Med, Max) 3 level adjustable

* Biopsy Calibration

* Angle adjustable

* Offset adjustable

* Save

* Load Default

* Dynamic Range (DYN): 20-200 (Probe dependent)

* Gray Map: 16 levels, selectable (Probe dependent)

* Sector Width: adjustable

* Focus Position: adjustable

* Focus area 1 -16

* Power%: 1-100 adjustable, 5 step each

* Tissue Specific Imaging (TSI): Adipose, Muscle, Fluid, Normal tissue

* Widescan: Off/On

* Steer: 0, ±2°, ± 4°, ±6° degrees, adjustable

* Rotation: Off/ 90°/ 180°/ 270°

* Vis-Needle

* On/Off

* Steer Angle

* Dual Live: On/Off

* Auto (One-button B-mode Parameter Optimization)

4.2 M-Mode

* Frequency: 5 levels, adjustable

* Gray Map: 16 types, selectable

* Chroma: 12 types, selectable

* Display Format: V2/1, V1/1, V1/2, H1/1, Full

* Sweep Speed: 5 levels adjustable for M mode (Min/ Slow/ Med/ Fast/ Max)

* Power%: 1-100, adjustable

* Focus area：1-16 levels, adjustable (Probe Dependent)

* Persist: Low, Med, High, Max 4 levels, adjustable

* Power:1-100%, selectable

4.3 PW Mode

* Doppler Methods

* PW Doppler

* Simult: On/Off

* Sample Volume (PW): 0.5-24.0 mm, adjustable

* Position: adjustable

* Invert: On/Off

* Quick Angle: 0°, 60°, -60°, adjustable

* θ Correction: θ angle correction: -88° to 88°, 2° steps each

* (Real-time) Auto Trace: On/Off

* Baseline: 9 levels, adjustable

* Frequency: 3 levels, adjustable

* Wall Filter: 5 levels, Min, Low, Med, High, Max, adjustable

* PRF: 1-16 kHz (PW) (Probe dependent)

* Max Velocity Range

* ±0.0576 – ±6.14m/s (PW) (probe dependent, sampling angle range: ±60°)

* Sweep Speed: 5 levels, adjustable (Min/ Slow/ Med/ Fast/ Max)

* Chroma: 12 types, selectable

* Display Format: V2/1, V1/1, V1/2, H1/1, Full,

* Steer: 4 levels: 0°, ± 8°,± 12°, ± 16°, adjustable

* Volume: 0-100, 5 each step, adjustable

* Power:1-100%

* Auto (One-button Parameter Optimization)

* Baseline

* PRF

E1 Technical Specifications

901-03134-A01

5. System Setting

5.1 General

5.1.1 General Settings

* Hospital Name

* Freeze Response: Cine, Annot, Body mark, Arrow

* Trackball Sensitivity: 1, 2, 3, 4, 5

* Language: English, Simplified Chinese, Spanish, Russian, French, Italian, Germany, Norwegian，Portuguese

* Time Zone

* Date/Time Setting

* Date Format: MM/DD/YYYY, YYYY/MM/DD, DD/MM/YYYY, selectable

* Time Format: 12 Hour, 24 Hour, selectable

5.1.2 Display

* Screen Saver: On/ Off

* Screen Saver wait (min): 5-60 minutes

* Auto standby wait (min): 20-90 minutes

* Key Volume: On/Off

* Keyboard & Monitor Brightness

* Monitor Colors: Warm/Cool

* Width Ruler: On/Off

* Trackball Light Color: 6 types

* Show Gallery

* Config.: Top, up, down, bottom

* Play Interval:1-5 seconds, selectable

* Import

* Delete

* Load Default

* Exit

5.1.3 Save

* Retrospective store

* Prospective store

* Freeze Store

* Save Format/Area

* Cine Format: AVI, WMV

* Image Format: BMP, JPG, TIF

* Area: Full Screen, Image Area, Image area+InfoBar

* Save Operation

* Send image to DICOM storage

* Send cine to DICOM storage

* Key Function

* P1,P2,F3,F4, Cine

5.1.4 Biopsy

* Biopsy Guide Line

* Bracket

* Guide line type: Line, Range

* Guide line display: On/Off

* DICOM Print

* Biopsy Grid

* Biopsy Grid Display Style: +/.

* Biopsy Grid Display Color: Green/Yellow

5.2 Exam Preset

* Probe Selection Available Items

Selected Items

5.3 Comment

5.3.1 Tools

* Annotation

* Select annotation Language

* Font size

* Clear annotation while unfreezing image

* Arrow

E1 Technical Specifications

901-03134-A01

* Arrow size: Large/Medium/Small

* Clear arrow while unfreezing image: On/Off

* Set Home (5 options)

5.3.2 List

* Classified by specific exams: Abdomen,

Obstetrics, Gynecology, Vascular, Breast,

Cardiology, Urology, Small parts, Musculoskeletal

* Edit comment item

* Add to Library

* Delete

* Selected (Comment List):

* To first

* Previous

* Next

* To Last

5.4 Bodymark

* Classified by specific exams: Abdomen,

Obstetrics, Gynecology, Vascular, Breast,

Cardiology, Urology, Small Parts, Musculoskeletal

5.5 Measure

5.5.1 General

* BSA (Body Surface Area): Eastern, Western

* Cross Cursor Size: Small, Medium, Large,

selectable

* Measure Line Size: Small, Medium, Large

* Distance Dash Line Display: On/ Off

* Velocity Cross Line Display: On/ Off

* Ellipse Cross Line Display: On/ Off

* Volume Flow Method: TAmean/TAmax

* Volume Flow compensation with TAmax： 0.5 –

1.0

* Keep Result Window : On/ Off

* Result Font Color: White/Yellow

* Result Position:

* 2D: Right Top, Right Bottom, Left Top, Left

Bottom, selectable

* M+D: Right Top, Right Bottom, Left Top,

Left Bottom, selectable

5.5.2 Application

* Auto/ Manual Trace: Abdomen, Urology, Small

Parts, Gynecology, Obstetrics, Vascular, Cardiac,

selectable

* Num 0-9: Editable shortcut keys of measurement

(OB/GYN//Cardiac)

* Measurement Setting (OB)

* CUA/AUA

* Add 1 week to EDD (Yes/ No)

* Show EDD on screen (Yes/ No)

* Growth Deviation Display: No, %, SD,

selectable

* Equation (OB)

* GA & Growth (New Table): New GA Table,

New Growth Table

* Fetal Weight: Estimation, Age by EFW,

EFW GP/SD, Unit

* CUA

* Equation (SMP)

* Thyroid (Volume) Calculation Coefficient: 0.52

(US). 0.479 (EURO), selectable

* Load default

5.5.3 List

For editing measure lists classified into different applications, categories and modes.

* Application: Abdomen, Urology, Small parts, Gynecology, Obstetrics, Vascular, Cardiology, Pediatrics, selectable

E1 Technical Specifications

901-03134-A01

* Measurement Categories: Caliper, Calculation, selectable

* Mode: B, Color, M, Doppler, selectable

* List (items): Category, Collection, Measurement

* Measurement (Adjust Position): Add, Delete, Reorder

* Load default

5.6 Report

* Logo

* Operation LOGO: Upload logo

* Left/Right: Choose logo

* Title/Font/Color:

* Title 1/ Title 2/ Title 3

* Title 1/ Title 2/ Title 3/ Title/

SubTitle/Content

Font Size: 14-26, adjustable, 2 each step

* Content Font Size: 12-16,adjustable, 1 each step

* Background Color: Basic Colors (48 types),

Screen Color

* Text Color: Basic Colors (48 types), Screen Color

* Display Items for Report:

* Patient Information

* Exam Information

* Measurements (selectable)

* Image (selectable): 1*1, 2*2, 3*3, selectable

* Graphs (selectable)

* Comment (selectable)

* Preview

5.7 Peripheral

5.7.1 Basics

* Video output

* Area: Picture

area/FullScreen/Info+PictureArea

* CVBS/S-VIDEO: NTSC/PAL/Close

* HDMI: Close/1920*1080

* Printer

* Default Printer: USB Printer/Windows

Printer

* Printer IP Address

* Printer Port Number

* Foot Switch

* Left/Right Key

5.7.2 Network

* Local Network

* DHCP/Static IP

* DHCP: MAC Address

* Static IP: IP Address, Netmask, Default

Gateway, Mac Address

* Ping IP Address

* Wireless Network (Enable/Disable):

* List (Name, State, Level)

* Connect

* Disconnect

* Refresh

* Advance (Advanced Setting)

* Network Name

* Signal Level

* Encryption

* DHCP/Static IP (IP Address, Netmask,

Default Gateway)

5.8 DICOM

5.8.1 Local Setting

* Local Device

E1 Technical Specifications

901-03134-A01

* Station Name

* AE Title

* Port Number

* Timeout(sec)

* Storage Setting:

* 2D Compression:None/RLE/JPEG

* 2D JPEG Quality

* Cine Compression:None/RLE/JPEG

* Cine JPEG Quality

* Send at end of exam: On/Off

5.8.2 DICOM Service

* Service List:

* Service Type

* Service Name

* AE Title

* IP Address

* Port

5.9 Help

* User manual

5.10 Load Default

5.10.1 Load

5.10.2 New:

* StoreName

* Replace

* New

5.10.3 Export/Import:

* USB Drive

* Copy user setting to USB

* Copy user preset to USB

* Load USB user setting to system

* Load USB user preset to system

* Export Log

5.10 About

* General: System information

6. Display Formats

* B + B

* 4B

* B+M

* B+PW

7. Connections

7.1 Ethernet Network

7.2 USB

* USB 2.0: 3 ports

7.3 Wireless Network

7.4 DICOM 3.0

* Storage: directly transmits images with patient

information to a DICOM file server

* Medical digital images and communication

DICOM 3.0 interface

8. Optional Transducers

* 8.1 Linear probes

* L741

Frequency: 4.0 – 16.0MHz

* 10I2

Frequency: 4.0 – 16.0MHz

* L746

E1 Technical Specifications

901-03134-A01

Frequency: 4.0 – 12.0MHz

* Convex probes

* 6V1

Frequency: 3.0 – 15.0MHz

* C361

Frequency: 2.0 – 6.0MHz

* C613

Frequency: 4.0 – 13.0MHz

* EC9-5

Frequency: 3.0 – 15.0MHz

9. Safety and Conformance

9.1 Quality Standard

* ISO 9001

* ISO 13485

9.2 Safety Standard

Comply with IEC 60601-1, Class I BF,

Comply with IEC 60601-1-2, Group 1, Class B

Comply with IEC 60601-2-37

9.3 Certification

FDA & CE: E1 Digital Color Doppler Ultrasound

System is conferred the FDA certification by the

Food and Drug Administration.

10. Image/  Patient  Data

Management

* Static and Dynamic image storage

* Support review of past exam by clipboard

* Patient Registration: Name, ID, Gender, Date of Birth, Height, Weight, LMP, EDD and GA.

* Patient data and reports are archived by patient exams

* Reports and images can be previewed

* Preview size can be set to 1*1, 2*2,

* File can be previewed, deleted, used for DICOM

Send and DICOM Print or exported

* Files can be exported to the USB drive or DVD. BMP, JPG, TIF, AVI, WMV, PDF, TXT are selectable for export format

E2 Technical Specification V1.0

Page 11 of 12

11. Preset Function

* Users can customize the presets based on different probe and diagnostic part to optimize imaging parameters

* Users can arrange the presets

Users can import or export presets (not including default preset) S50 Technical Specifications

Page 12 of 12

NOTE:

*  Sonoscape reserves the rights to change the specifications without prior

notification.

*  Some products or features may not be available in some countries.

*  For more information, please contact your local SonoScape sales representative.
