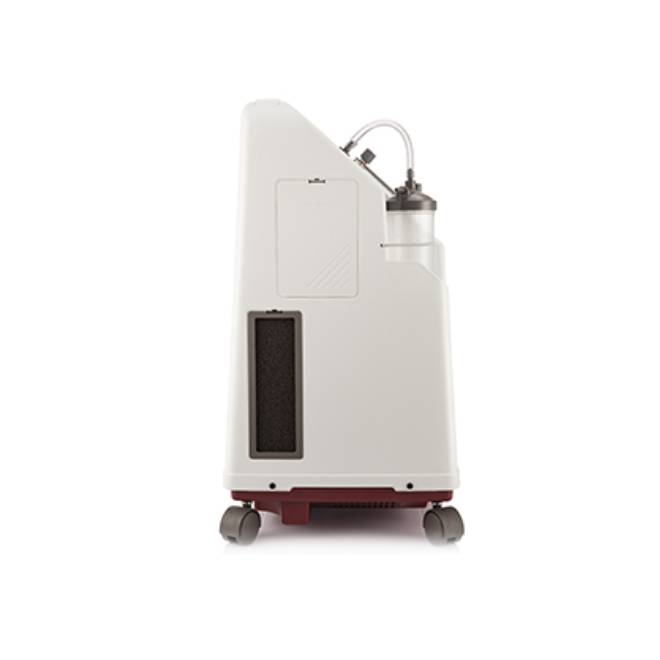

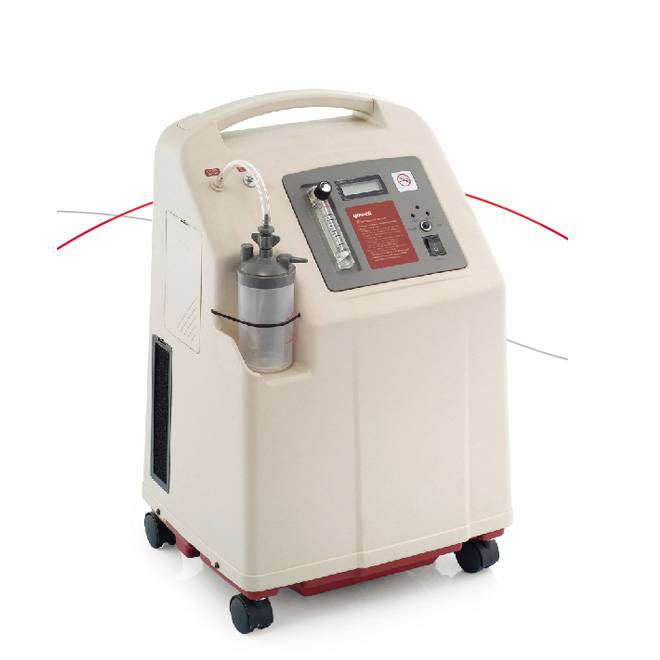

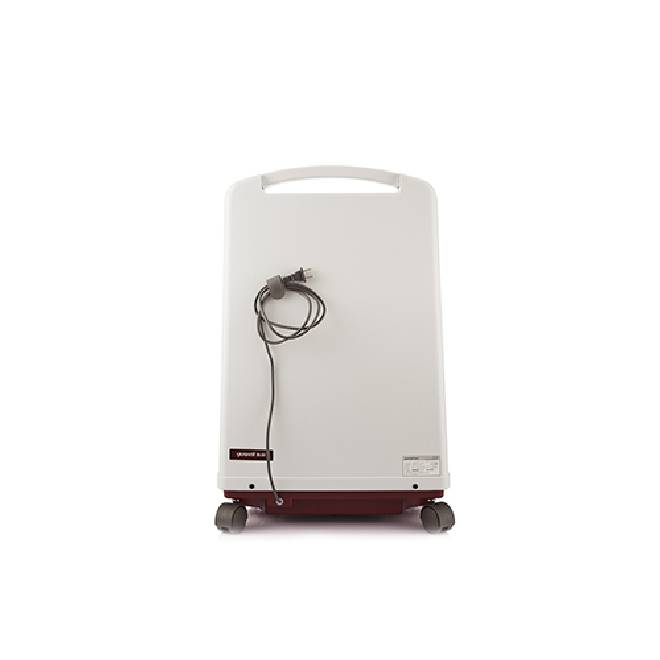

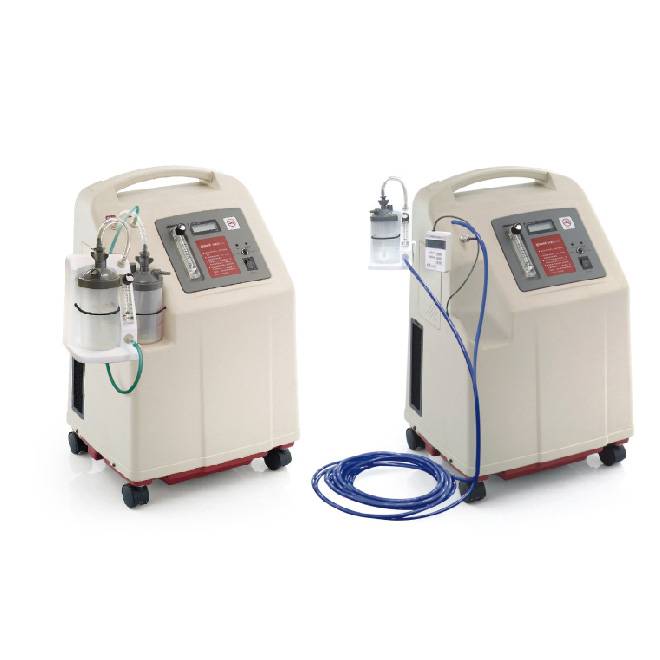

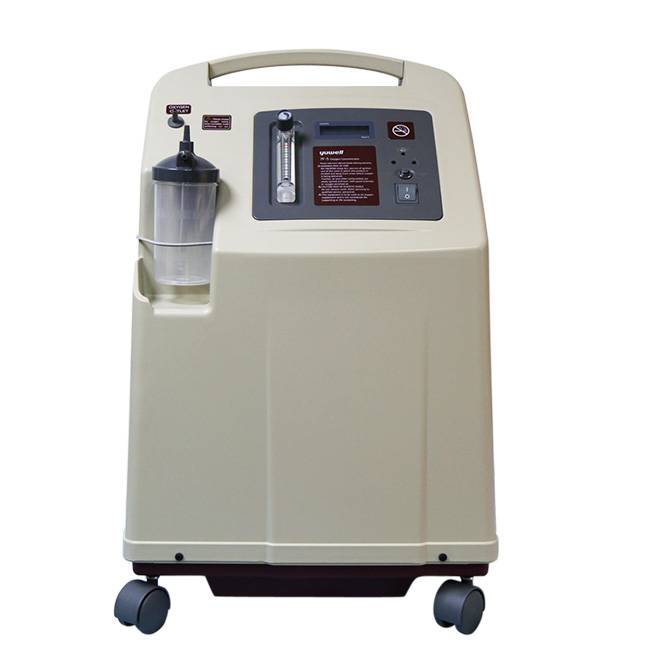

Yuwell 7F-10 Home Use oxygen concentrator machine

Healthcare oxygen concentrator machine 7F-10 STRUCTURE

Yuwell 7F-10 Home Use oxygen concentrator machine

The product is mainly composed of oxygen making host, flow meter,humidifier.

Safety plastic shell.

With time collect function: Display the operation time in LCD.

High and low pressure alarm function.

Power loss alarm function.

Fault self-detection system(Include pressure fault, system cycle fault,

compressor fault, low oxygen concentration detection function.).

The compressor with thermal protector guarantee better security.

oxygen concentrator machine 7F-10 SPECIFICATIONS

Yuwell 7F-10 Home Use oxygen concentrator machine

1. Maximum recommended flow:

7F-5: 5L/min, 7F-8 : 8L/min, 7F-10 : 10L /min

2. Flow Range:

7F-5 : 1~5L/min,7F-8 : 1~8L/min, 7F-10 : 1~10L/min,

3. Change in maximum recommended flow when back pressure of

7kPa is applied: 0.5L/min

4. Oxygen Concentration: 95.5% ~ 87%

5. Maximum Outlet Pressure:

7F-5/8 : 45kPa土4.5kPa(6.52psi土0.65psi),

7F-10 : 62kPa土4.5kPa(8.99psi土0.65psi),

6. Pressure Relief Mechanism Operational at:

250kPa土25kPa (36.25psi 土3.63psi)

7. Noise:≤60dB(A),
